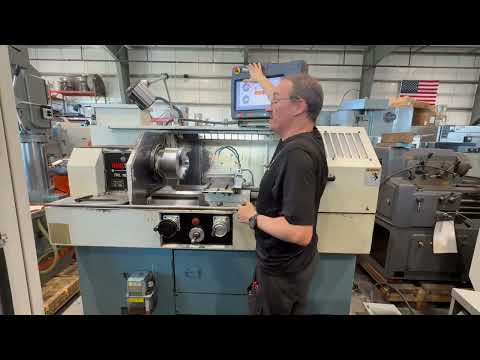

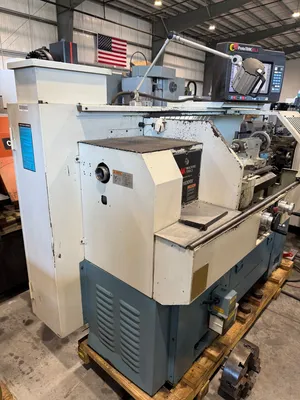

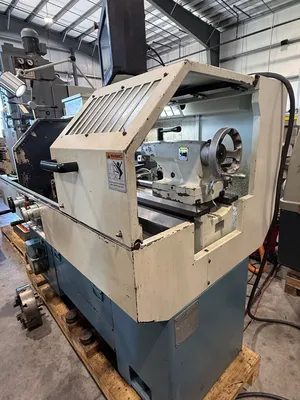

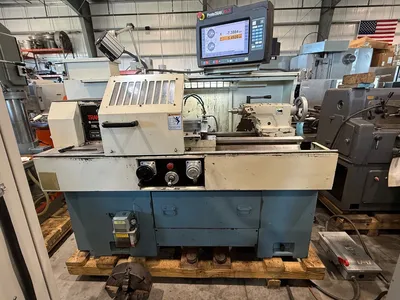

SWI TRAK 1630RX CNC Toolroom Lathe ProtoTRAK RLX Control 2019’ #7798
Have one to sell?
ConditionUsed
1 available
$32,500.00 USD
SWI TRAK 1630RX CNC Toolroom Lathe ProtoTRAK RLX Control 2019’ #7798
SWI TRAK 1630RX CNC Toolroom Lathe ProtoTRAK RLX Control 2019’ #7798
Reference #7798

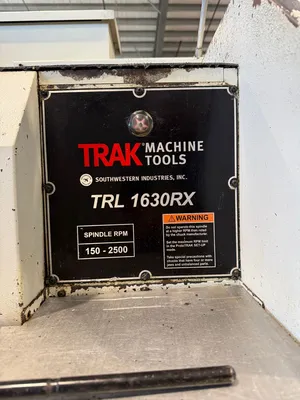

Model # 1630RX
Serial # 192EE622
Height of centers- 8”
Distance between centers- 30”
Swing over the bed- 16”
Swing over the saddle wings- 16”
Swing over cross slide- 8.6”

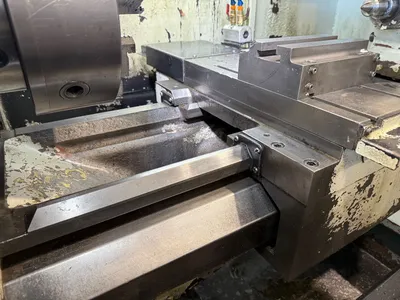

Cross slide travel- 8.5”
X axis rapids- 200 I.P.M.
Z axis rapids- 400 I.P.M.
Bed width- 12.6”
Spindle nose- D1-6
Spindle through hole- 2.12”
Spindle speeds-150 -2,500 R.P.M.

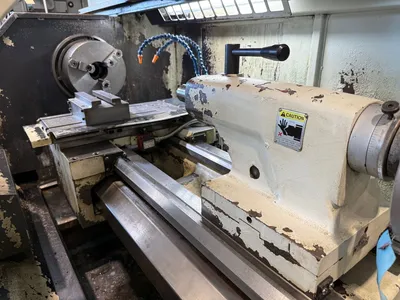

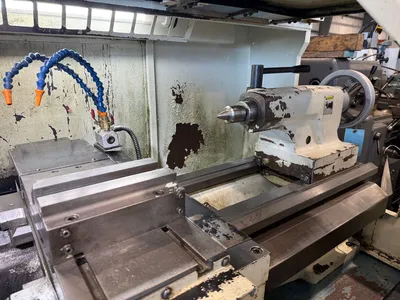

Tailstock quill travel- 5.75”
Tailstock quill diameter- 2.36”
Tailstock quill taper-#4 Morse

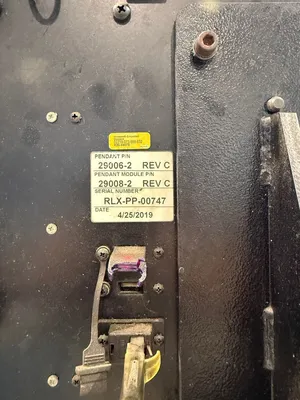

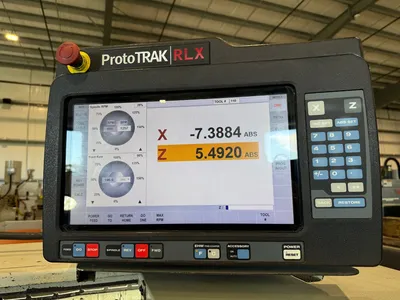

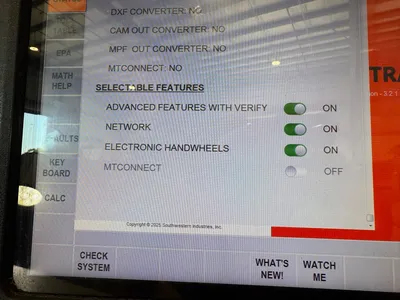

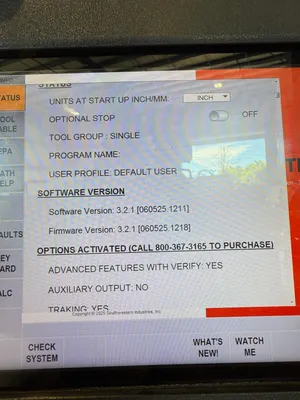

SWI TRAK RLX CNC Touch Screen Control- advanced features, Network, Electronic handwheels

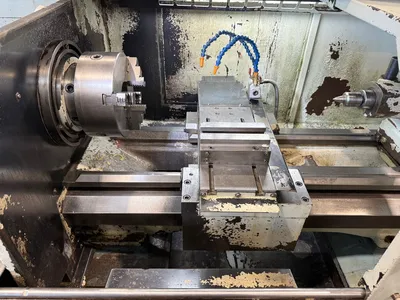

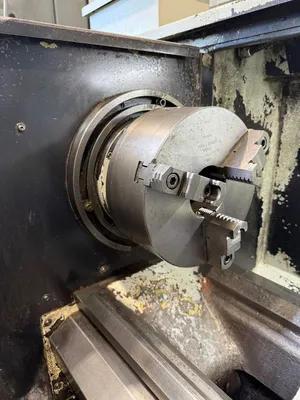

10” Bison 3 Jaw chuck

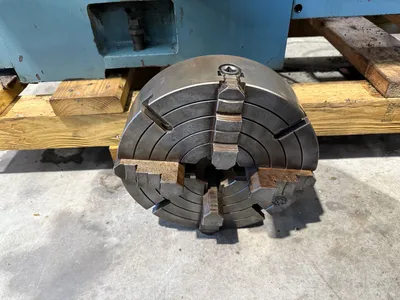

12” 4 Jaw chuck
Automatic lubrication system
7.5 H.P. Spindle motor
Machine is wired for 208 volt / 3 phase / 60 H.Z.
Machine weight- 3,450 Lbs.
Machine dimensions- 82” x 45” x 72”
Machine location- Sarasota, Florida
