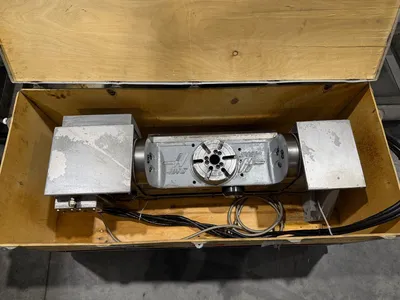

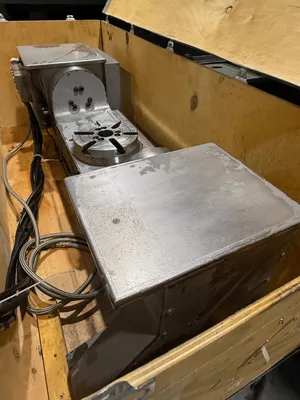

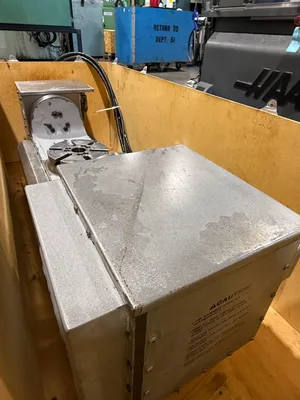

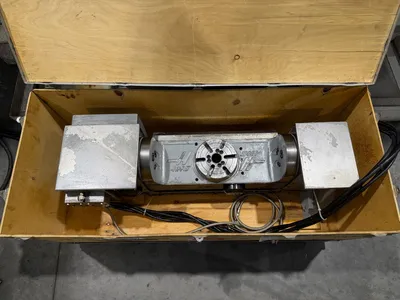

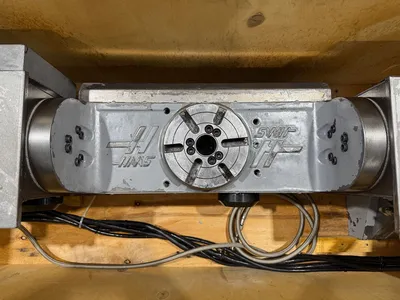

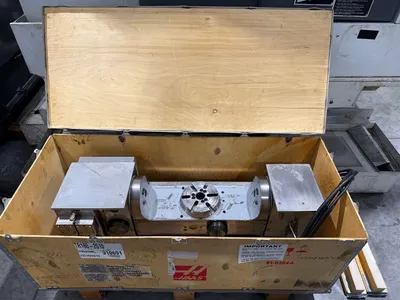

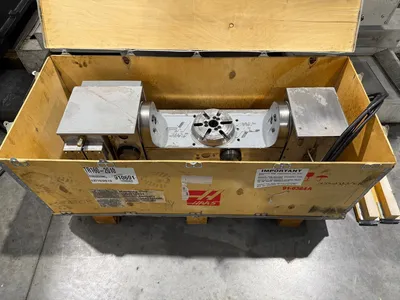

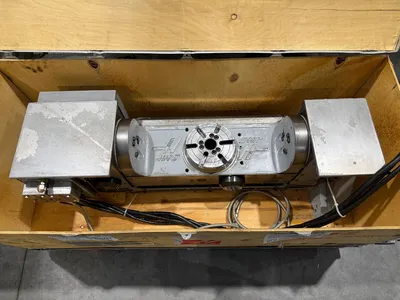

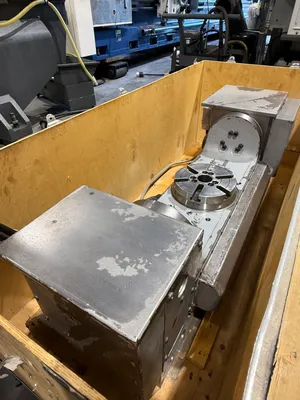

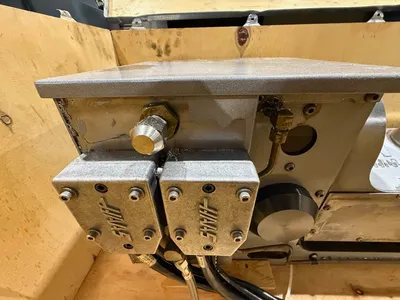

HAAS STR160 2 Axis CNC Rotary Table Trunnion Type 2007’ USA #7801

HAAS STR160 2 Axis CNC Rotary Table Trunnion Type 2007’ USA #7801
Reference #7801
Model # STR160H
Serial # 901605
Year of manufacture- 2007’
Platter diameter- 6.3”
Max weight on Platter- 80 Lbs.
Part swing max- 17.5”

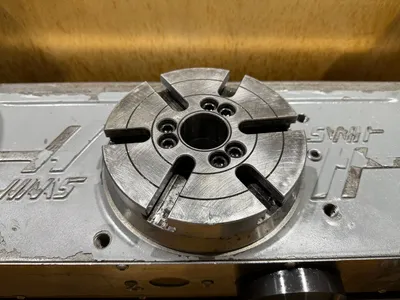

Number of T-Slots- (6) @ 60°
Tilt A Axis
Max speed- 80° / sec
Max torque- 150 ft/lbf
Backlash- 30 arc / sec
Gear ratio- 63:1
Timing- 2:1
Brake torque @ 100 PSI- 200 ft/lbf
Max rotation / step- +/- 120°
Resolution- 0.001°
Accuracy- +/- 15 arc/sec
Repeatability- 10 arc/sec
Rotary B axis
Max speed- 80° / sec
Max torque- 100 ft/lbf
Runout max- 0.0005’’
Backlash- 30 arc / sec
Gear ratio- 63:1
Timing- 2:1
Brake torque @ 100 PSI- 100 ft/lbf
Max rotation / step- 999.999°
Resolution- 0.001°
Accuracy- +/- 15arc/sec
Repeatability- 10 arc/sec
