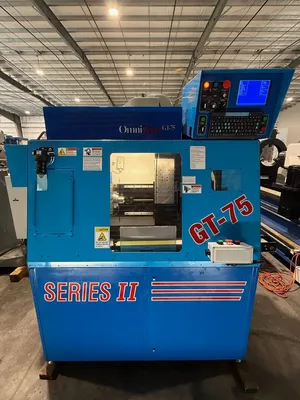

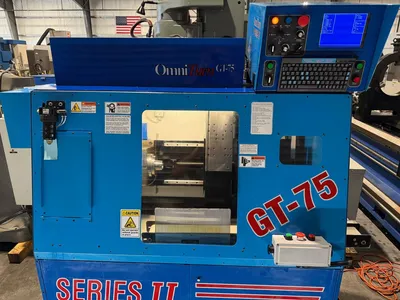

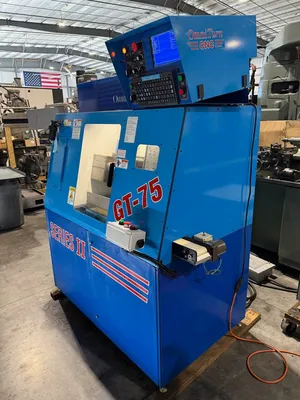

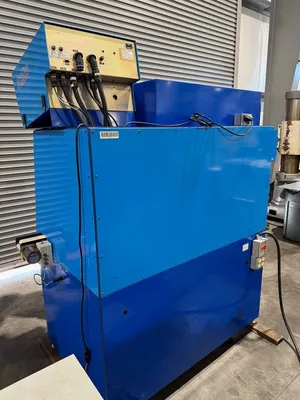

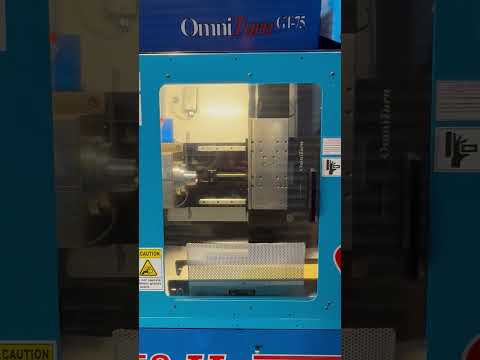

OMNITURN GT-75 Series II CNC Gang Lathe 2018’ #7836
Have one to sell?
$39,500.00 USD
ConditionUsed
1 available
OMNITURN GT-75 Series II CNC Gang Lathe 2018’ #7836
OMNITURN GT-75 Series II CNC Gang Lathe 2018’ #7836
Reference # 7836
Model # GT-75 Series II
Serial # 4951G4P
Year of manufacture- 2018’
Maximum turning diameter- 6”
X-axis travel- 12’’
Z-axis travel- 9’’
Rapid traverse rate- 300 I.P.M.
Tooling height- ½”

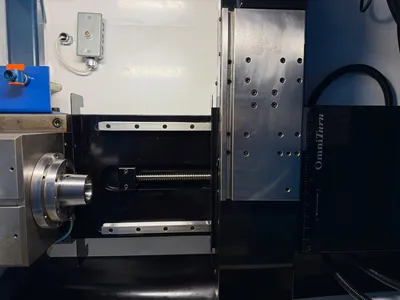

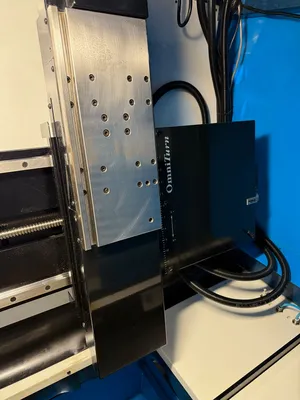

Tooling plate size- 6” x 14”

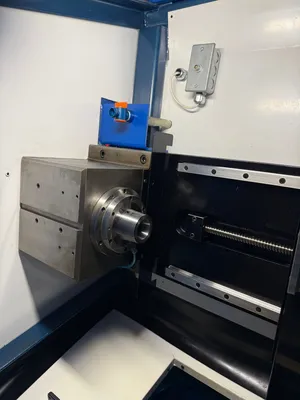

Collet taper- 5-C
Bar capacity-1-1/16”
Spindle nose- 4° can nose
Spindle speed range- 10 – 4,000 R.P.M.
Spindle programming- R.P.M. or C.S.F.
Thread range (R.H., L.H., Interenal, External, Inch, Metric, Tapered, Multi start)- 2-180 T.P.I.

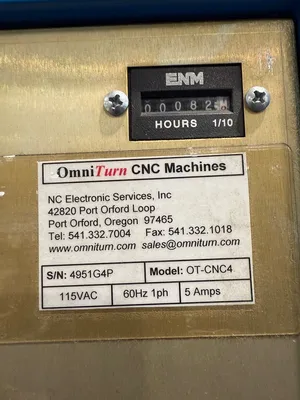

Machine hours- 82 (came out of a medical part mfg.)
#G4 OMNI TURN PC based two-axis CNC & slide, RS-232 port, USB
Parts conveyor option

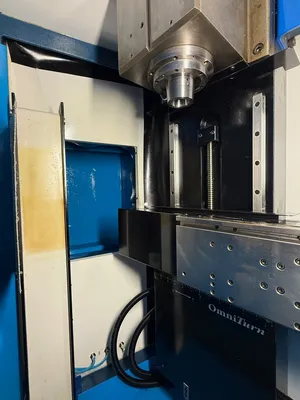

Pneumatic collet drawbar with regulator (M function controlled)

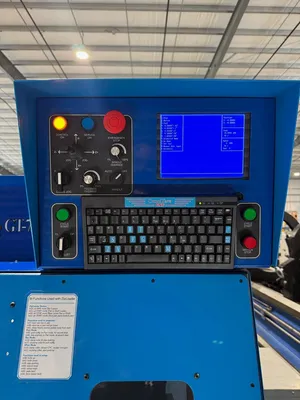

Operator station with dual palm cycle start buttons, collet control, and emergency stop
Spindle encoder for threading and IPR programing
Work light
Self-contained flood coolant system (M function controlled)

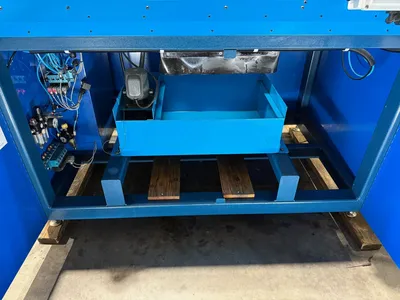

Removable chip pan

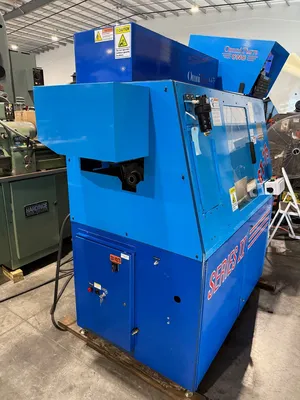

Complete enclosure
AC inverter drive for spindle
5 H.P. drive motor and electrical controls
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 2000 Lbs.
Machine dimensions- 58” L x 36” W x 76” H
Machine location- F.O.B. Sarasota, Florida
