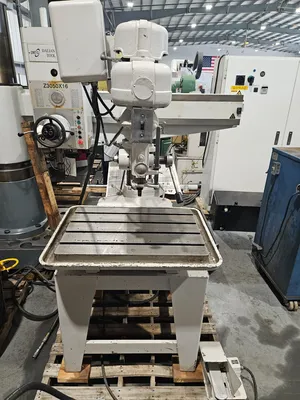

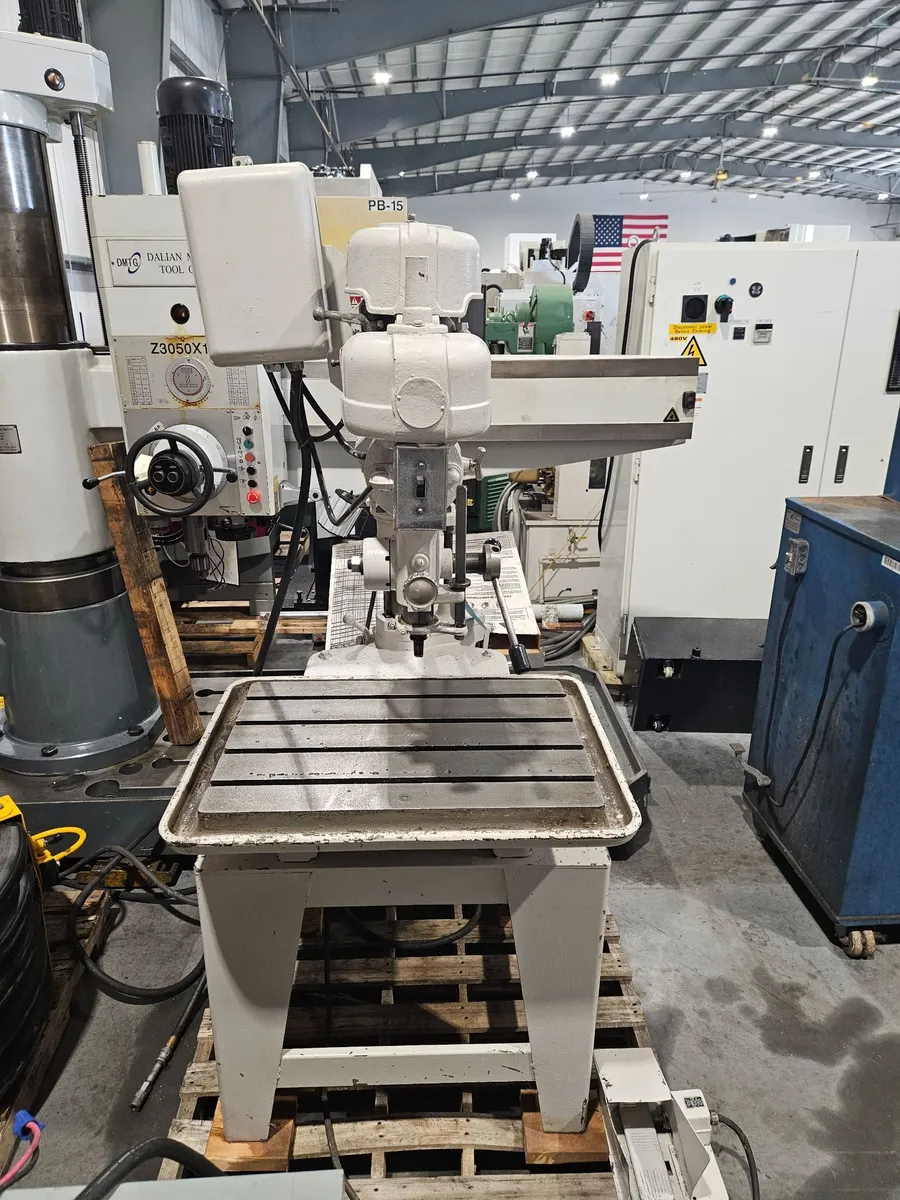

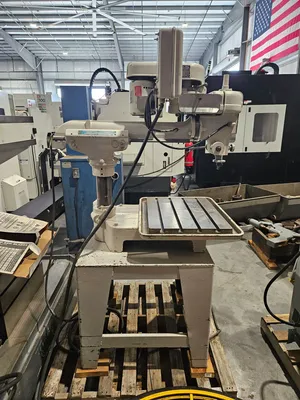

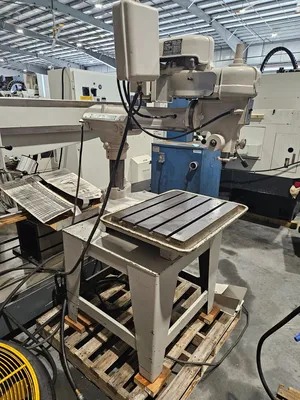

ROCKWELL 15-120 Ram-Type Radial Arm Drill Press & Tapping Foot Pedal #7843
Have one to sell?
$2,450.00 USD
ConditionUsed
1 available
ROCKWELL 15-120 Ram-Type Radial Arm Drill Press & Tapping Foot Pedal #7843
ROCKWELL 15-120 Ram-Type Radial Arm Drill Press & Tapping Foot Pedal #7843

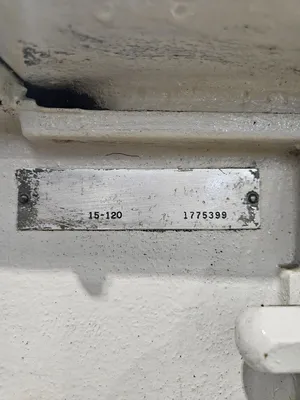

Model #15-120
Serial #1775399

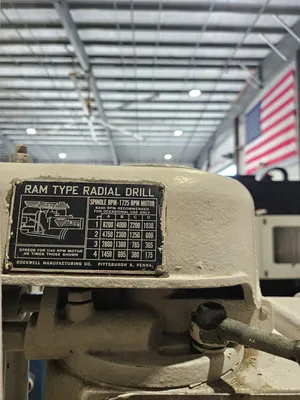

Spindle Speed - 175-8,200 RPM
Column Diameter - 3 3/4"
Bed Height - 34 3/4"

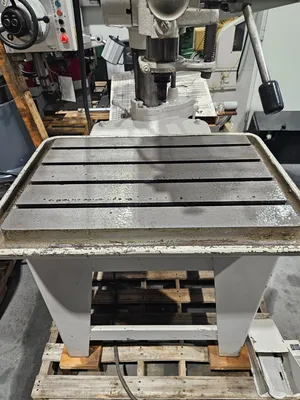

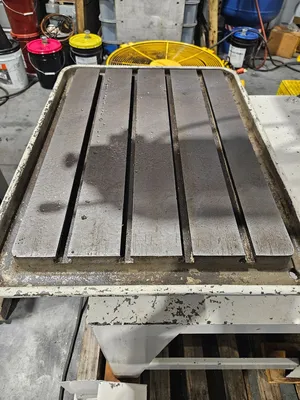

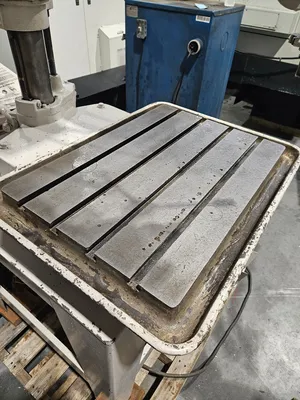

Overall Table Size - 30 7/8" x 22 7/8"
Table Work Size - 26" x 18"
Drilling Capacity - 1/2" Cast Iron - 3/8" Steel

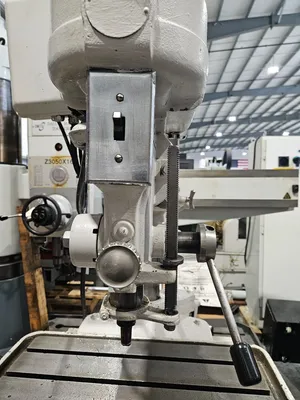

Quill Stroke - 6"
Quill Diameter - 1 13/16"
Column to Spindle Minimum to Maximum - 13"-31"
Spindle Nose to Table - 2 5/8" - 13 1/8"
Vertical Travel of Head Using Raising Mechanism - 10"
Overall Head Tilt 90° (45° Left & 45° Right)

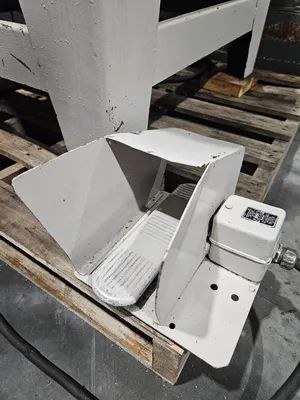

Tapping Foot Pedal

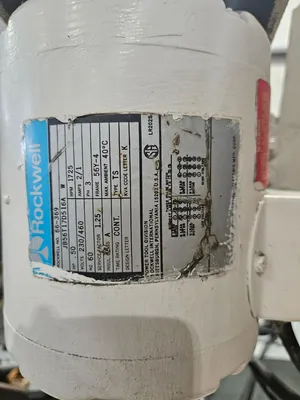

1/2 H.P. 230 / 460 volt 3 phase / 60 H.Z.
Machine wired for 230 volt
Machine weight- 800Lbs.
Machine dimensions- 58” x 33” x 74” H
Machine location- Sarasota, Florida
