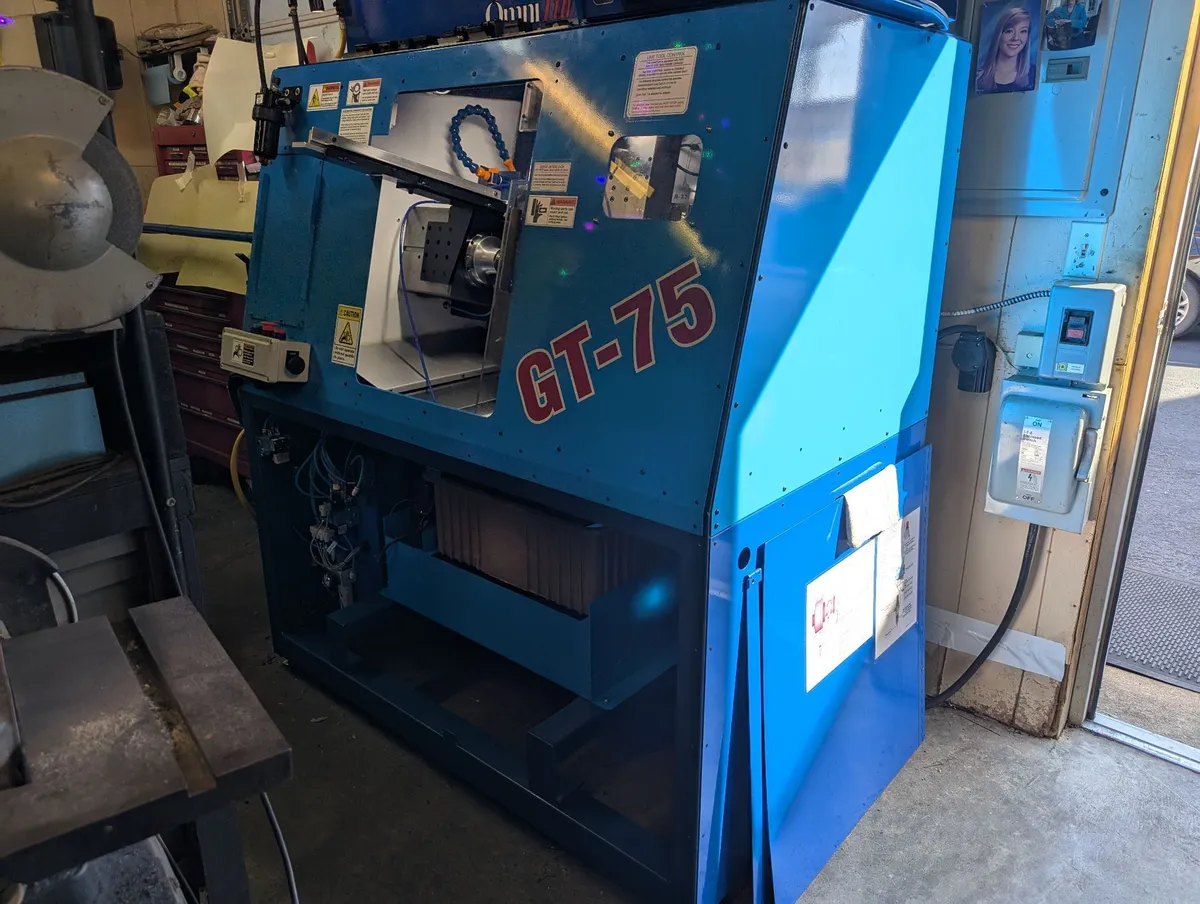

OMNITURN GT-75 Series III CNC Gang Lathe 2023’ C axis #7847
Have one to sell?
$43,000.00 USD
ConditionUsed
1 available
OMNITURN GT-75 Series III CNC Gang Lathe 2023’ C axis #7847
OMNITURN GT-75 Series III CNC Gang Lathe 2023’ C axis #7847
Reference # 7847
Model # GT-75 Series III
Year of manufacture- 2023’
Maximum turning diameter- 6”
X-axis travel- 12’’
Z-axis travel- 9’’
Rapid traverse rate- 300 I.P.M.

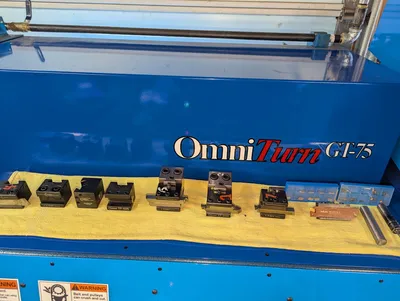

Tooling height- ½”

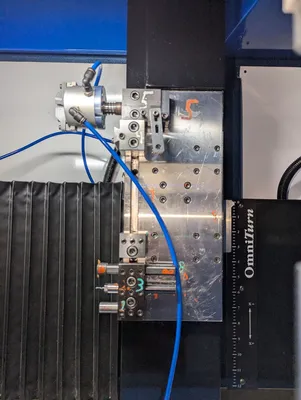

Tooling plate size- 6” x 14”
Collet taper- 5-C
Bar capacity-1-1/16”
Spindle nose- 4° can nose
Spindle speed range- 10 – 4,000 R.P.M.
Spindle programming- R.P.M. or C.S.F.
Thread range (R.H., L.H., Interenal, External, Inch, Metric, Tapered, Multi start)- 2-180 T.P.I.
***Seller will disconnect, Prepare and load free of charge***
Machines comes with 4 hours of factory training virtually
Machine hours- 485 Hours
C axis option

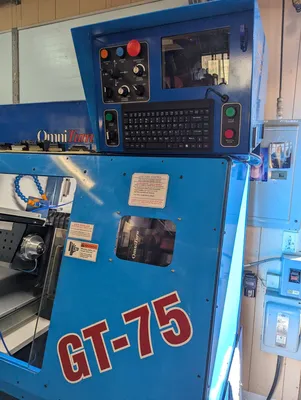

#G4 OMNI TURN PC based two-axis CNC & slide, RS-232 port, USB

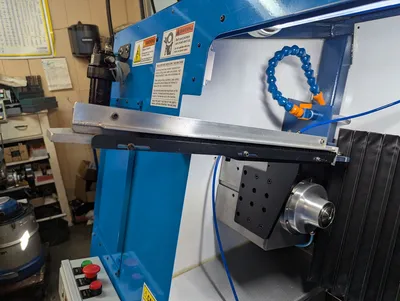

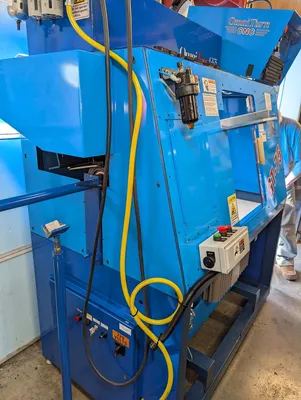

Pneumatic collet drawbar with regulator (M function controlled)

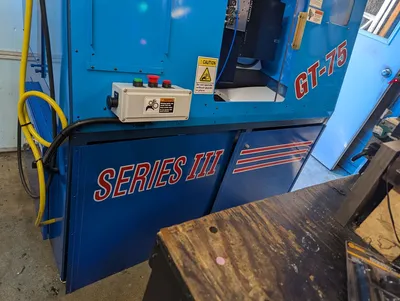

Operator station with dual palm cycle start buttons, collet control, and emergency stop
Spindle encoder for threading and IPR programing
Work light
Self-contained flood coolant system (M function controlled) Never used
Bar tube .825” capacity

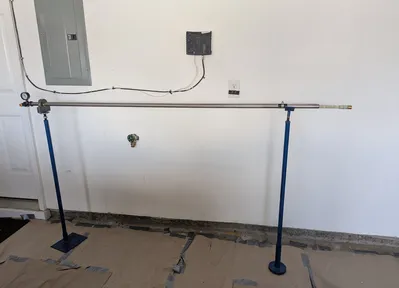

Simple rack loader

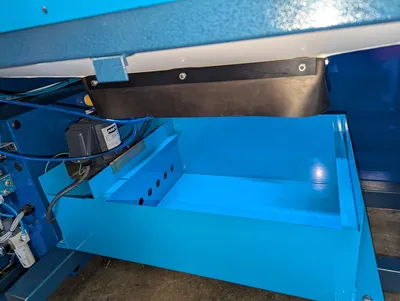

Removable chip pan
Complete enclosure
AC inverter drive for spindle
5 H.P. drive motor and electrical controls
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 2000 Lbs.
Machine dimensions- 58” L x 36” W x 76” H
Machine location- F.O.B. Nashville, Tennessee
