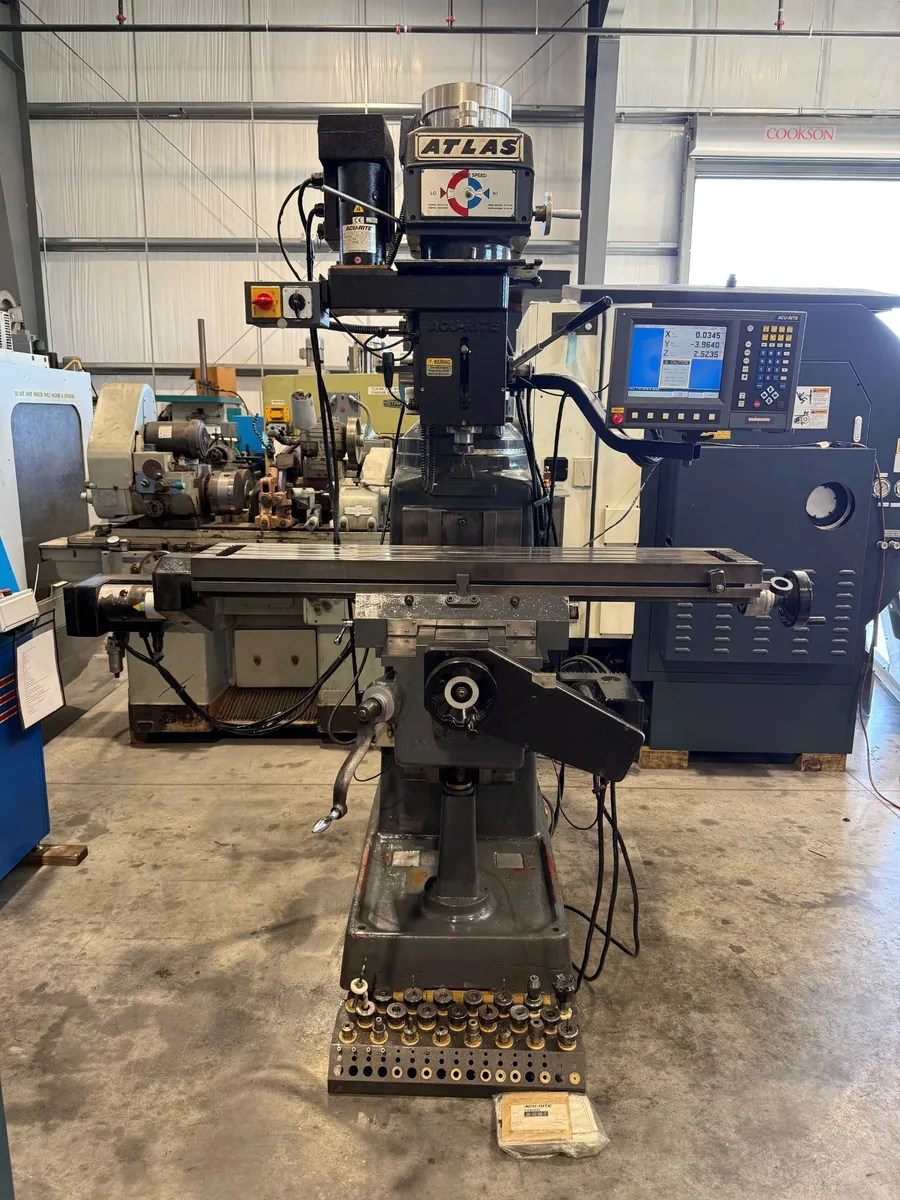

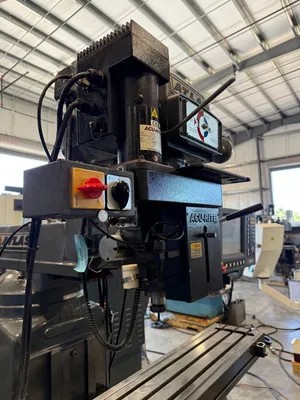

ATLAS CLAUSING 3VS08 CNC 3 axis Vertical Milling Machine MILLPWR #7849

ATLAS CLAUSING 3VS08 CNC 3 axis Vertical Milling Machine MILLPWR #7849
Reference #7849
Model # 3VS08
Serial # 2001111
Year of manufacture- 2000’
Table size- 10” x 54”
Number of T-slots- 3
T-slot width- 5/8”
Travels-
X axis- 39.6”
Y axis- 15.6”
Knee- 15”
Ram- 22”
Spindle travel- 5”
Spindle speeds- Low range 60 – 500 R.P.M. / High range 550-4300 R.P.M.
Spindle taper- R-8
Quill feeds- (3) .0015 / .0031 / .006
Quill diameter- 3.38”
Max table load- 665 Lbs.
Column diameter- 14.96”
Knee width-11.81”
Column bearing length- 16.83”
Saddle / table bearing length- 19.88”
Ram / turret bearing length- 17.51”
Ram length- 32.75”
