| Swing | 11" | 279.4 mm |
| Chuck Size | 4" | 101.6 mm |
| Bar Capacity | 1" | 25.4 mm |
| Power | 5 hp | 3.7 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Dimensions | 60” x 65” x 80” H | 60” x 65” x 80” H |
| Weight | 1950 Lbs. | 1950 Lbs. |

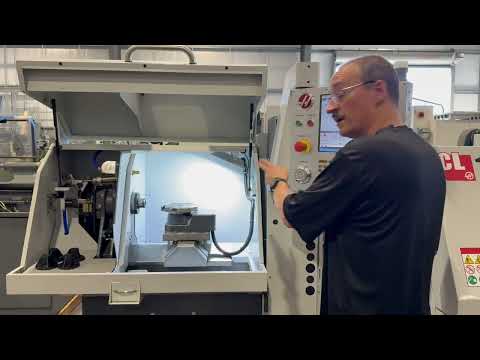

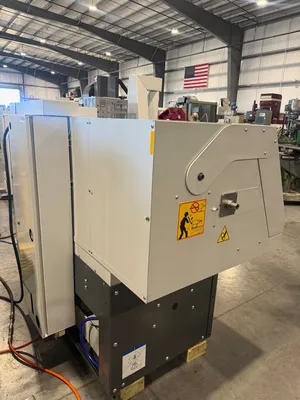

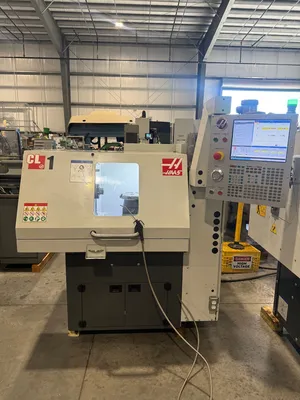

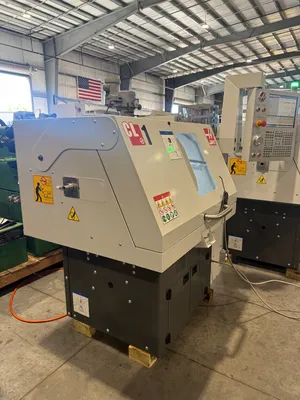

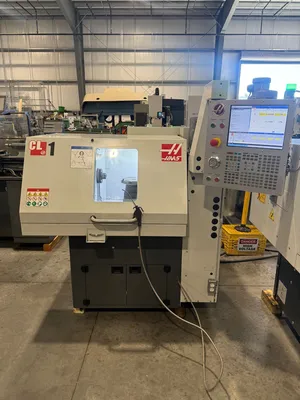

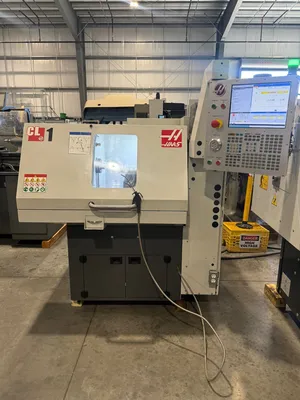

HAAS CL-1 CNC LATHE 5-C 8 Position Turret 2019’ USA #7868
Reference #7868

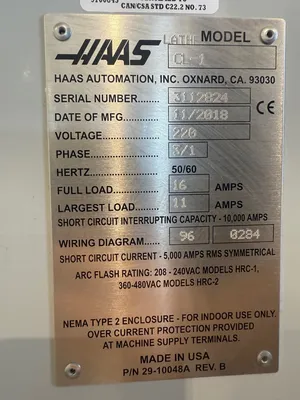

Model # CL-1
Serial # 3112824
Year of manufacture- 11/2018’ Delivered in 2019’
Swing over cross slide- 11”
Swing over table- 4.95”
Max chuck size- 4”
Max cutting diameter- 4.95”
Bar capacity- 1”
Spindle bore- 1.25”
X axis travel- 12”
Z axis travel- 8”
Max cutting- 500 I.P.M.
Rapids on X & Z- 757 I.P.M.
Max thrust X & Z- 1149 L.B.F.

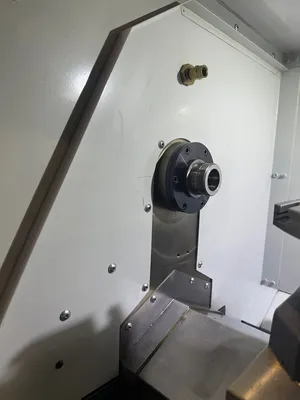

Spindle nose- 5-C
Spindle speed- 6,000 R.P.M.
Nose thread- 2-13/16” x 10

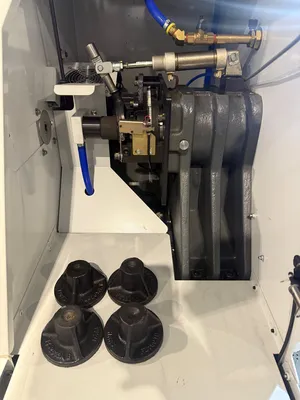

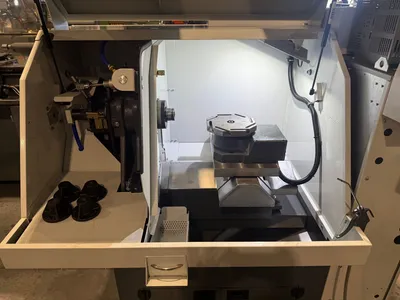

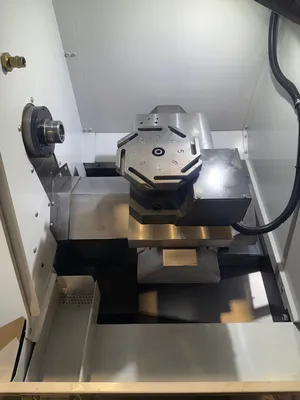

Turret- 8 position

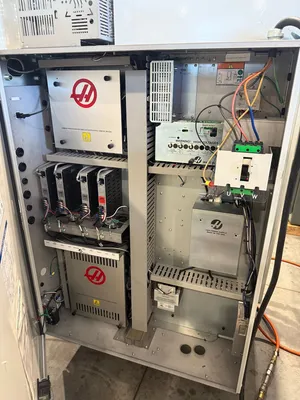

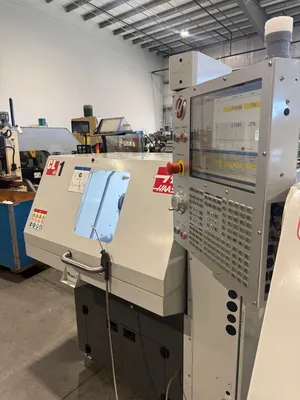

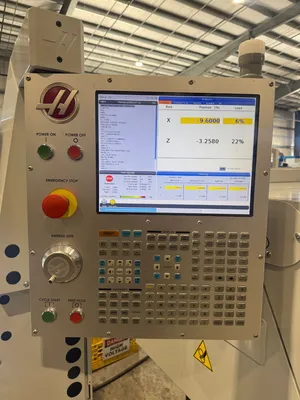

Haas CNC Control with USB
Machine hours- Power on- 9,115, Cycle start time- 3,658 , Feed cutting time- 633
Control options- Macros, Rigid Tapping, M19 Spindle orient, Media display, Max memory 1 GB, Compensation tables

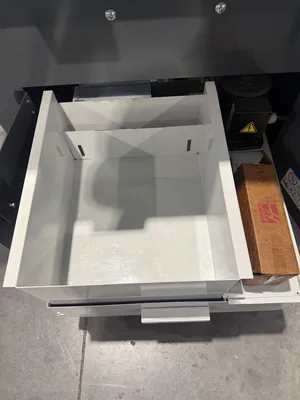

Coolant tank & Pump
Leveling pads
5 H.P. spindle
Machine is wired for single phase or three phase 220 volt
Machine weight- 1950 Lbs.
Machine dimensions- 60” x 65” x 80” H
Machine location- F.O.B. Sarasota, Florida
