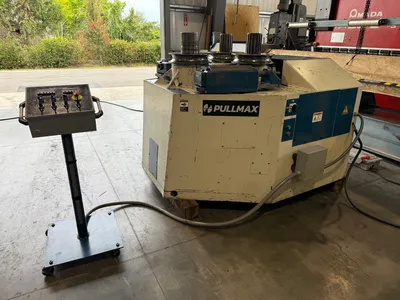

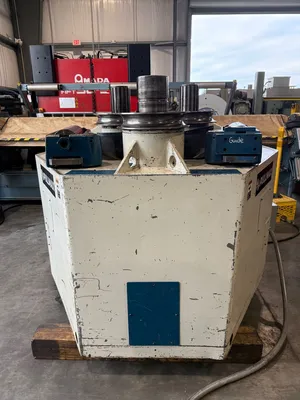

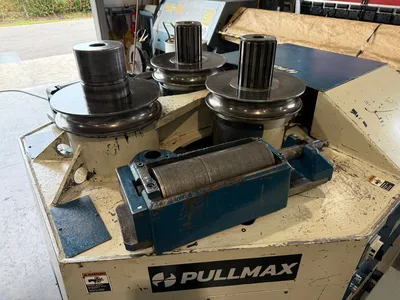

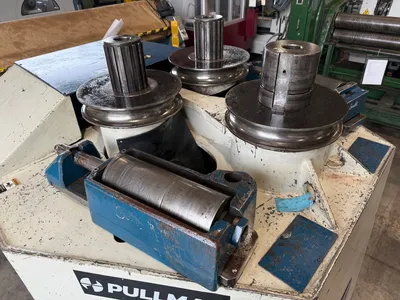

PULLMAX Z-41 5” x 5” x ½” Hydraulic Angle Roll #7939

PULLMAX Z-41 5” x 5” x ½” Hydraulic Angle Roll #7939
Reference # 7939
Model # Z-41
Bending roll speed- 7.2 R.P.M.
Diameter of bending roll- 15-3/4”
Feed speed- 29 F.P.M.
Bending capacity-
• Capacity- Angle Leg Out Max: 5” X 5” X ½” to 63” Diameter
• Angle Leg Out Min: 1-¾” X 1-¾” X ¼” to 32” ¬¬-Diameter
• Angle Leg In Max: 4” X 4” X ⅝” to 60” Diameter
• Angle Leg In Min: 1-¾” X 1-¾” X ¼” 36” Diameter
• Tee Leg Out Max: ST 5WF 30 LBS to 60”
• Tee Leg Out Min: 1-¼” X 1-¼” X ¼” to 18” Diameter
• Tee Leg In Max: ST 5WF 30 LBS to 60”
• Flat Bar On Edge: 5” X ¾” to 50” Diameter
• Flat Bar On Flat: 8” X 1-½” to 32” Diameter
• Square Bar: 2-¾” X 2-¾” to 40”
• Round Bar: 3” to 30” Diameter
• Round Pipe: 4” Sch 40 to 50”
• I – Beam on Web: 10” X 4” to 70” Diameter
• I – Beam on Flange: 4” X 2-⅝” to 140” Diameter
• Channel Flange Out: 10” X 2-⅝” to 70” Diameter
• Channel Flange In: 10” X 2-⅝” to 70” Diameter
• Channel Flange Up: 5” X 1-¾” to 140” Diameter
