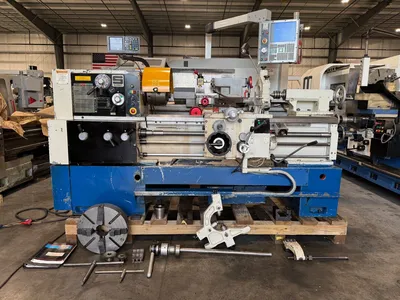

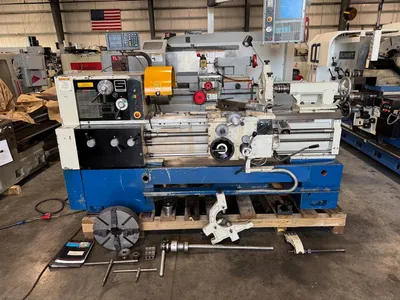

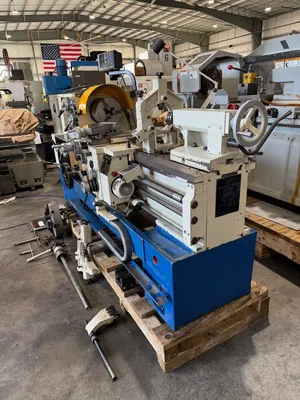

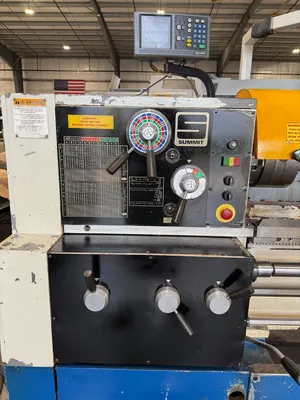

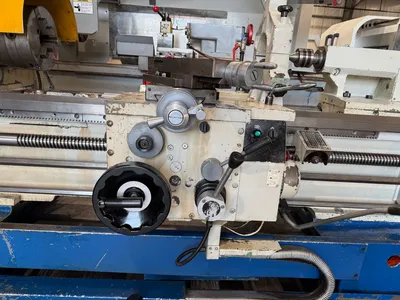

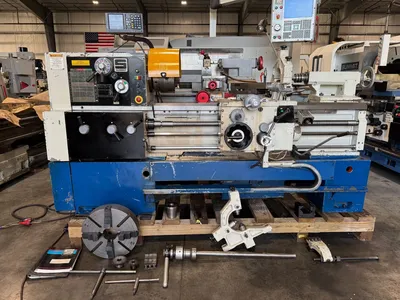

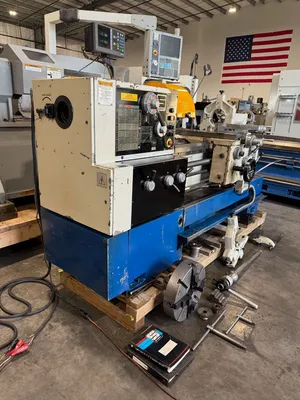

SUMMIT 16x40B 18”/25” x 40”cc Engine Lathe DRO #7951
Reference #7951
Model # 16x40B
Serial # 30957
Swing over bed- 18”
Swing in Gap- 25-1/8”
Swing over cross slide- 9-3/8”
Cross slide travel- 11-3/8”
Bed width- 15-3/4”
Spindle taper- D1-8
Spindle bore- 3”
Spindle speeds- (21) 20 – 2,000 R.P.M.
Tailstock taper- #5 Morse
Tailstock quill travel- 9-1/2”
Inch threads- (64) .25 – 60 T.P.I.
MM threads-(64) 1/4” – 60mm

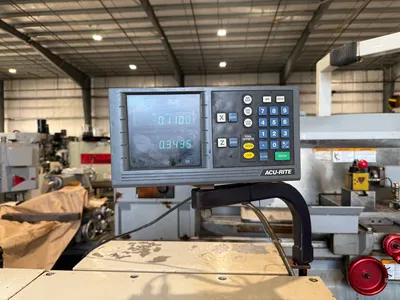

2 Axis ACURITE DRO Digital Read Out

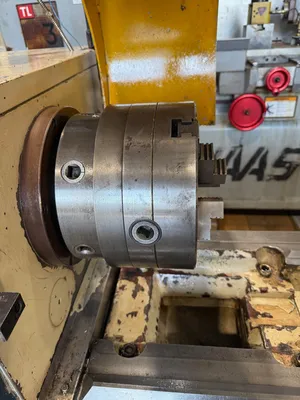

10” 3 jaw chuck “Adjust Tru” Type
16” 4 Jaw Chuck
5-C Draw bar
Live center

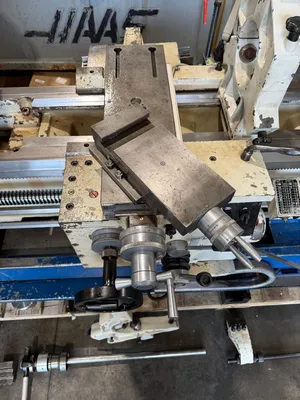

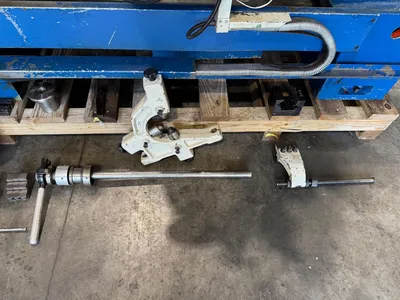

Taper attachment & guide block
Steady rest 6-1/2” Capacity
Follow rest
Spindle nose center
Machine Manuals
¾ H.P. Rapid motor

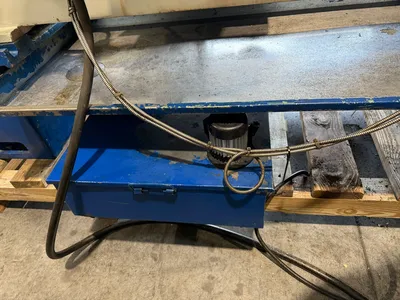

¼ H.P. Coolant motor
10 H.P. Motor

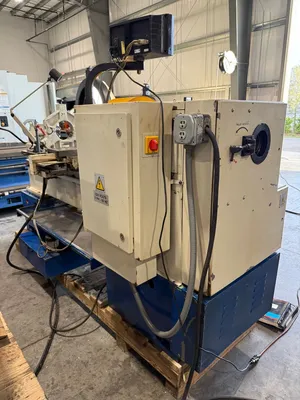

Machine is wired for 220 volt / 3 Phase/ 60 H.Z.
Machine weight- 7,000 Lbs.
Machine dimensions- 114” x 48” x 65” H
Machine location- F.O.B. Sarasota, Florida
