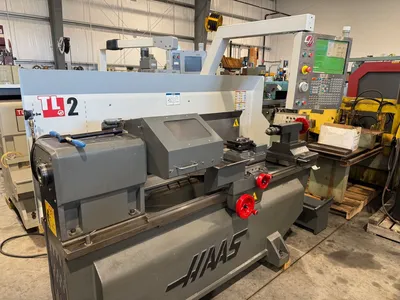

HAAS TL-2 CNC Toolroom Teach Style Lathe 2012’ USA #7964
HAAS TL-2 CNC Toolroom Teach Style Lathe 2012’ USA #7964
Reference # 7964
Model # TL-2

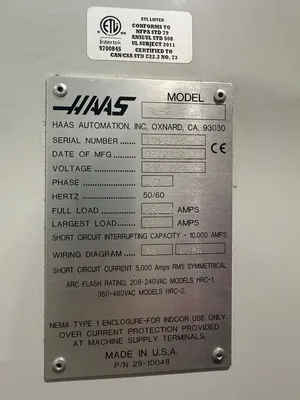

Serial # 3092726
Year of manufacture- 07/2012’
Maximum swing- 20”
Swing over cross slide- 11”
Maximum cutting diameter- 16”
Maximum cutting length- 48”
Distance between centers- 48”
X axis travel- 8”
Z axis travel- 48”
Rapids on X axis- 450 I.P.M.
Rapids on Z axis- 450 I.P.M.
Spindle nose- A2-6
Max spindle speed- 2,000 R.P.M.
Spindle bore- 3.00”
HAAS CNC control with USB
Servo time- 8,587, Motion time- 1,475, Spindle time- 1,637
Control options-Rigid tapping, DNC, Quick code, Brushless barfeeder, Intuitive programming system

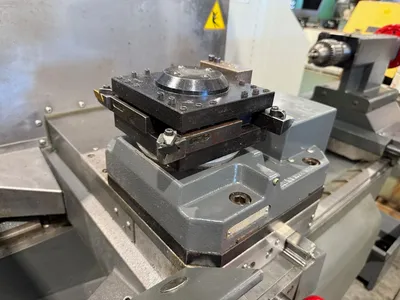

4 position Tool post option
Tailstock with drill chuck

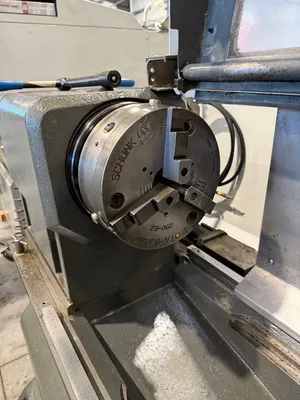

10“ SCHUNK 3 Jaw chuck
Coolant tank & pump
(4) Leveling pads
Main spindle motor 10 H.P.
Machine can run on 3 phase / 1 phase
Machine is currently wired for 240 / 3 phase / 60 H.Z.
Machine weight- 5000 Lbs.
Machine dimensions- 109” x 69” W x 83” H
Machine location- F.O.B. Sarasota, Florida
