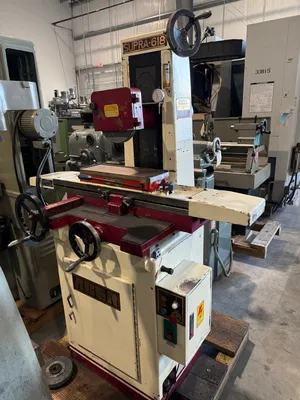

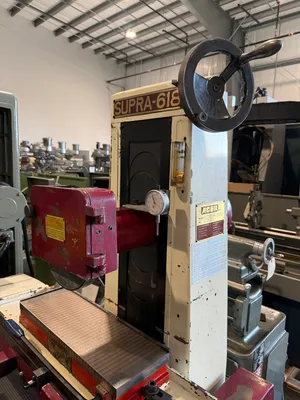

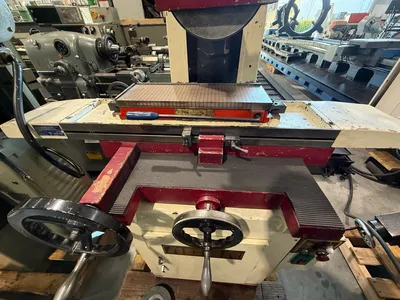

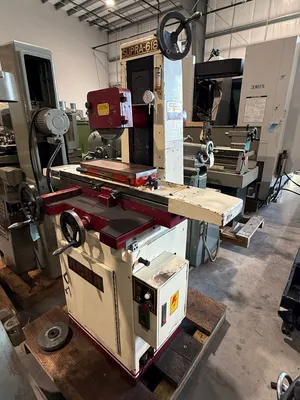

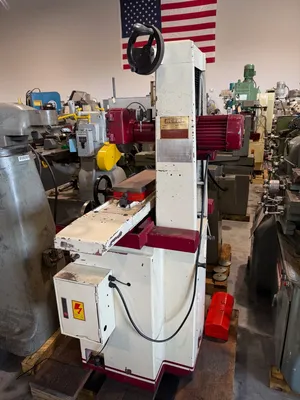

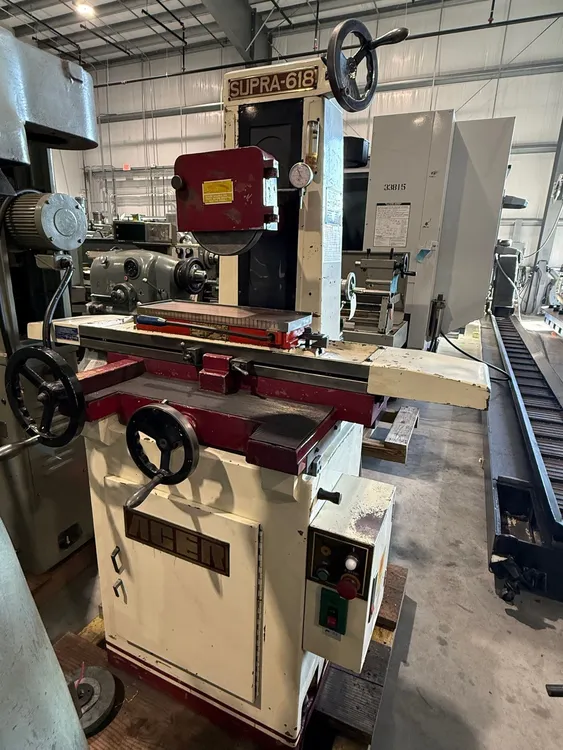

ACER #AGS-618 6” x 18” Surface Grinder #7975
Have one to sell?
$3,450.00 USD
ConditionUsed
1 available
ACER #AGS-618 6” x 18” Surface Grinder #7975
ACER #AGS-618 6” x 18” Surface Grinder #7975
Reference #7975

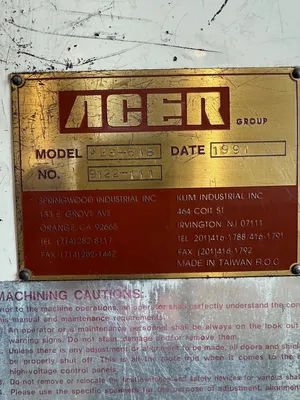

Model # AGS-618
Serial # 9122-111
Year of manufacture- 1991
Table size- 7” x 19”
Chuck size- 6” x 18”
Table travels-
Longitudinal- 19”
Cross- 7”
Maximum distance from table surface to spindle centerline- 18”
Max grinding length- 18”
Max grinding width- 6”
Downfeed handwheel graduation- .0005”
Cross handwheel graduation- .001”
Grinding wheel size- 8” diameter x ½” width x 1.25” bore
Spindle speed- 3500 R.P.M.
Maximum table weight- 440 Lbs. Including chuck

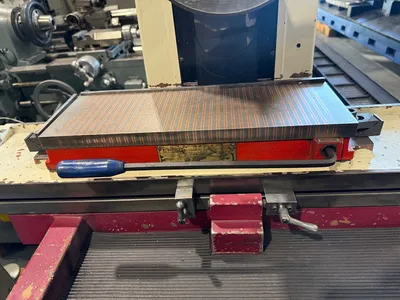

6” x 18” Fine pole magnetic chuck

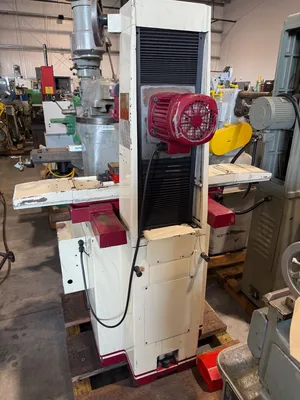

2 H.P. Spindle motor
One shot lubrication
Machine is currently wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 1500 Lbs.
Machine dimensions- 48” L x 52” W x 67’’ H
Machine location- F.O.B. Sarasota, Florida
