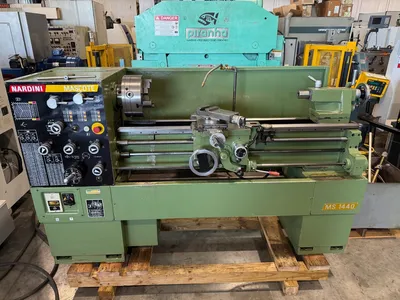

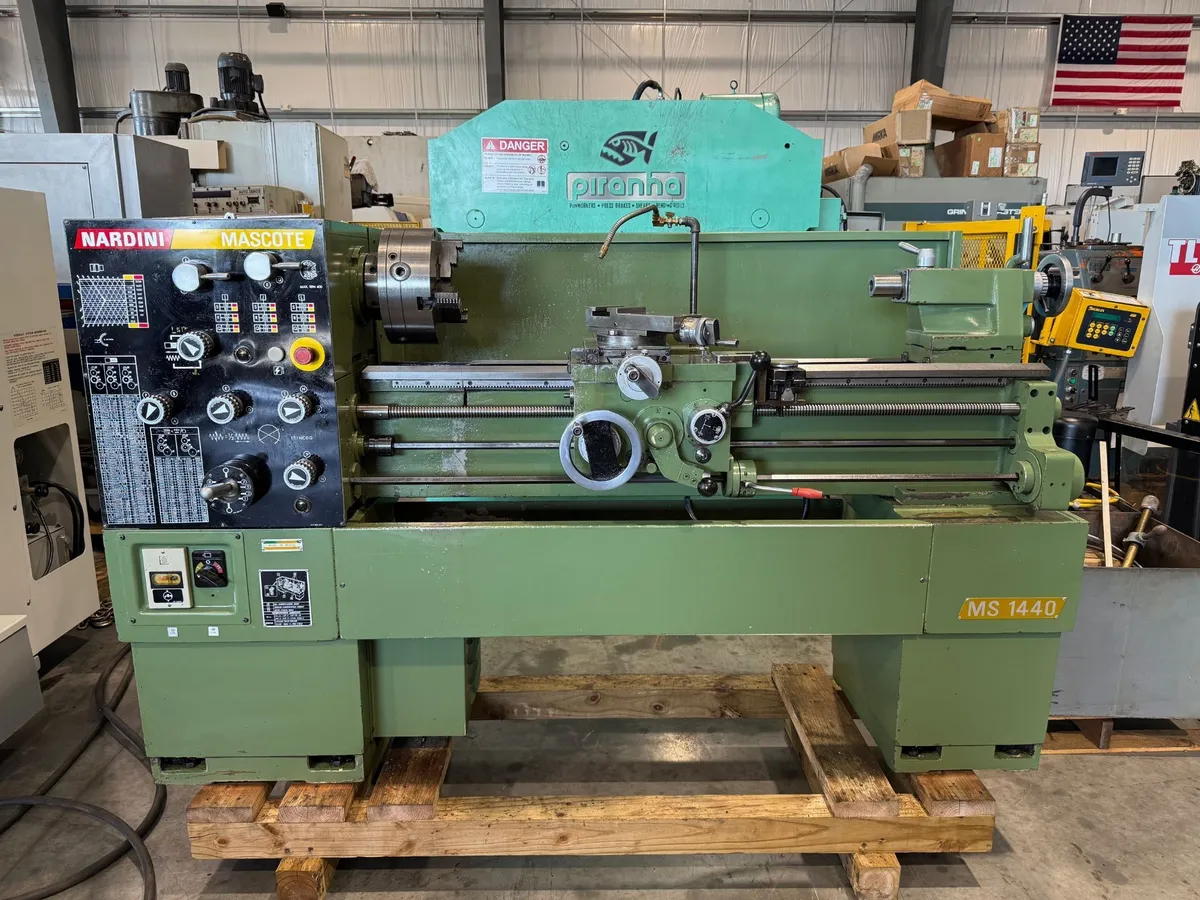

NARDINI MASCOTE MS-1440 14”/19.75” x 40”cc Gap Bed Lathe #7980

NARDINI MASCOTE MS-1440 14”/19.75” x 40”cc Gap Bed Lathe #7980
Reference # 7980
Model # MS-1440E

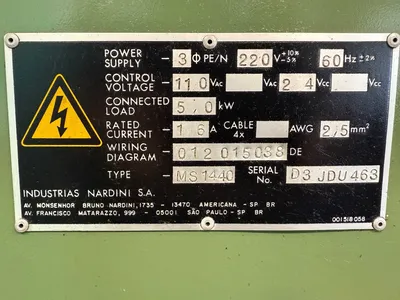

Serial # D3JDU463
Swing over bed- 13-3/4”
Swing over cross slide- 7-7/8”
Swing through removable gap- 19-3/4”
Distance between centers- 40”
Spindle bore- 1-5/8”
Spindle nose, Camlock, size- D1-5
Headstock and tailstock spindle center taper- #3 Morse
(18) Spindle speeds, two ranges- 25 – 2,000 R.P.M.
(33) American Standard threads- 3 – 56 T.P.I.
(45) Metric threads- 0.40 – 7 mm
(64) Longitudinal feeds- 0.0015 to 0.552 I.P.R.

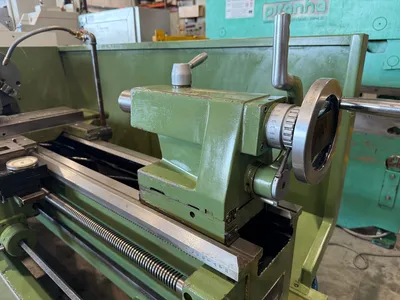

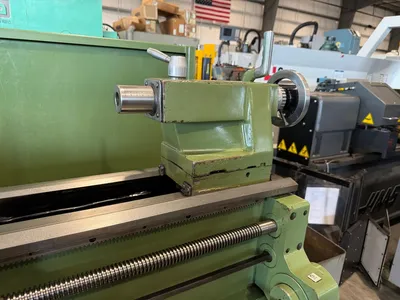

Tailstock travel- 3-1/8”
Tailstock taper- #3 Morse
