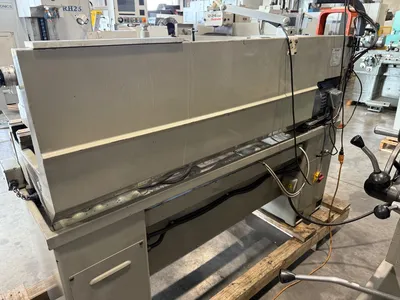

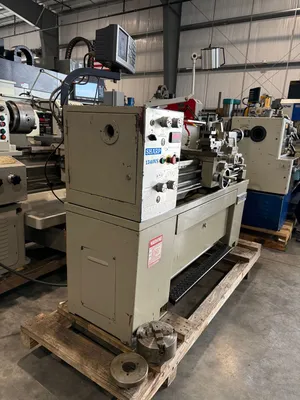

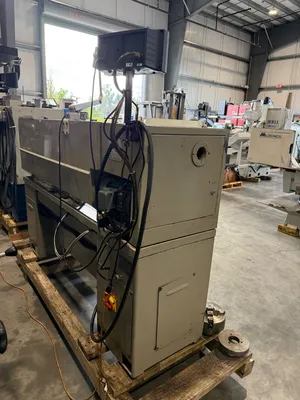

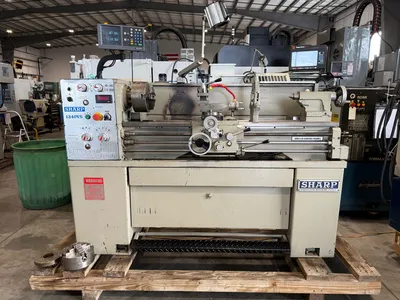

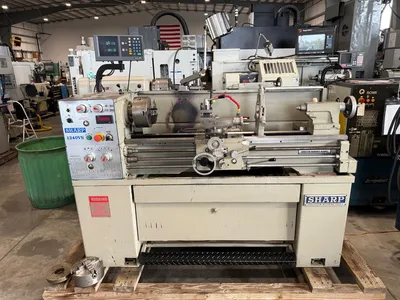

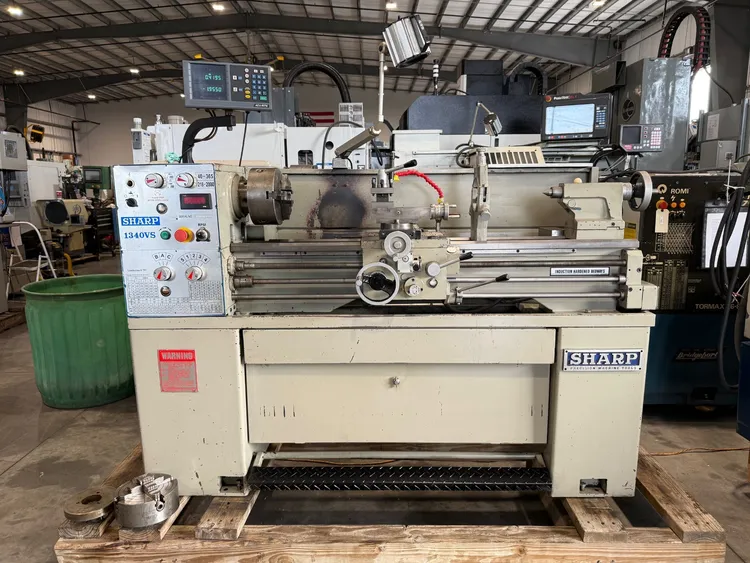

SHARP 1340VS Variable Speed Precision Lathe 2004’ #8018
SHARP 1340VS Variable Speed Precision Lathe 2004’ #8018
Reference # 8018
Model # 1340VS
Serial # 43189
Year of manufacture- 2004’
Swing over bed- 13”
Swing in gap- 19”
Swing over cross slide- 7.6”
Distance between centers- 40”
Spindle speeds- 40 – 2,000 Variable speed
Spindle nose- D1-4
Spindle bore 1.56”
Inch threads- 2 – 56 T.P.I.
Metric threads- 0.5 – 12mm
Longitudinal feeds- 0.0016 – 0.046”
Cross feeds- 0.0005 – 0.015”
Cross slide travel- 6.18”
Compound travel- 3.75”
Compound width- 4.5”
Bed width- 8.5”
Tailstock quill diameter- 1.56”
Tailstock quill travel- 4”
Tailstock taper- #3 Morse

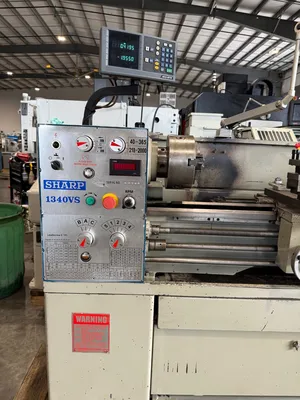

ACURTITE 2 Axis DRO Digital Read Out

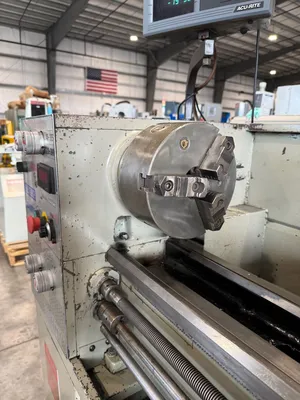

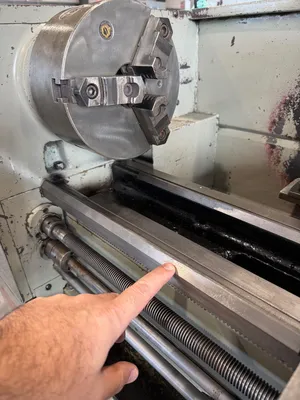

8” BISON 3-Jaw chuck

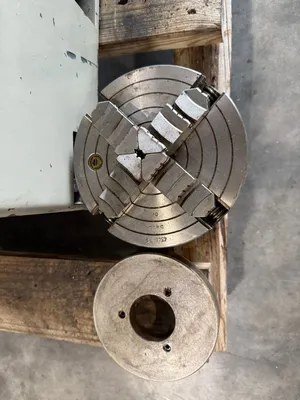

8” BISON 4-Jaw chuck
Dog plate

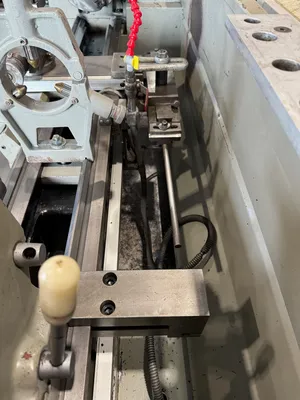

Taper attachment

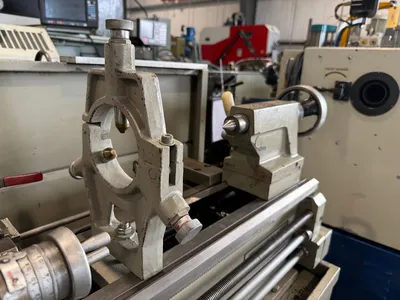

Steady rest 4” capacity

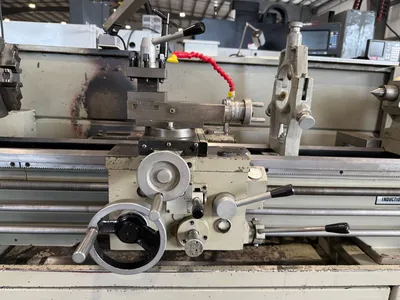

Tool post
OEM Tool box & leveling pads
Dead center
3 H.P. Spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 1600 Lbs.
Machine dimensions- 74” L x 30” x 55’’ H
Machine location- Sarasota, Florida
