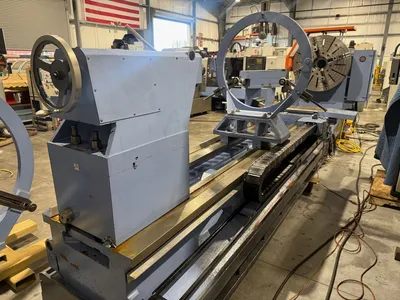

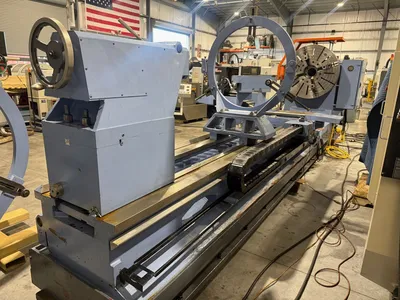

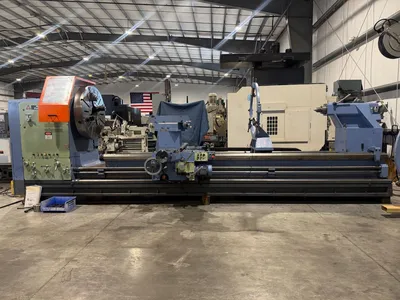

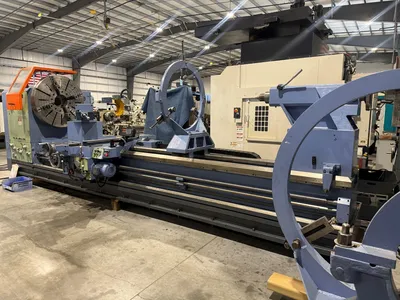

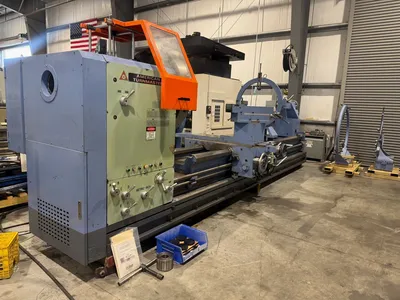

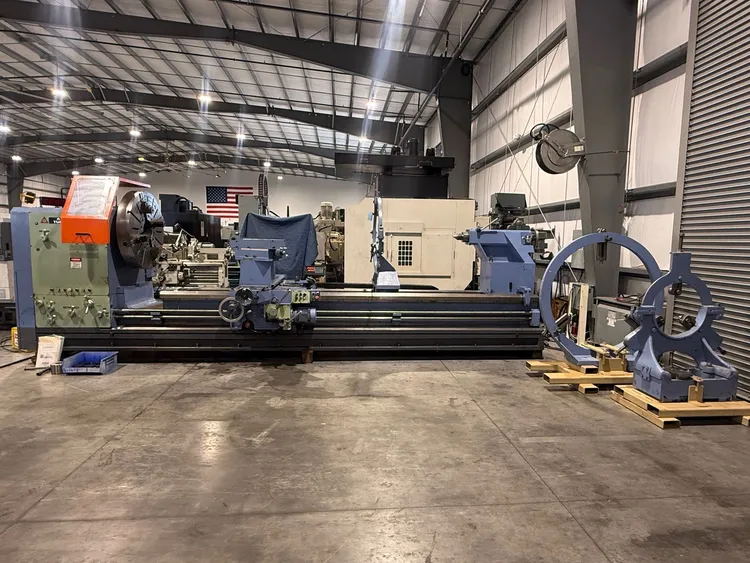

LAGUN AMERICAN TURNMASTER 60”/78” x 168”cc Gap Lathe 2000’ EVS #8019
Reference #8019

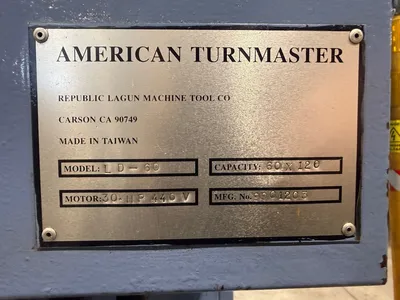

Model # LD60
Serial # 9901203
Year of manufacture- 2000’
Swing over bed- 60-1/8”
Swing over cross slide- 47-1/4”
Swing in gap- 78”

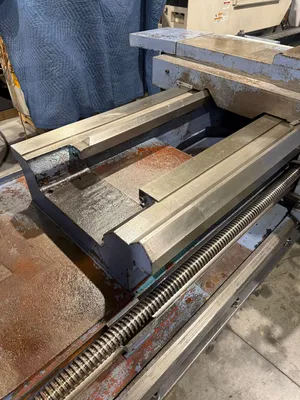

Length of gap- 23”
Distance between centers- 168”
Bed width- 28”
Spindle taper- A1-11

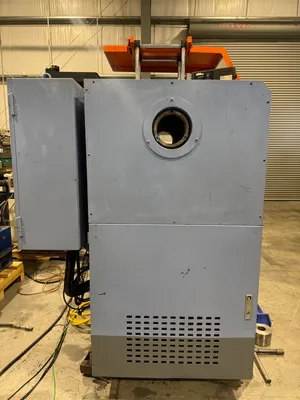

Spindle bore- 6-1/8”
Spindle speeds- (4) Ranges
Feed ranges- (60) .0016 - .096
Inch threads- (60) ½” – 28 T.P.I.
Metric threads- (46) 1.25 – 56
3 way bed design for HD rigidly

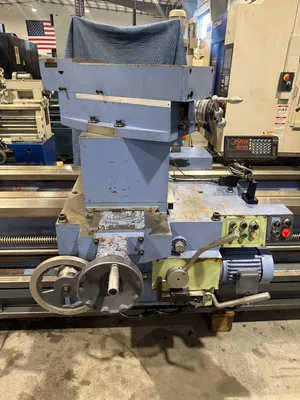

3 Way Rapids- (Carriage, Cross slide, Top compound slide)

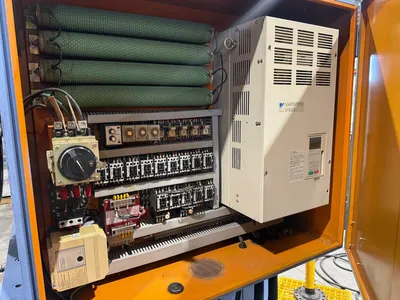

E.V.S. Electronic Variable Speed with R.P.M. Tachometer display

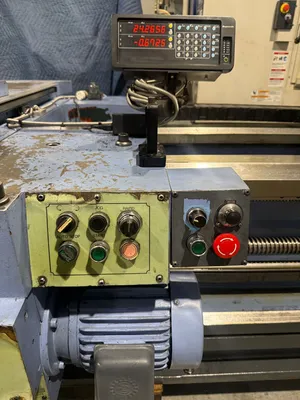

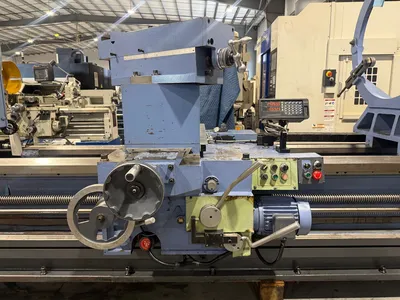

SONY 2 Axis DRO Digital Readout

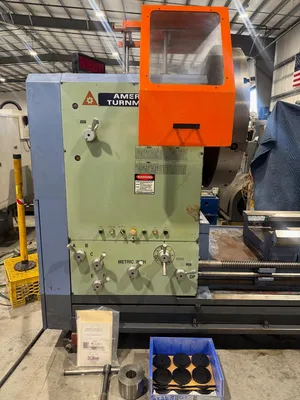

Chuck guard

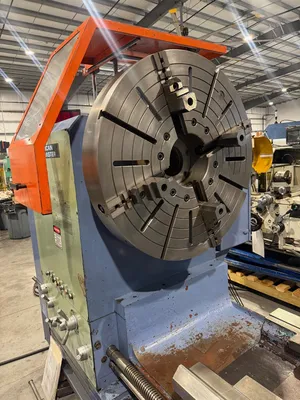

40” BISON 4 Jaw Chuck
Spindle center
Skoda Live center

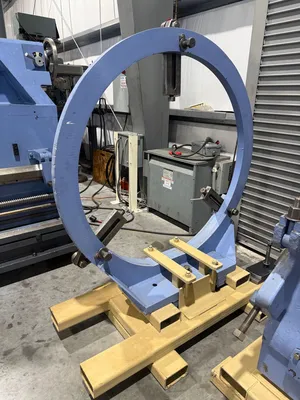

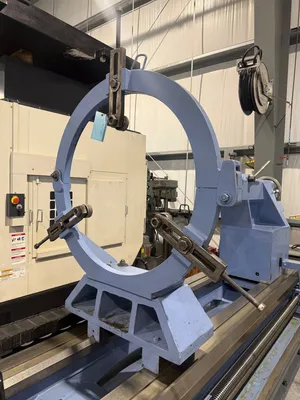

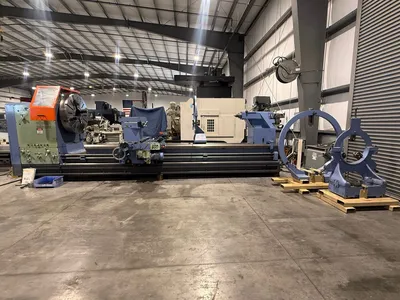

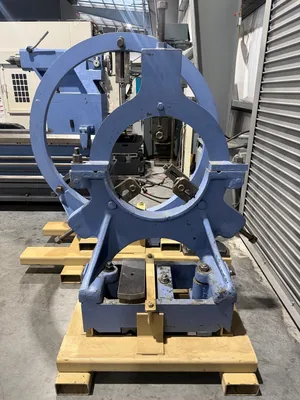

(3) Homemade steady rests, 20” , 32” , 48” capacity

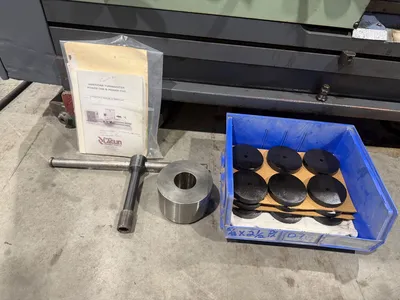

Machine manual & Schematics
Machine voltage 440 volt / 3 phase / 60 H.Z.
Machine weight- 30,000 Lbs.
Machine dimensions- 256” x 82” x 87” H
Machine location- F.O.B. Sarasota, Florida
