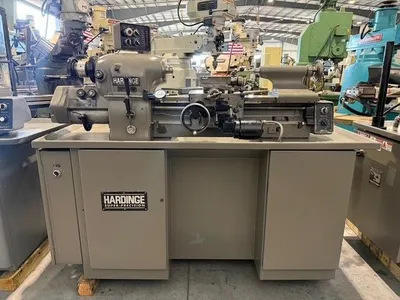

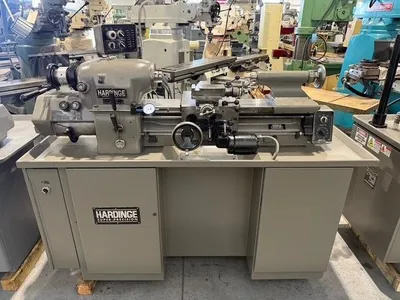

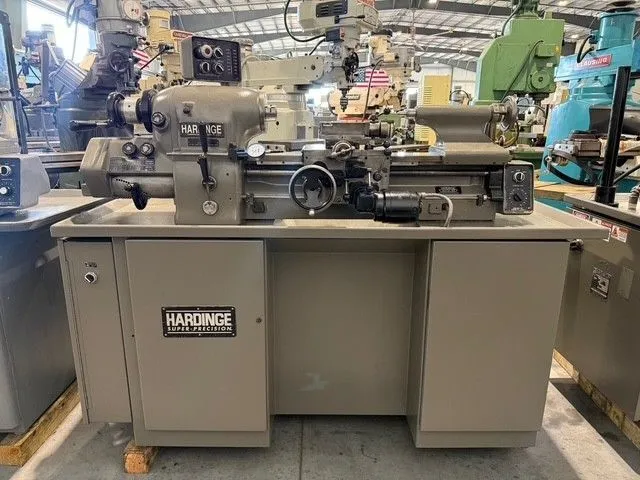

HARDINGE HLV-H-EM Super Precision Tool Room Lathe 1997’ Inch/Metric #8101

HARDINGE HLV-H-EM Super Precision Tool Room Lathe 1997’ Inch/Metric #8101
Reference #8101
Model # HLV-H-EM
Serial # 15257
Year of manufacture- 1997’
Spindle construction- HARDINGE ball bearing
Spindle nose- HARDINGE taper
Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" to 6"
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”
Variable spindle speeds- 125 - 3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”
Compound slide travel- 3”
Carriage power feed range- 5/16 – 7 I.P.M.
Cross slide power feed range- 3/16 - 4 I.P.M.
Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT
Inch threading range in gearbox (36)- 11 - 108 T.P.I.
Metric threading range in gearbox (36)- 0.275 - 2.7 mm
