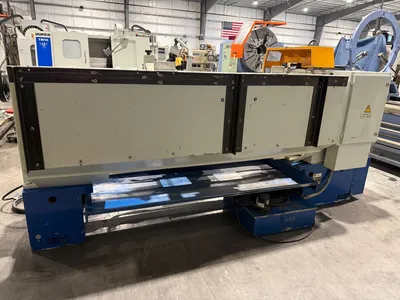

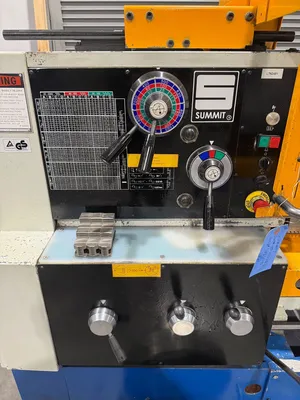

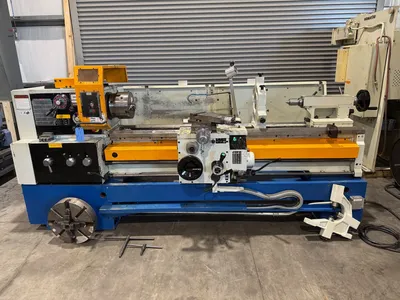

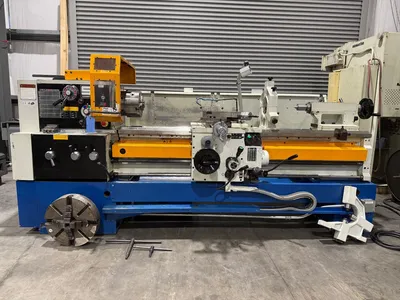

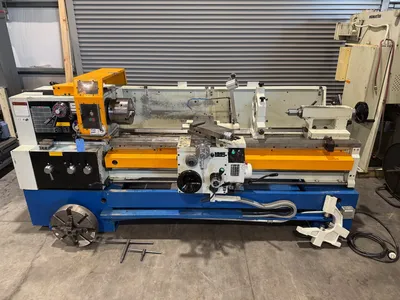

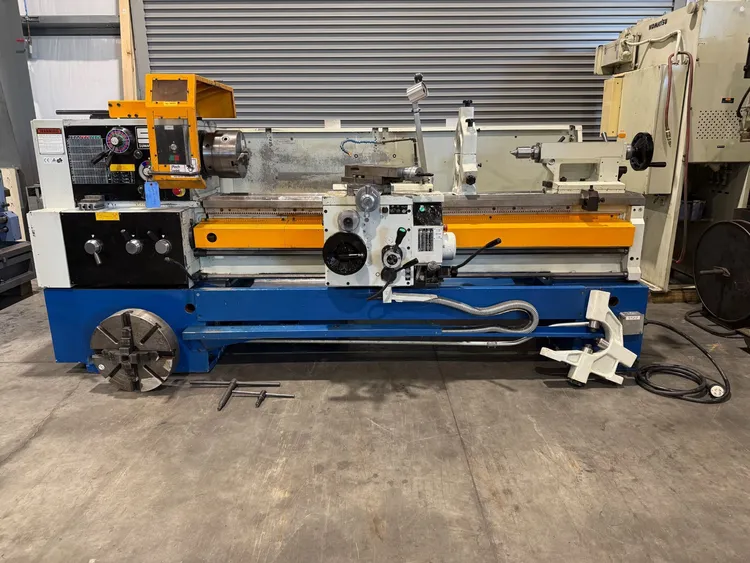

SUMMIT 16x60B 18”/25” x 60”cc Engine Lathe 2009’ #8120
Reference #8120

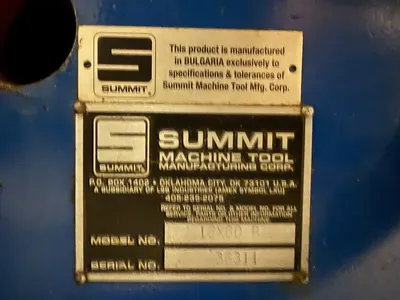

Model # 16x60B
Serial # 36311
Year of manufacture- 2009’
Swing over bed- 18”
Swing in Gap- 25-1/8”
Swing over cross slide- 9-3/8”
Cross slide travel- 11-3/8”

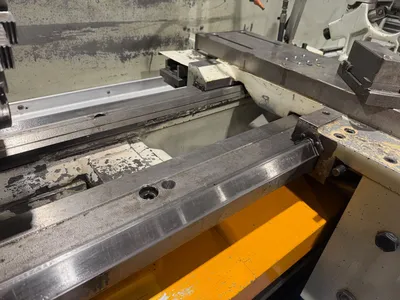

Bed width- 15-3/4”
Spindle taper- D1-8
Spindle bore- 3”
Spindle speeds- (21) 20 – 2,000 R.P.M.

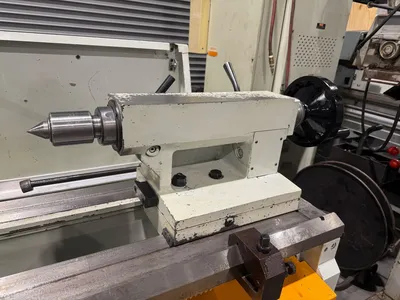

Tailstock taper- #5 Morse
Tailstock quill travel- 9-1/2”
Inch threads- (64) .25 – 60 T.P.I.
MM threads-(64) 1/4” – 60mm

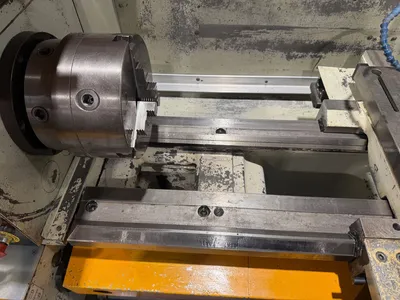

10” 3 jaw chuck & extra jaws

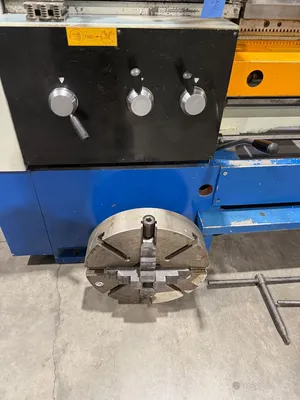

16” 4 Jaw Chuck
Live center USA Made

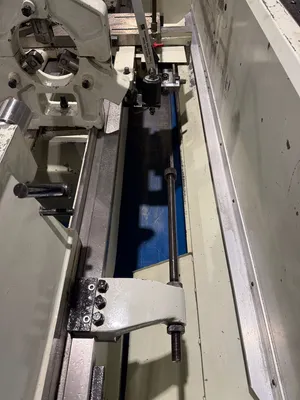

Taper attachment & guide block

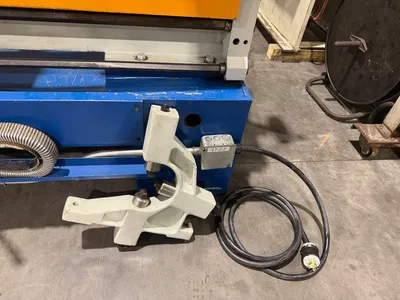

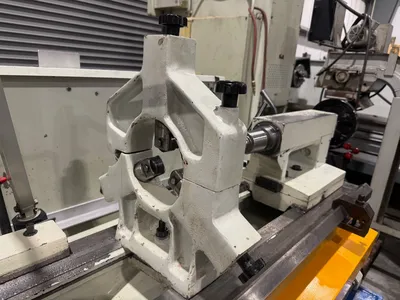

Steady rest 6-1/2” Capacity
Follow rest
¾ H.P. Rapid motor
¼ H.P. Coolant motor
10 H.P. Motor
Machine is wired for 440 volt / 3 Phase/ 60 H.Z.
Machine weight- 8,000 Lbs.
Machine dimensions- 140” x 48” x 65” H
Machine location- F.O.B. Sarasota, Florida
