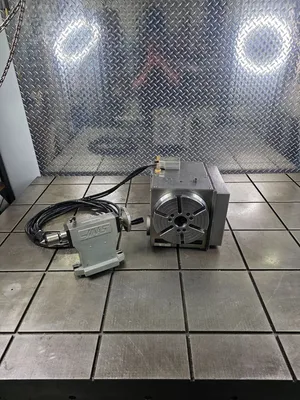

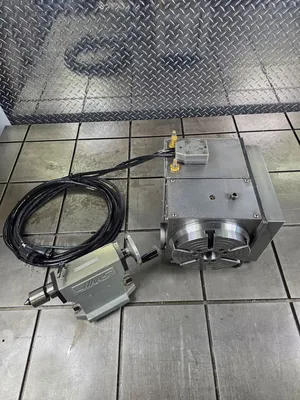

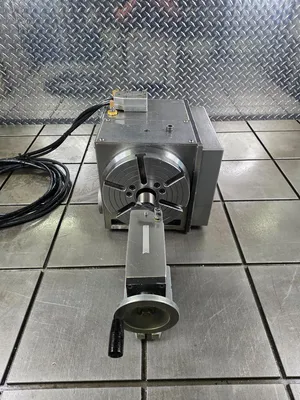

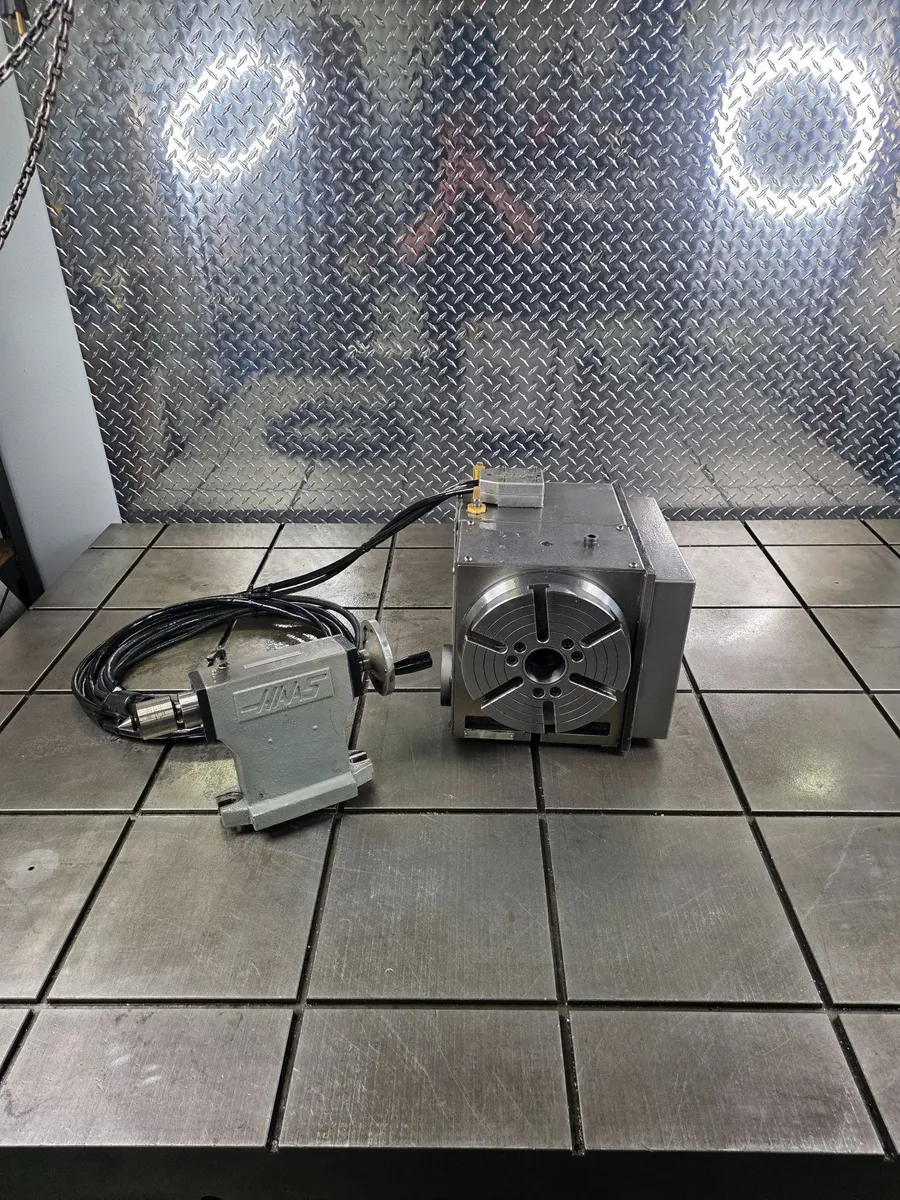

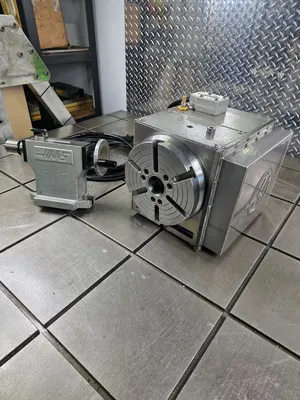

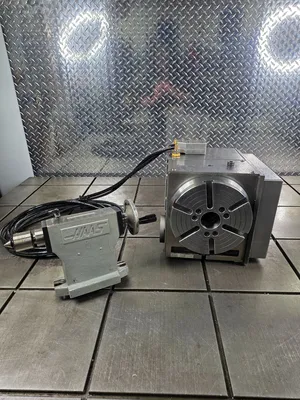

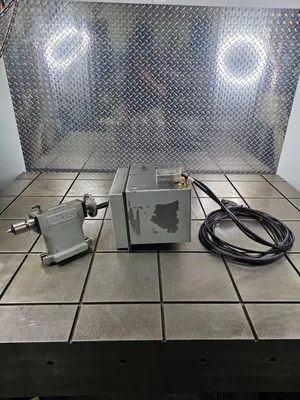

HAAS SHRT-210SPH 8.3” CNC Rotary Table 4th Axis Type & 6" Tailstock #8143

HAAS SHRT-210SPH 8.3” CNC Rotary Table 4th Axis Type & 6" Tailstock #8143
Reference #8143
Model # SHRT-210SPH
Serial # 2*1936
Table diameter- 8.3”
Max weight on platter supported- 170 Lbs.
Max weight on platter unsupported- 85 Lbs.
Number of Std T-Slots - 6 @ 60°
Max spindle speed- 100° sec
Torque- 210 Ft-Lbf
Runout max- 0.0005"
Center height- 6.00"
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 200 Fl-Lbf
Gear ratio- 90:1
Timing- 2:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter-6.3”
Max rotation / step- 999.999°
