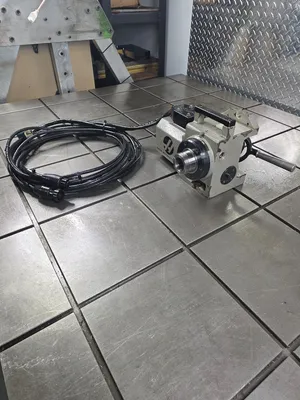

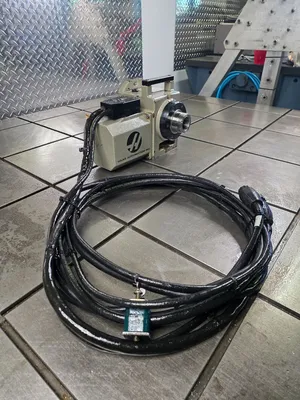

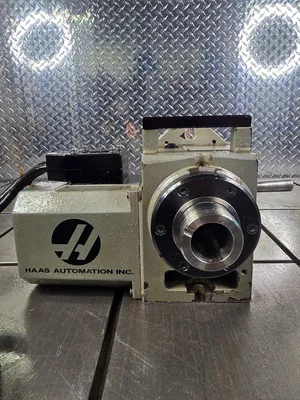

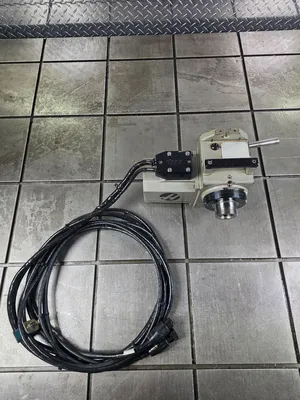

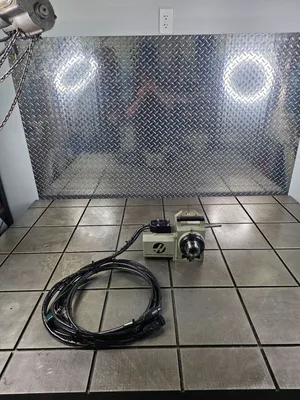

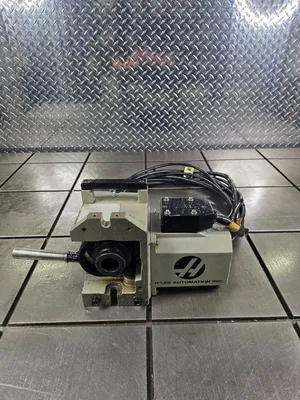

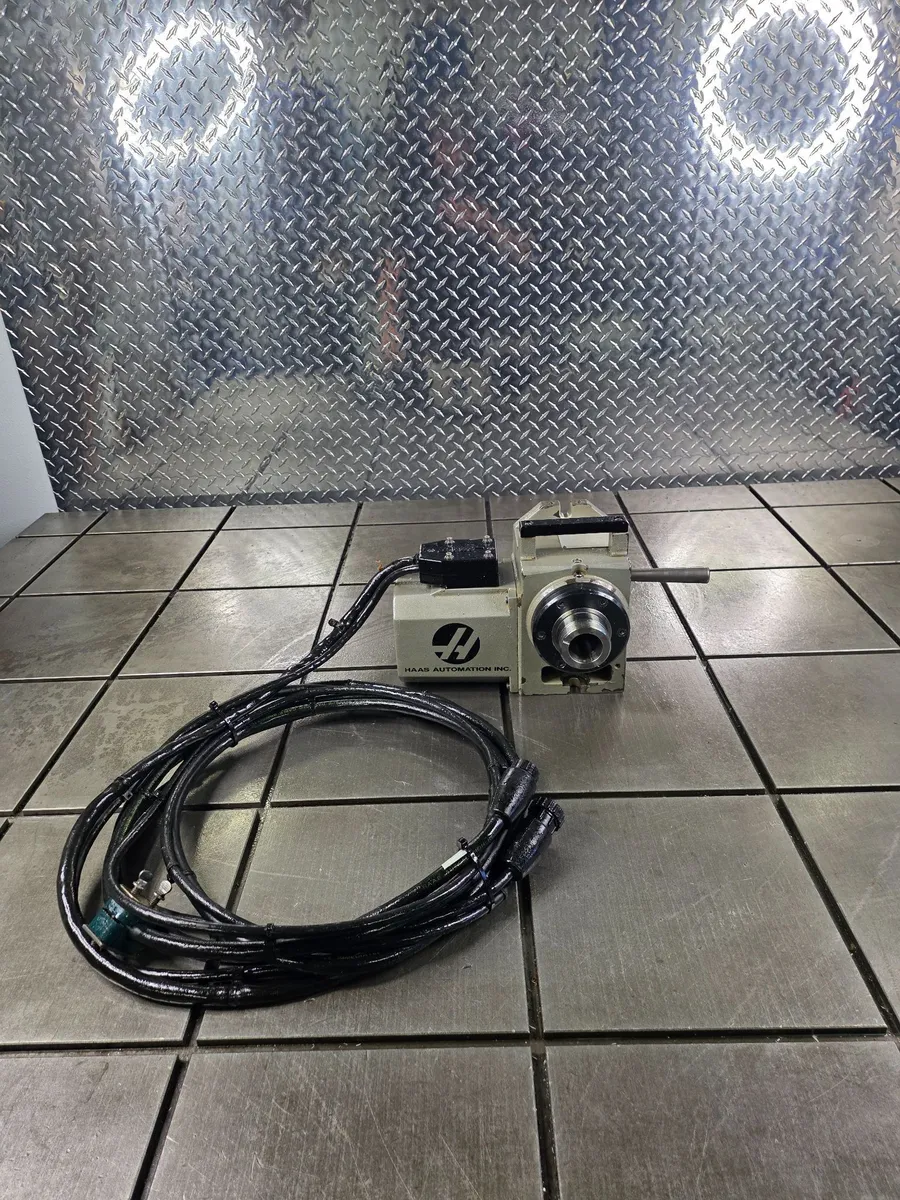

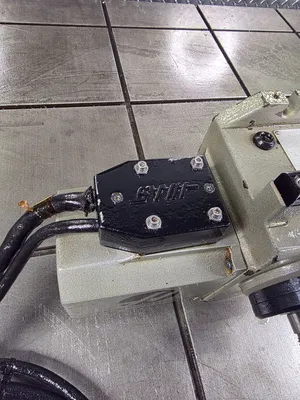

HAAS HA5C CNC Indexer Single-Axis Rotary Unit 5C USA #8144
Reference #8144
Model # HA5C

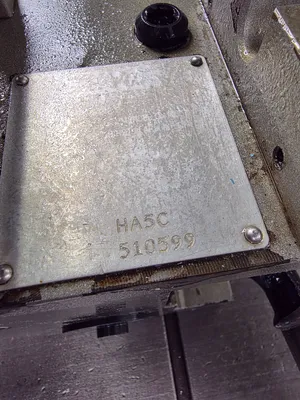

Serial # 510599
Max weight on platter supported- 20 Lbs.
Max weight on platter unsupported- 10 Lbs.
Max spindle speed- 410°/sec
Torque- 60 ft-lbf
Nose Thread- 2 3/16 in - 10
Runout max- 0.0004 in
Center height- 4.000 in
Collet Size- 5C
Backlash- 40 arc/sec
Gear ratio- 60:1
Accuracy- +/- 30 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter- 2.8”
Max rotation / step- 999.999°
SIGMA 1 Signal
Machine weight- 50 Lbs.
Machine dimensions- 16" x 9" x 8.5" H
Machine location- F.O.B. Sarasota, Florida
