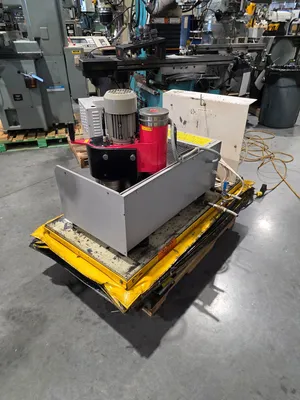

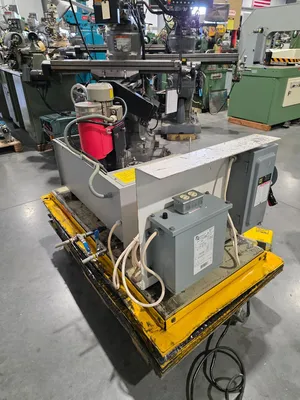

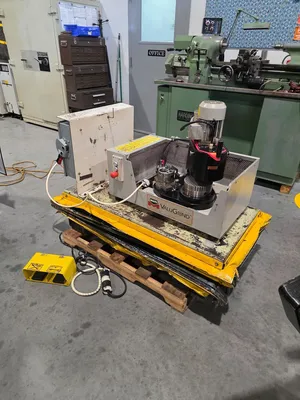

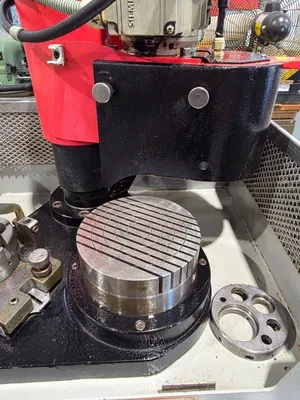

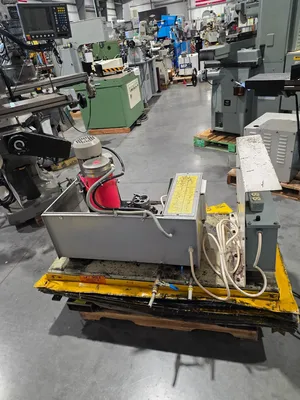

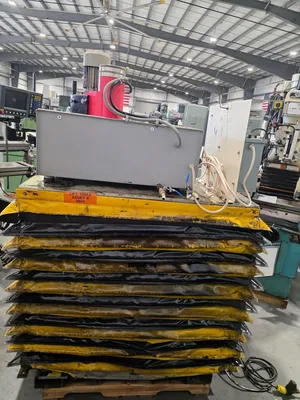

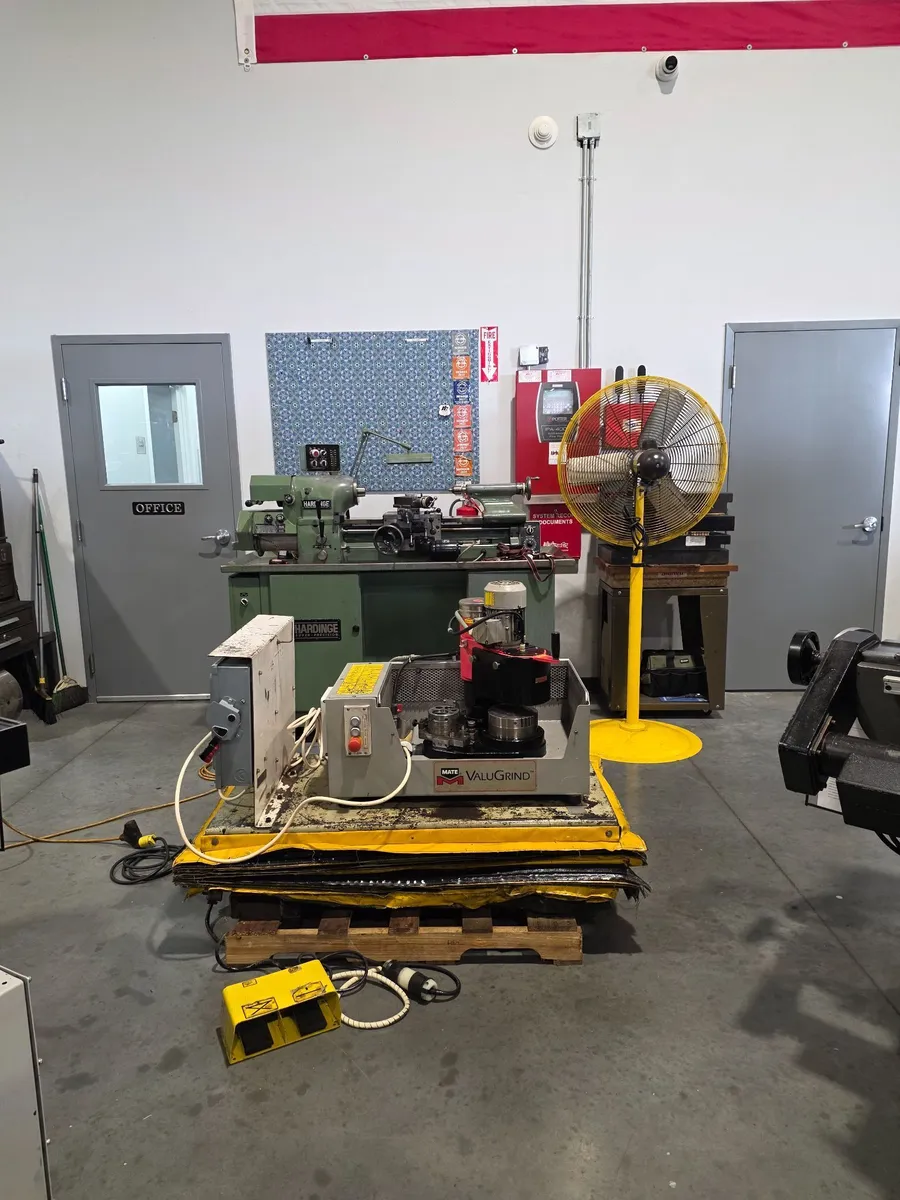

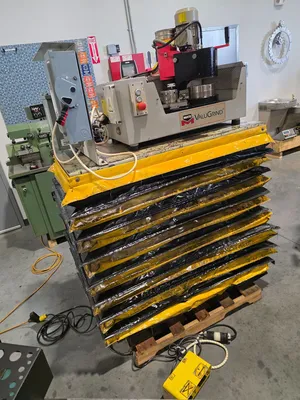

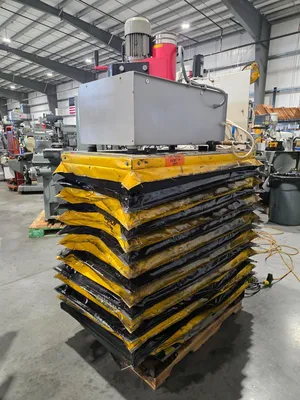

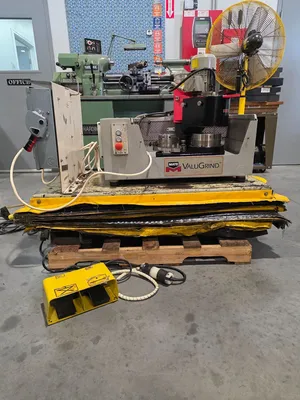

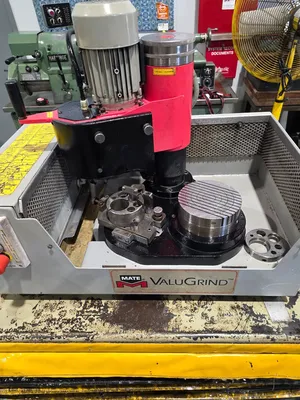

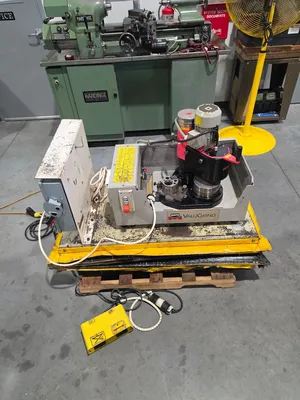

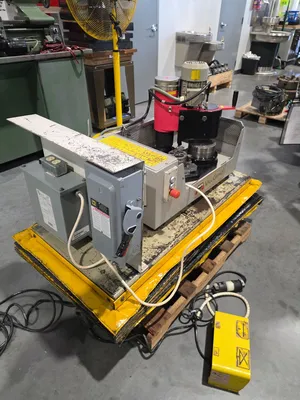

MATE M VALUGRIND Punch & Die Grinder on BARRON Powered Scissor Lift Table #8147
MATE M VALUGRIND Punch & Die Grinder on BARRON Powered Scissor Lift Table #8147
Reference #8147
Model # SB 1-M
Year of manufacture- 2014
Degree of protection - min. IP 54
Grinding Wheel RPM - 2200/min
Working travel of the spindle - 2.20"
Working travel scale division - 0.078"
Angular displacement of the arm - 180°
Grinding Wheel Diameter - 6.299"
Die Diameter max - 6.259"
Die Height max - 1.57"
Maximum length of punches A and B - 8.18"
Maximum length of punches B, C and D - 3.81"
Punch Shank Diameter max - 4.76"
Height Adjustment Graduations - 0.078"
Shear Angle - 0°-8°

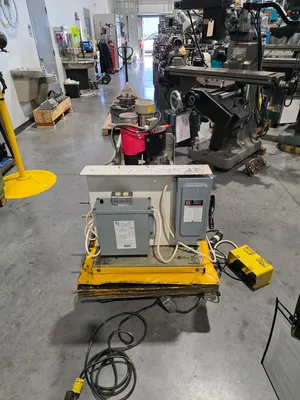

1 H.P. 3/60/208V motor with electrical controls

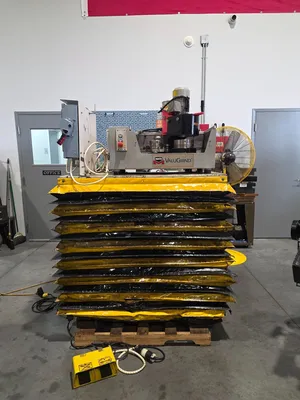

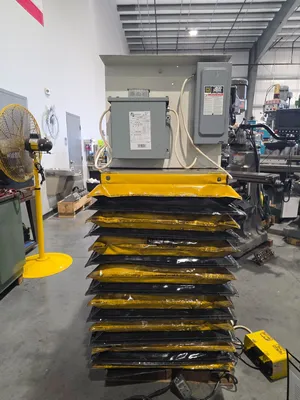

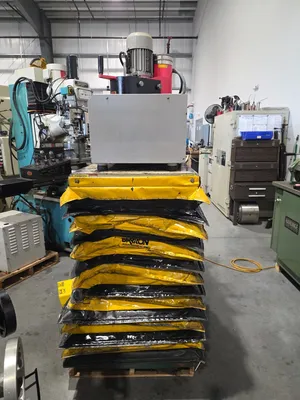

BARRON Powered Scissor Lift Table 24" W x 48" L with 36" Range (Height when lowered: 10" Max Height: 46")
Machine is wired for 208V operation.
Machine weight- 353 Lbs.
Machine location- F.O.B. Sarasota, Florida
Machine dimensions- 32” L x 27” W x 27’’ H
