| Table-W | 12" | 304.8 mm |
| Table-L | 42" | 1,066.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Dimensions | 72” x 68” x 91” H | 72” x 68” x 91” H |
| Weight | 2,750 Lbs. | 2,750 Lbs. |

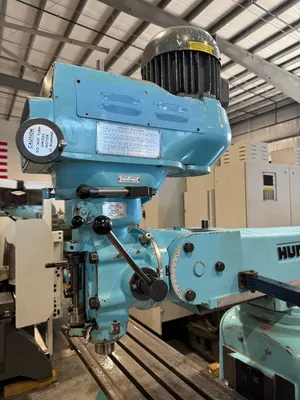

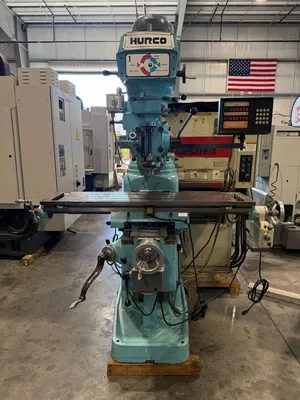

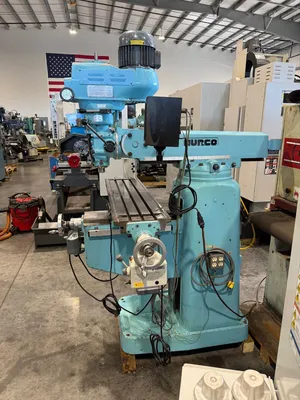

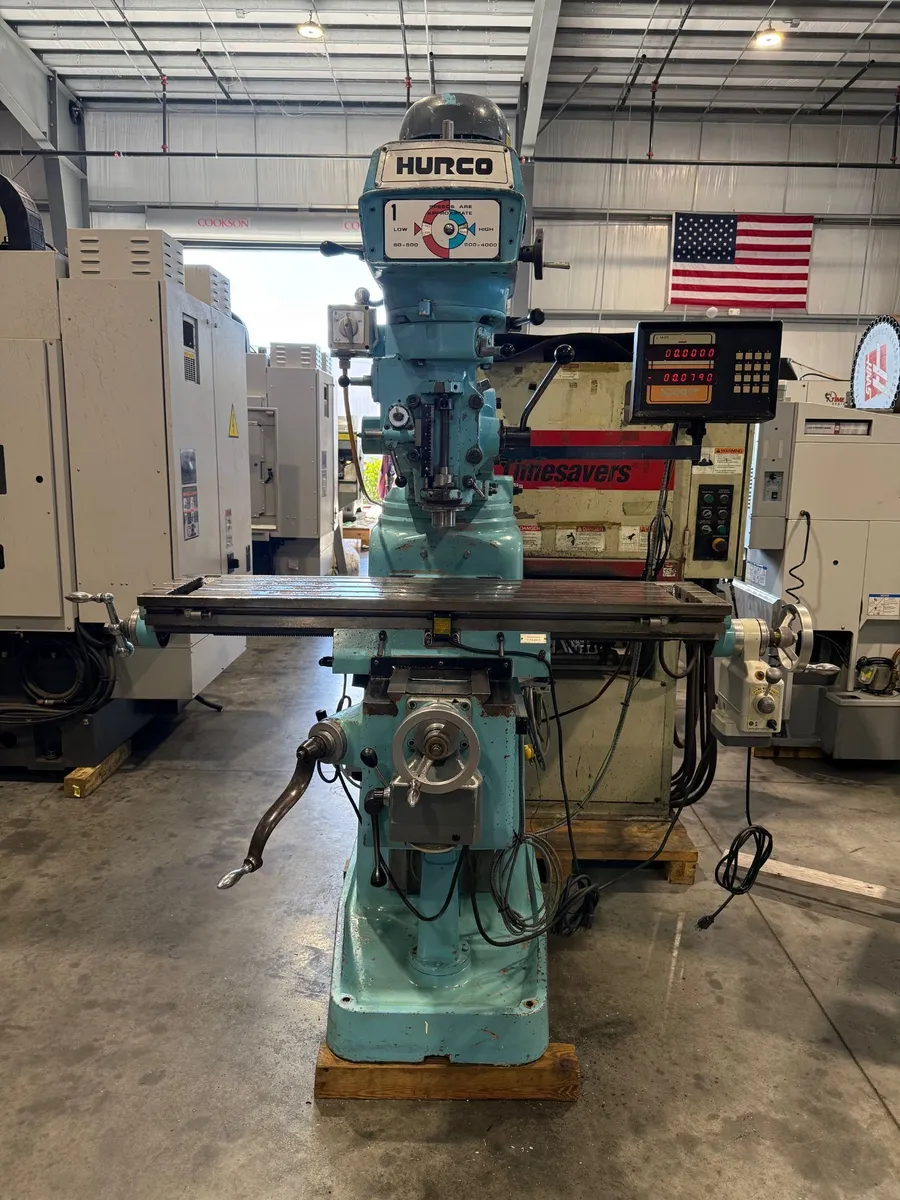

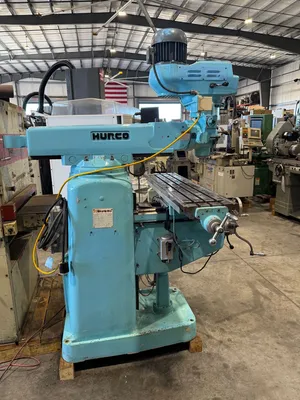

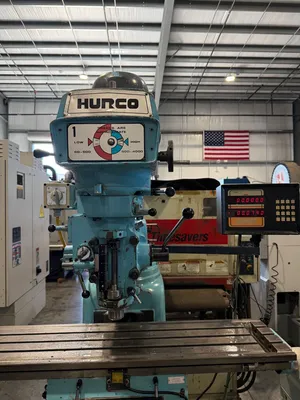

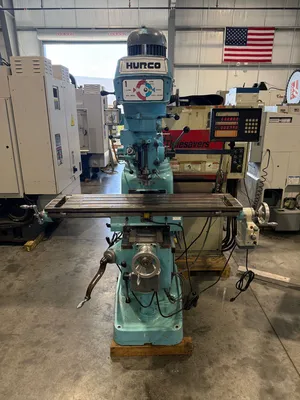

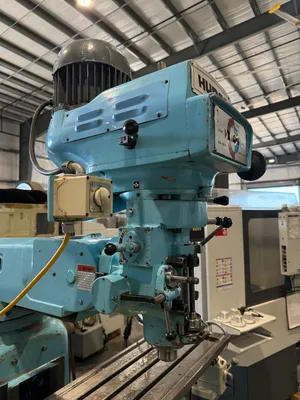

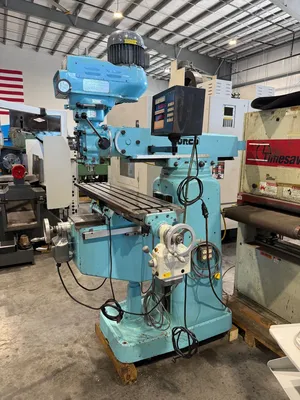

HURCO SM-1 Vertical Milling Machine 3 H.P. DRO #8151
Reference # 8151
Model # SM-1

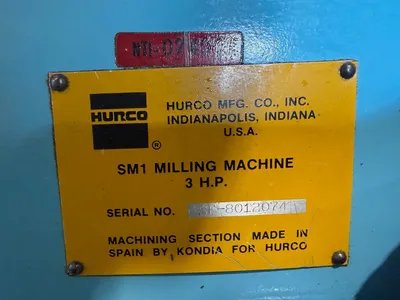

Serial # SF-8012074

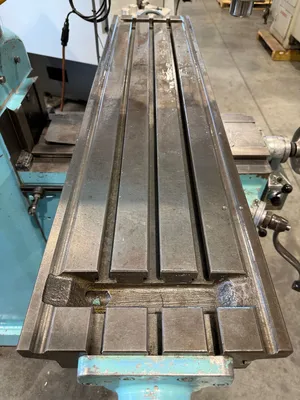

Overall Table Size 11” x 48”
Distance between T-Slots 2 ½”
Longitudinal Table Travel 30”
Cross Travel 14”
Vertical Travel 18”
Overarm Travel 23”
Distance Center of Spindle to Column 10” – 26”
Distance Center of Table to Column 6” – 19 ½”
Distance Spindle Nose to Top of Table 8 ½” – 30”
Head Tilt, Front to Back 45 degrees
Head Tilt, Side to Side 90 Degrees
Spindle Speeds 60-4000 ROM
Quill Feeds 5”
Quill Diameter 2”
2 Axis DRO Digital Readout
Y & X power feeds
3 H.P Spindle motor
Machine is wired for 230 volt / 3 phase/ 60 H.Z.
Machine weight- 2,750 Lbs.
Machine dimensions-72” x 68” x 91” H
Machine location- F.O.B. Sarasota, Florida
