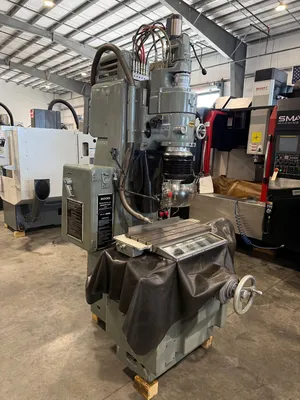

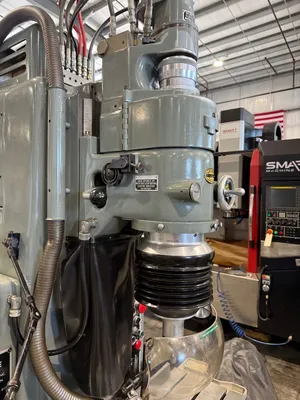

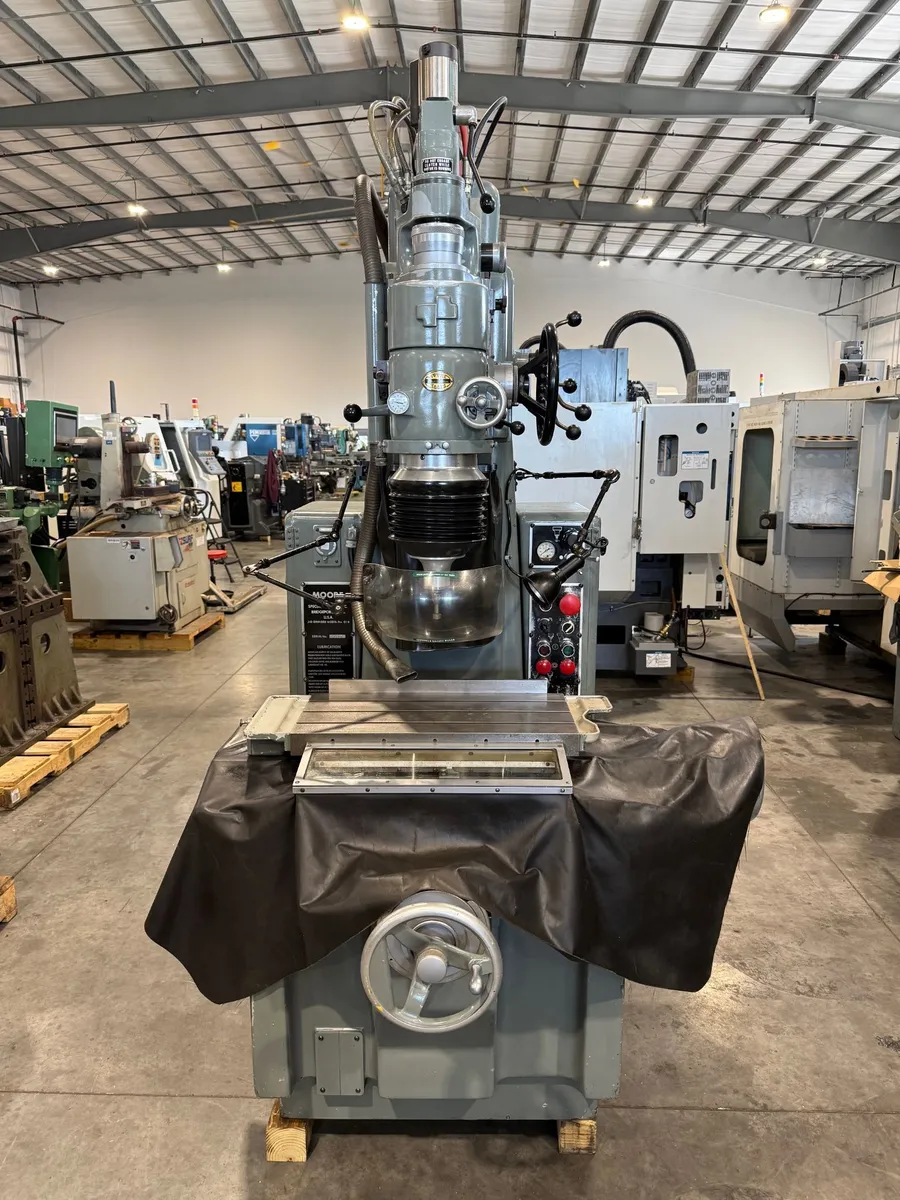

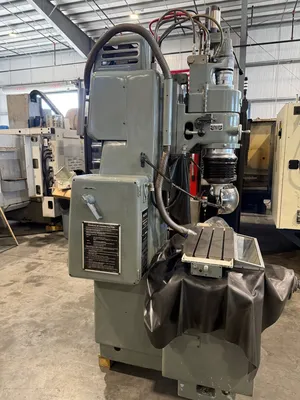

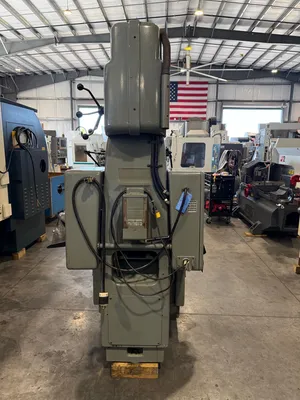

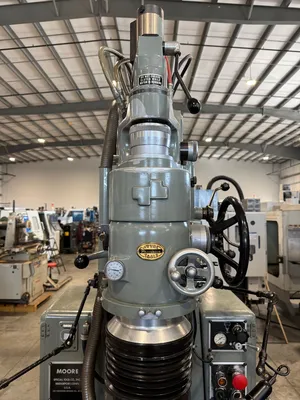

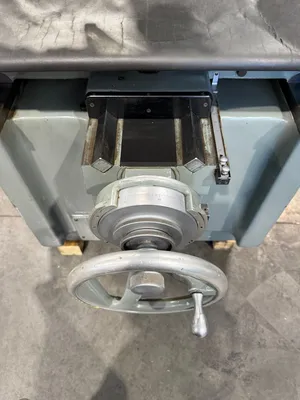

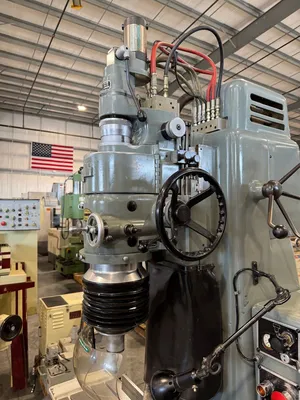

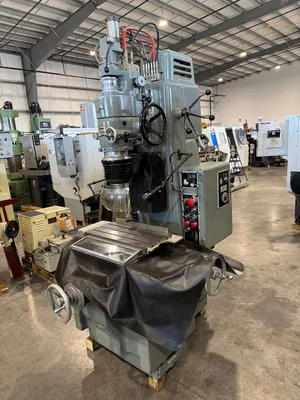

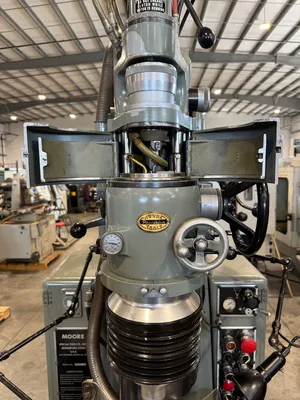

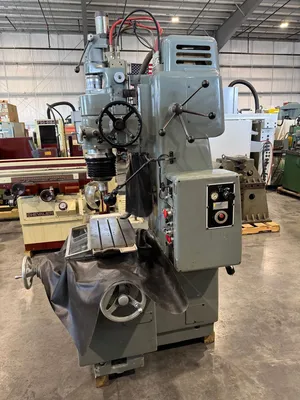

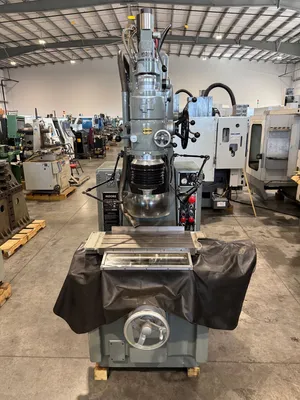

MOORE #G-18 Precision Jig Grinder 1979’ USA #8157
MOORE #G-18 Precision Jig Grinder 1979’ USA #8157
Reference #GMT-1892
Model # G-18
Serial # G-2587
Year of Manufacture- 1979’

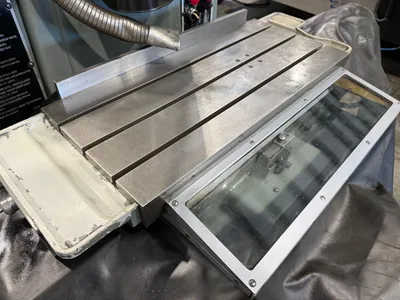

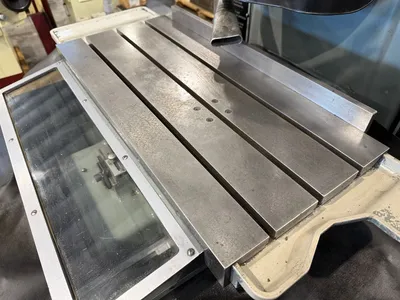

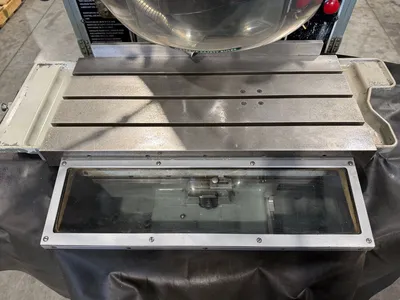

Table size- 11" x 24"
Ranges
Table movement- 11” x 18”
Table top to wheel collet, minimum- 2”
Table top to wheel collet, maximum- 18”
Spindle to column ways- 10”
Spindle to column below ways- 13-1/2”
Infinitely variable spindle speeds- 25-225 R.P.M.
Infinitely variable spindle feeds- 2-120 S.P.M.
Spindle feed adjustable from- 0.100" to 3-5/8"
Grinding wheel speeds- 6,000-175,000 R.P.M.
Grinding capacity, grinding wheels- 1/64"-3-1/2"
Angular adjustment of spindle, either way- 1-1/2°
included angle- 3”
Radial offset of grinding spindle:
a) from center to 1-1/8" off center by rough adjustment while running
b) .0001" adjusted for distance of .100" anywhere in the 1-1/8" range
Hardened, ground, and lapped steel ways (no gibs)
Hardened, ground, and lapped nitralloy leadscrews
Leadscrews and nuts that are fully immersed & operated in a bath of oil
Work light
Dust shield
Machine is wired for 1/60/220 volt operation.
Machine weight- 4,000 Lbs.
Machine dimensions- 58” L x 62” W x 88’’ H
Location- F.O.B. Sarasota, Florida
