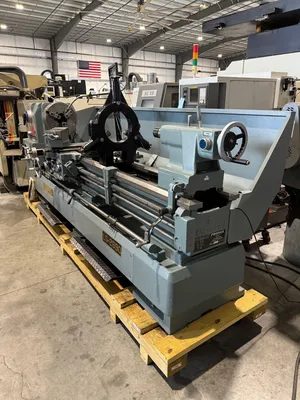

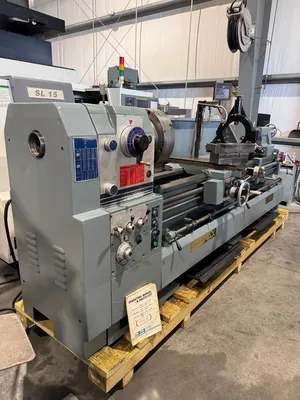

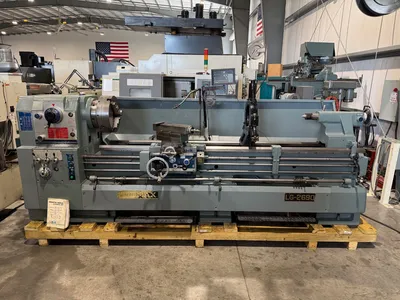

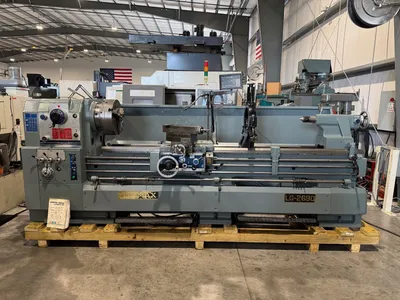

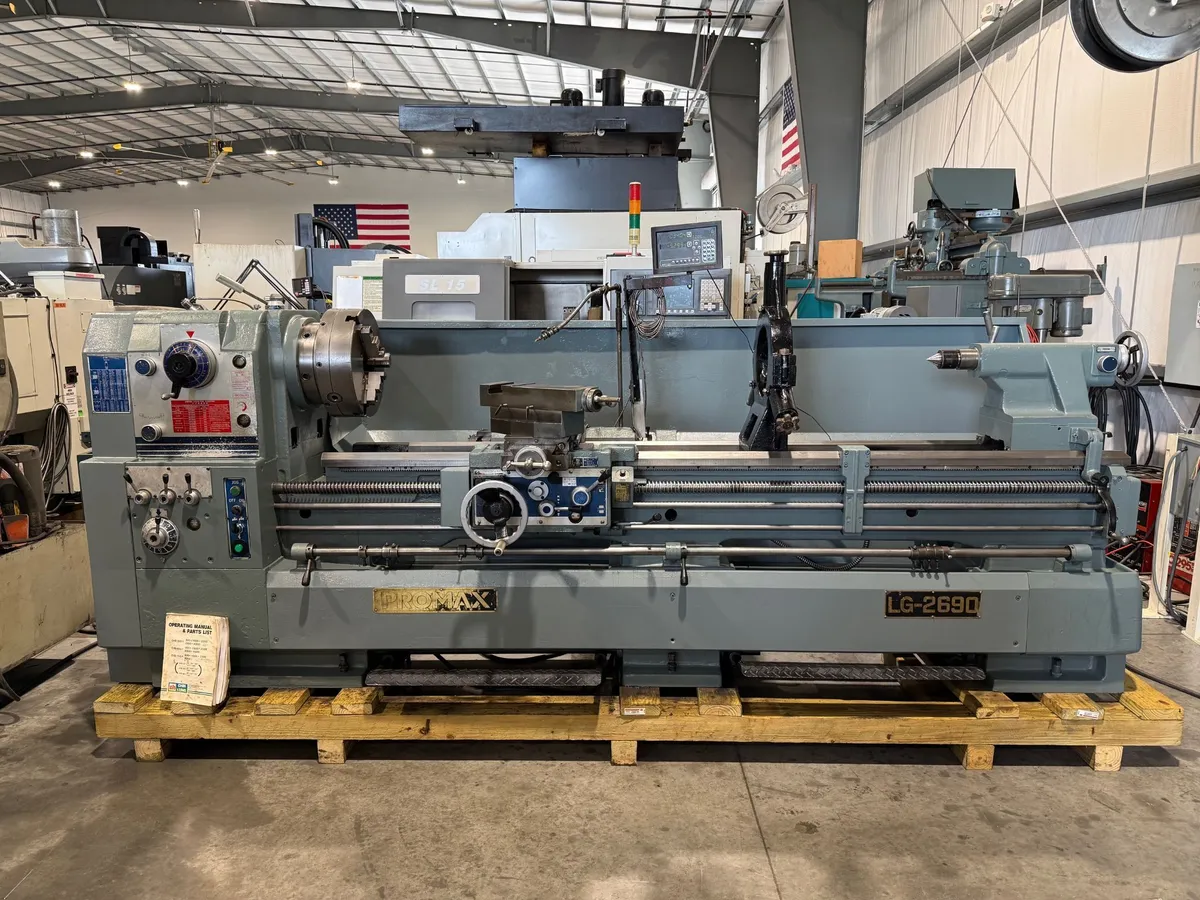

PROMAX 26”/35” x 90”cc Gap Lathe DRO 4” Bore #8166

PROMAX 26”/35” x 90”cc Gap Lathe DRO 4” Bore #8166
Reference #8166
Model # 2690
Serial # CH98740
Year of manufacture- 1999’
Swing over bed- 26”
Swing over carriage- 17-1/2”
Swing in Gap- 35-1/8”
Gap length- 10-5/8”

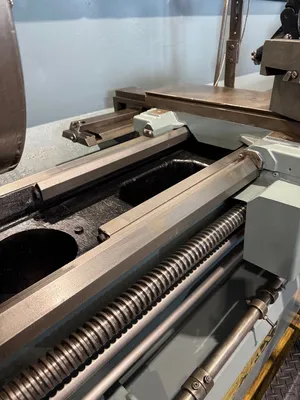

Bed width- 15-3/4”
Distance between centers- 90”
Compound travel- 9-1/2”
Cross slide travel- 15-3/4”
Spindle bore- 4-1/16”
Spindle nose- D1-11
Spindle speeds- (12) 8 – 800 R.P.M.
Longitudinal feeds- (36) 0.0014” - 0.039”
Cross feeds- (36) 0.0007” – 0.000185”
Inch threads- (44) 1- 36 T.P.I.
MM threads- (44) .4 – 28mm

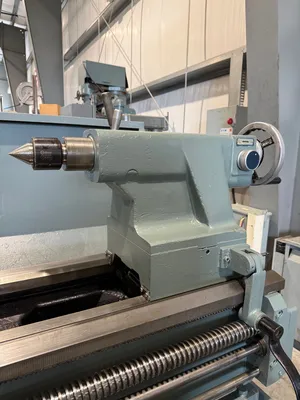

Tailstock taper- #5 Morse
Tailstock travel- 7”
Tailstock quill diameter- 2-15/16”
