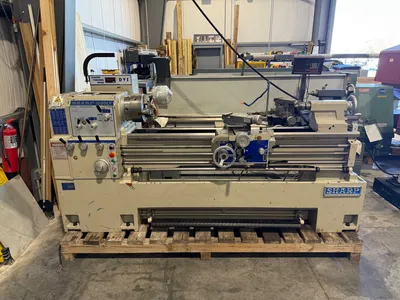

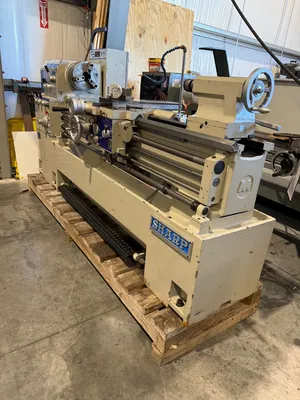

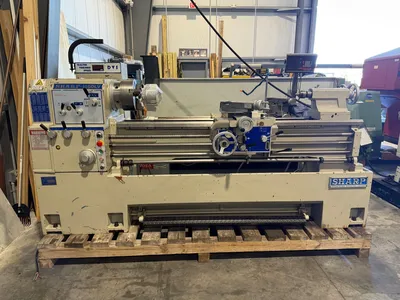

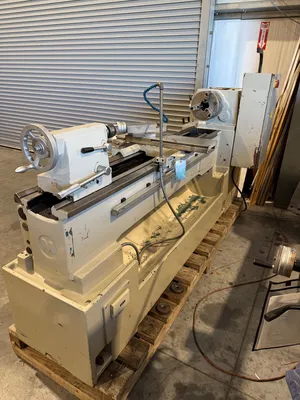

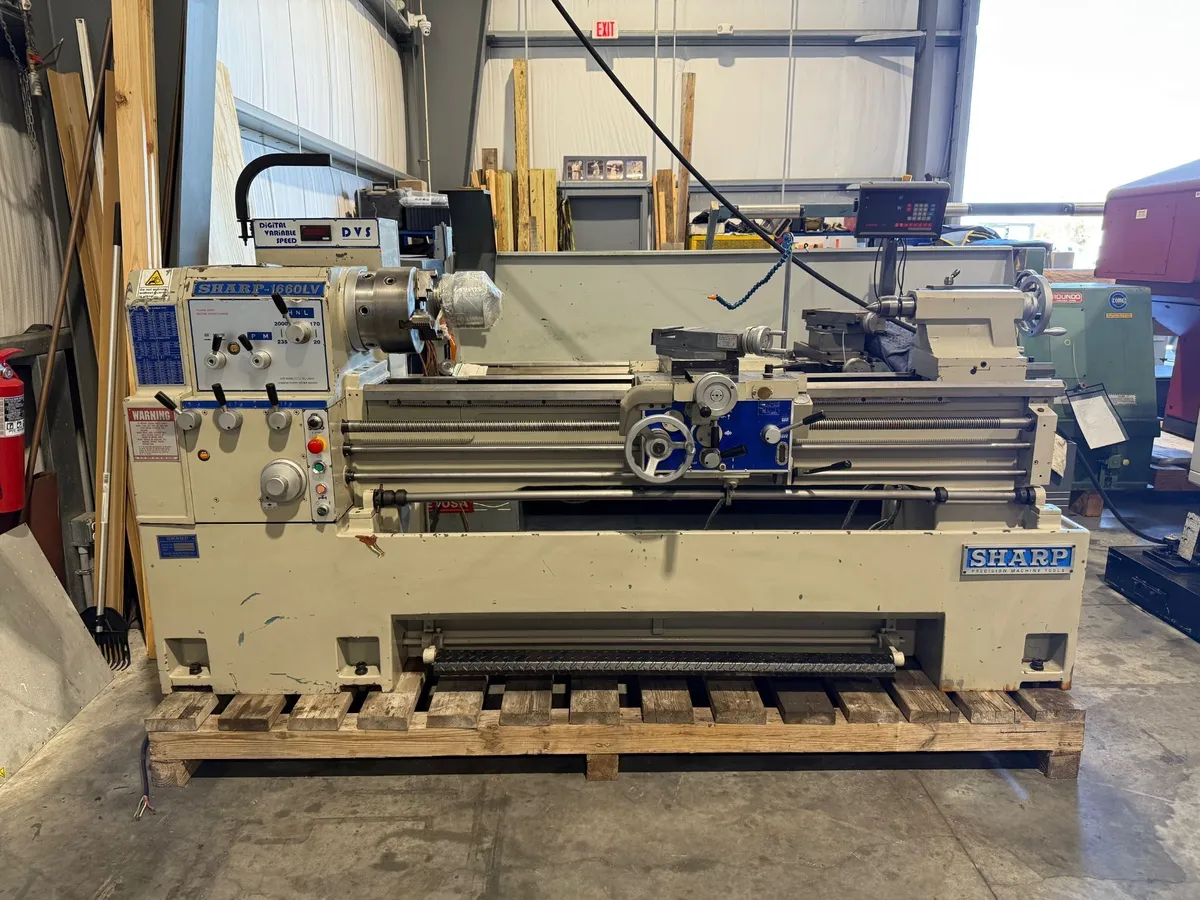

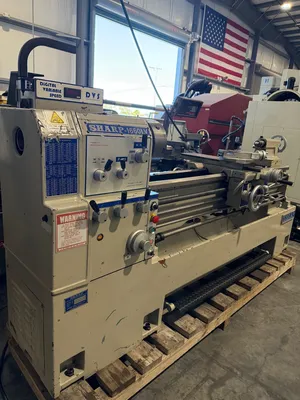

SHARP 1660LV 16”/24” x 60”cc Variable Speed Precision Gap Lathe 2004’ 8170

SHARP 1660LV 16”/24” x 60”cc Variable Speed Precision Gap Lathe 2004’ 8170
Reference # 8170

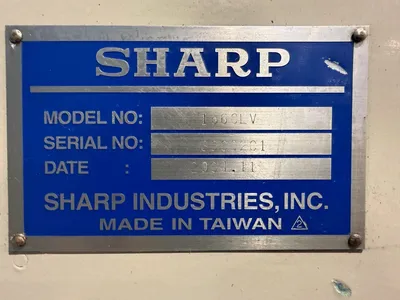

Model # 1660LV
Serial # 3303201
Year of manufacture- 11/2004’
Swing over bed- 16”
Swing over gap- 24.38”
Swing over cross slide- 8.75”
Distance between centers- 60”

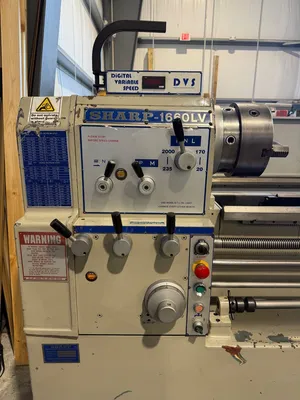

Spindle speeds- 20 – 2000 R.P.M.
Spindle nose- D1-8 camlock
Spindle bore- 3.14”

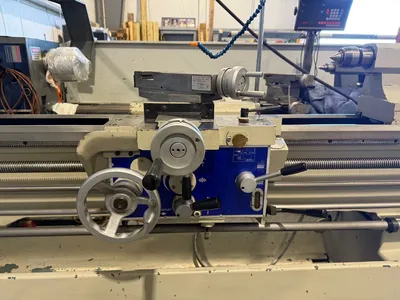

Cross slide travel- 8.7”

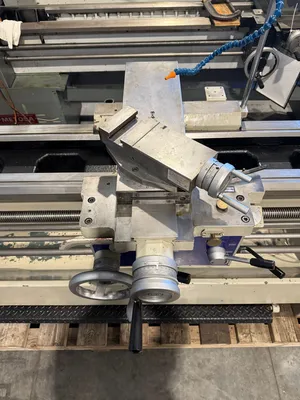

Compound slide travel- 4.9”
Cross slide width- 7.2”
Bed width- 11.75”
Inch threads- 4 – 56 T.P.I.
Metric threads- 0.5 – 7 mm
Longitudinal feeds- 0.002 – 0.03 in/rev
Cross feeds- 0.0008 – 0.011” in/rev

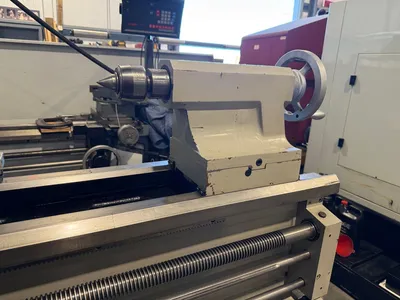

Tailstock quill travel- 5”
Tailstock quill diameter- 2.28”
Tailstock quill taper- # 4 morse taper
