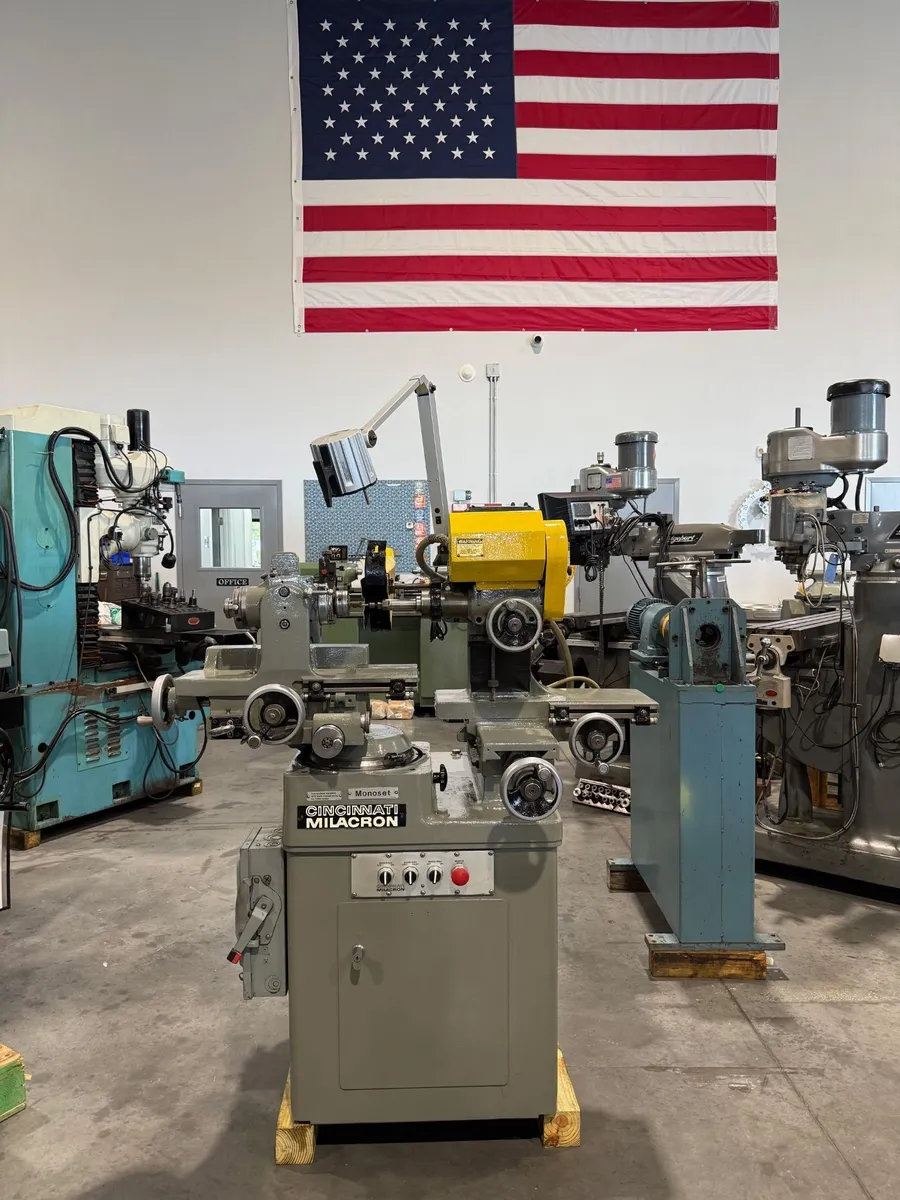

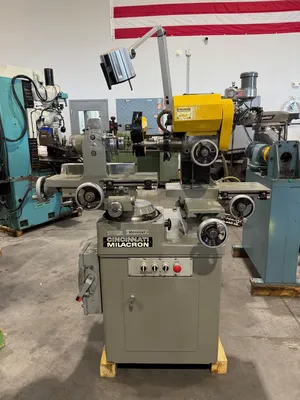

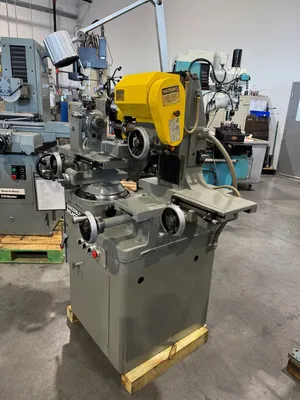

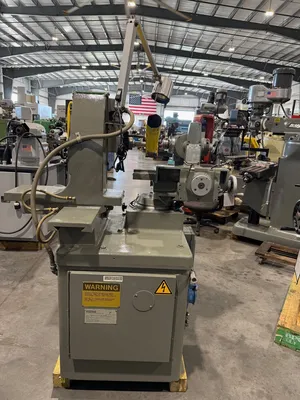

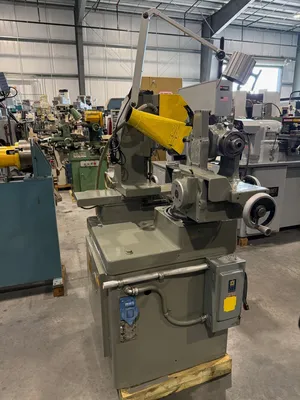

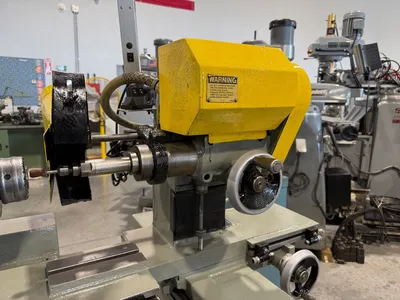

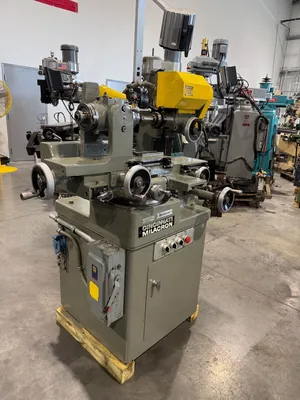

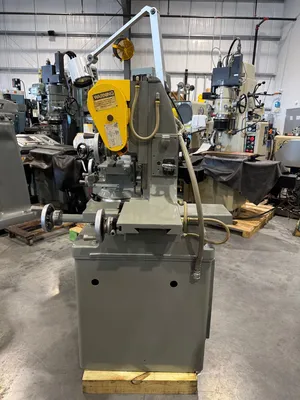

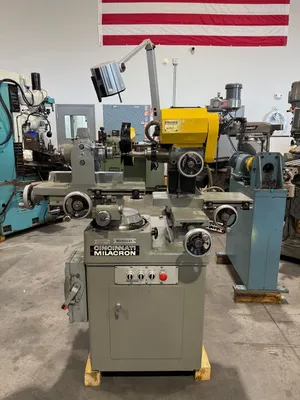

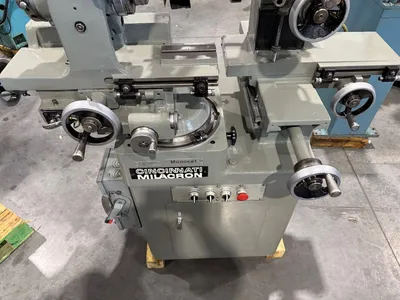

CINCINNATI MILACRON Monoset Tool & Cutter Grinder USA #8190

CINCINNATI MILACRON Monoset Tool & Cutter Grinder USA #8190
Reference #8190
Model # Monoset

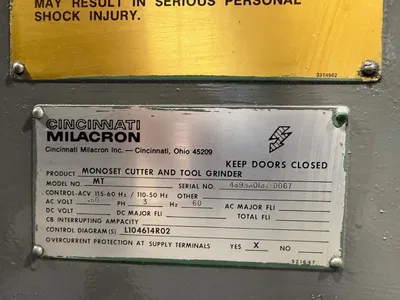

Serial #4898A0187-0067
Year of manufacture- 1987'
Capacity:
Workhead swing over main slide, maximum diameter- 12”
Maximum/Minimum workhead collet hole diameter- 1-1/4"/ 0.12"
Maximum grinding wheel diameter- 4”
Maximum length of work between spindle and tailstock center- 6”
Range:
Workhead slide travel:
Longitudinal- 5-3/4”
cross, offset slide, total travel- 5-1/4”
front of center- 3”
rear of center- 2-1/4”
Workhead spindle rotation- 360°

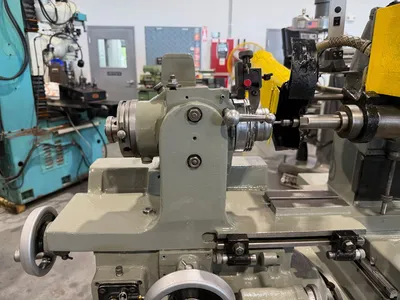

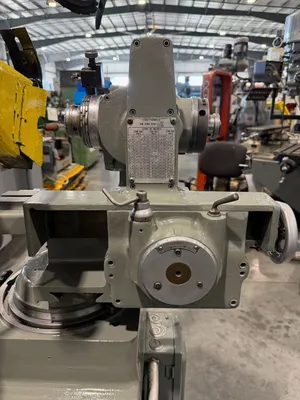

Workhead angular adjustments:
maximum turntable swivel- 235°
above and below center- 40°
Wheelhead slide travel:
Longitudinal- 6”
Cross- 7-1/2”
Wheelhead, vertical movement:
above center- 4.5”
below center- 5”
Speeds:
(3) Wheelhead spindle speeds- 4000, 5729, 8000 R.P.M.
(1) Workhead spindle speed- Manual with external motor
