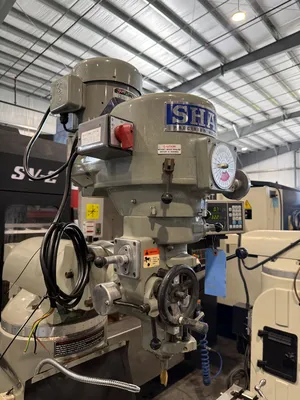

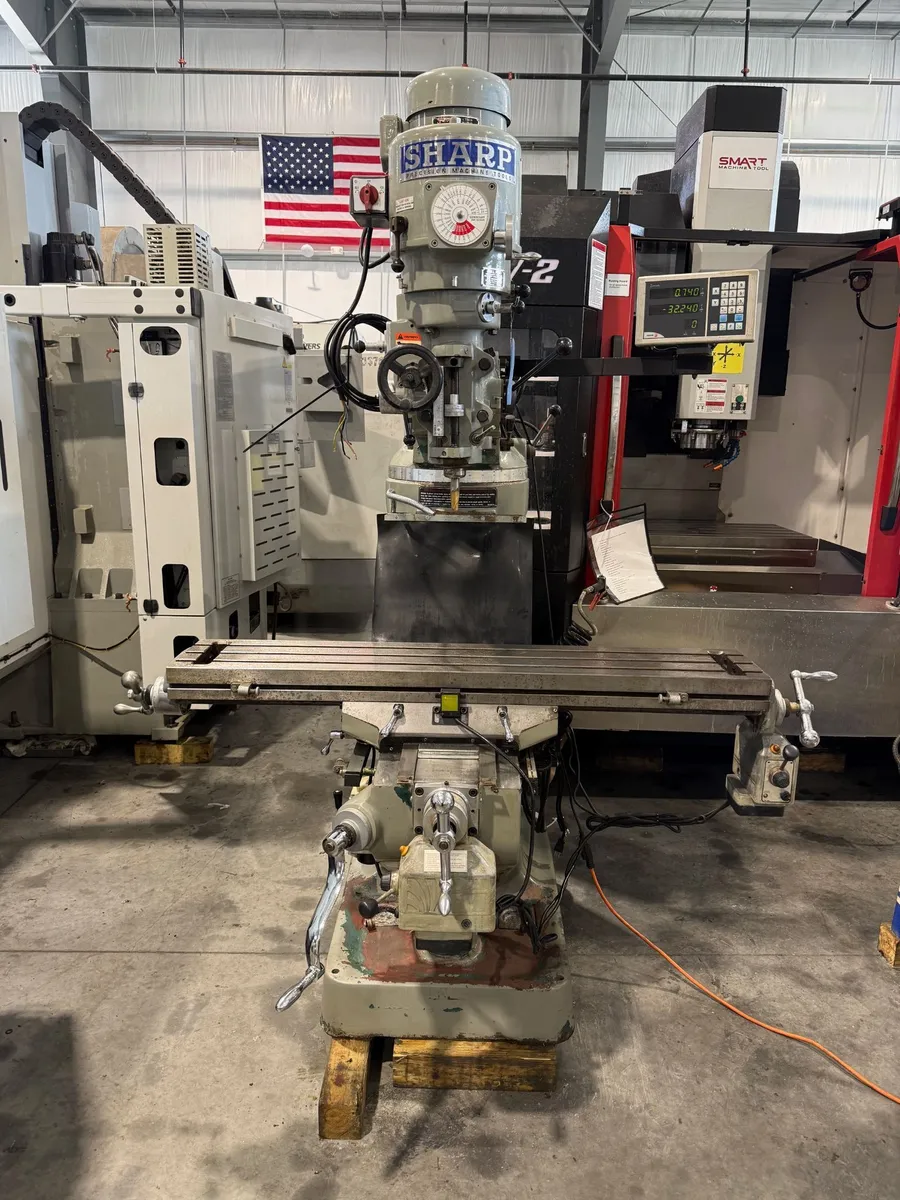

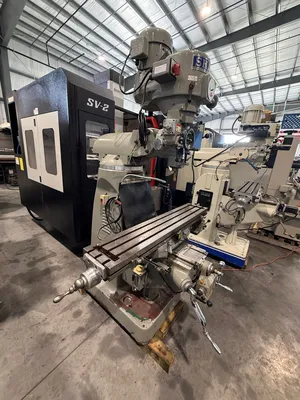

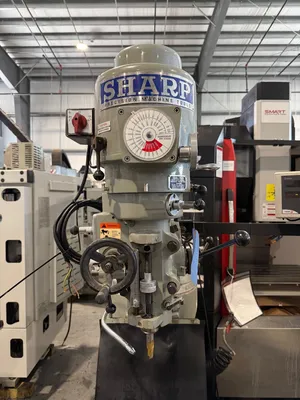

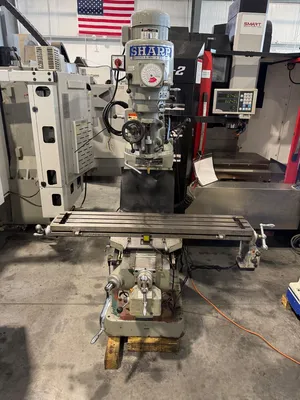

SHARP LMV-50 Vertical Milling Machine 2 Axis DRO 2009’ #8198
SHARP LMV-50 Vertical Milling Machine 2 Axis DRO 2009’ #8198
Reference #8198

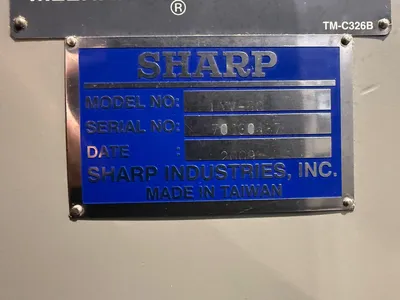

Model # LMV-50
Serial # 70330437
Year of manufacture- 2009’

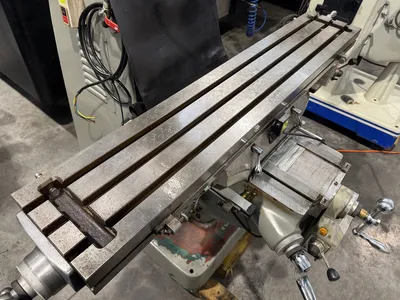

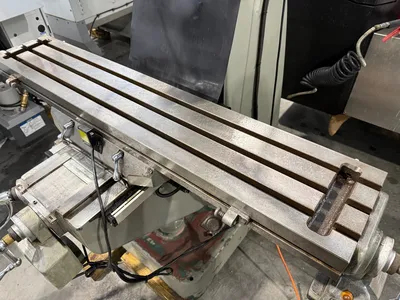

Working surface- 9” x 50”
Number of T slots- (3) / 5/8”
Longitudinal travel- 37”
Cross travel- 12”
Ram travel- 12”
Quill travel- 5”
Knee travel- 16”
Spindle center to column 6.75”-18.5”
Vertical spindle to nose to table top- 2.13” – 18”
Spindle taper- R-8
Spindle speed range- 60 – 4,500 R.P.M.
Quill feed- .0015, .003, .006
Head tilt right to left- 90°
Head tilt up and down- 45°
FAGOR 2 Axis Digital Read out
Power feed on X & Y axis
One shot lubrication system
3 H.P. Motor 220 / 440 volt
Machine is currently wired for 220 volt / 3 phase/ 60 H.Z.
Machine weight- 2400 Lbs.
Machine dimensions- 60” x 55” x 83”
