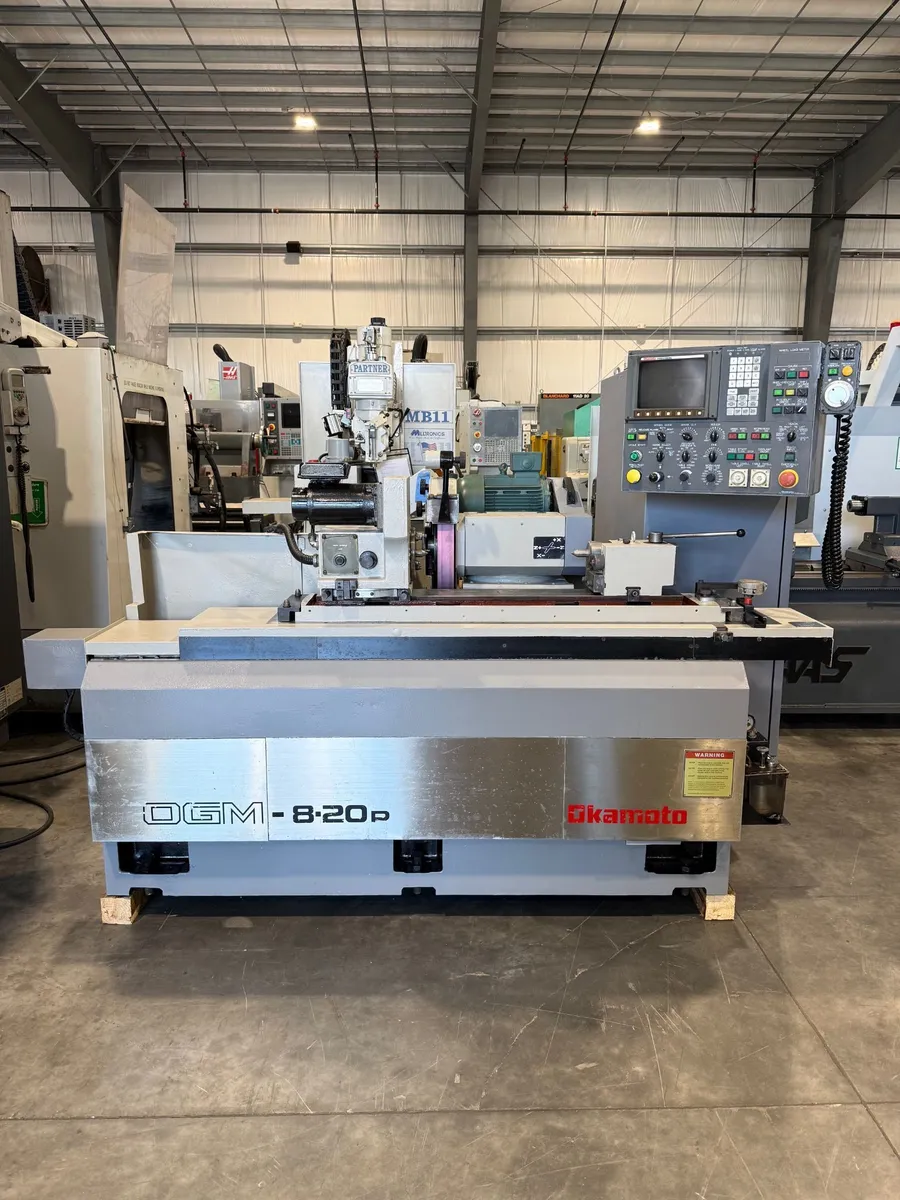

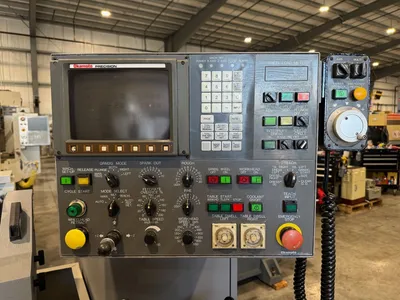

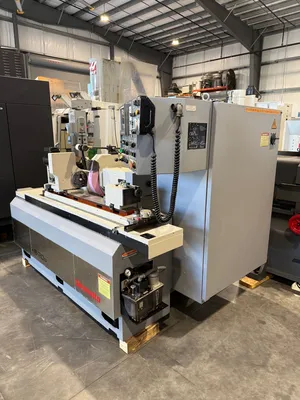

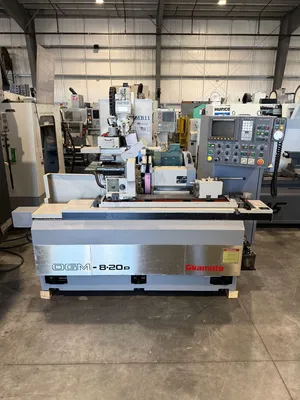

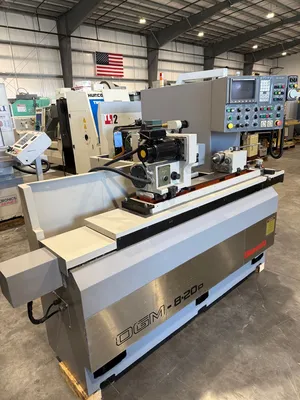

8.66” x 20” OKAMOTO O.D Cylindrical Grinder with FANUC “Precise” Control #8200

8.66” x 20” OKAMOTO O.D Cylindrical Grinder with FANUC “Precise” Control #8200
Reference # 8200

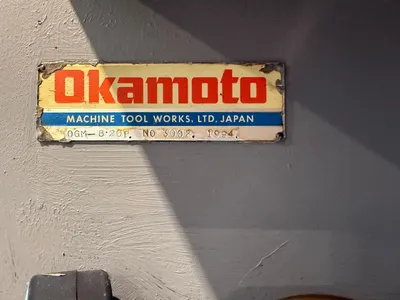

Model # OGM-8.20P
Serial # 3002
Year of manufacture- 1994’
Swing over table- 8.66”
Distance between centers- 19.68”
Maximum work piece diameter- 7.87”
Maximum weight between centers- 44 Lbs.
GRINDING WHEEL-
Size- 12” x 1” x 5”
Speeds (3)- 1880 / 2010 / 2210 RPM

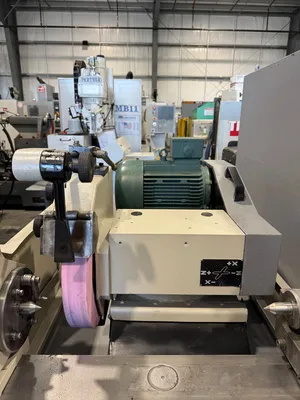

WHEELHEAD-
X Axis Travel- 7.87”
Swivel angle- +/- 30°
Least travel increment- 0.00001”
Continuous feed rate- 0.0001” – 157.48”
Rapid feed rate- 157.48”
TABLE-
Z Axis travel- 25.59”
Swivel angle- -4° to 9°
Least travel increment- 0.00001”
Continuous feed rate- 0.0001” – 157.48”
Rapid feed rate- 157.48”

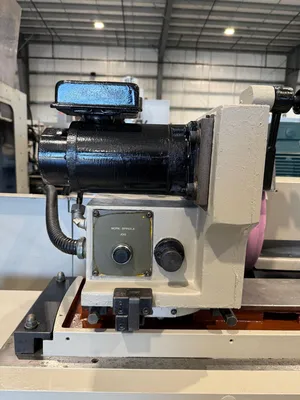

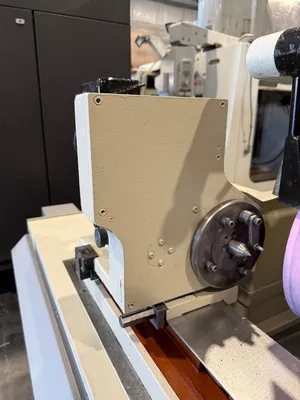

WORKHEAD-
Spindle taper- #3 Morse Taper
Spindle bore- .068”
Spindle speed- 15 – 500 RPM
Swivel angle- -30° - 90°

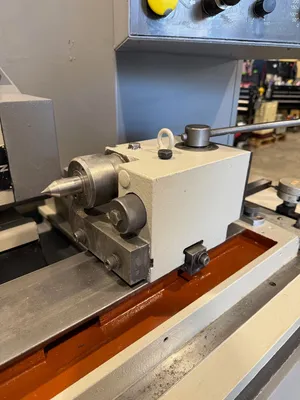

TAILSTOCK-
Stroke- 0.78”
Taper-#3 Morse Taper
