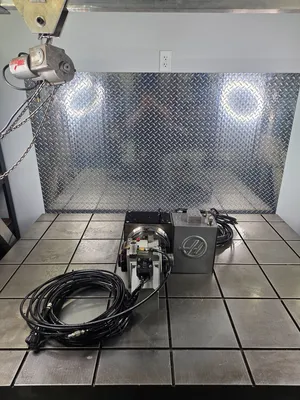

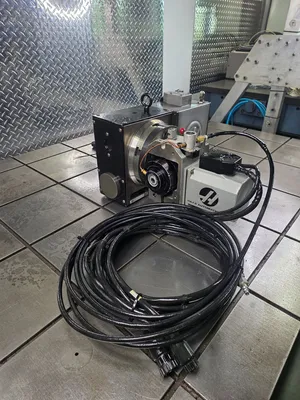

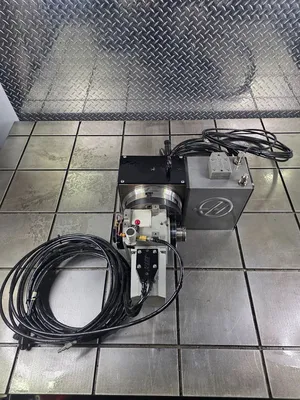

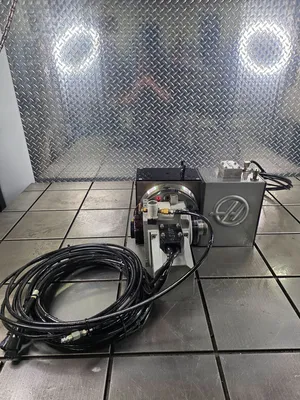

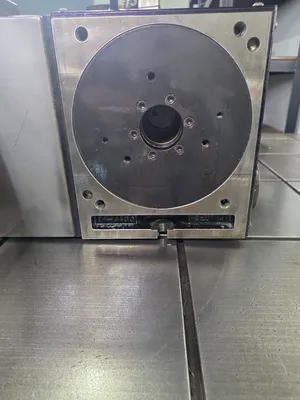

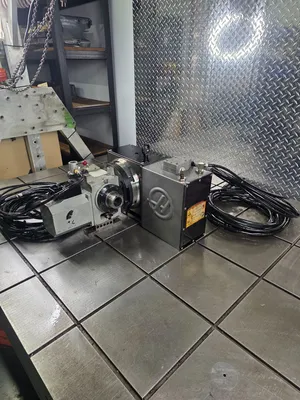

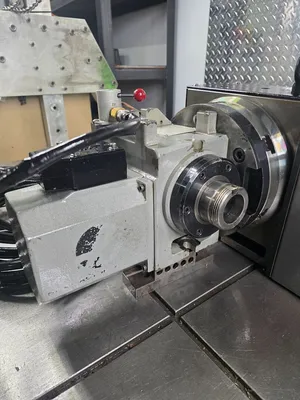

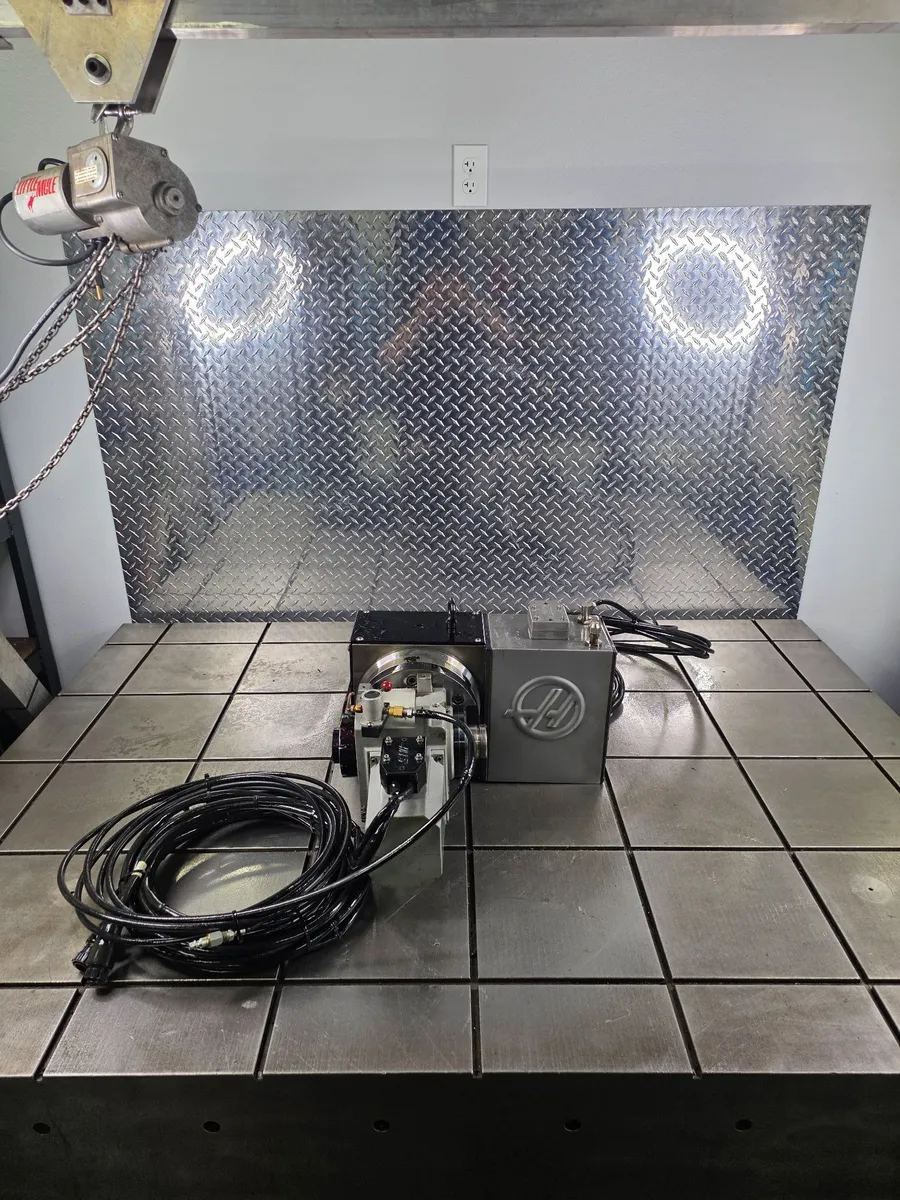

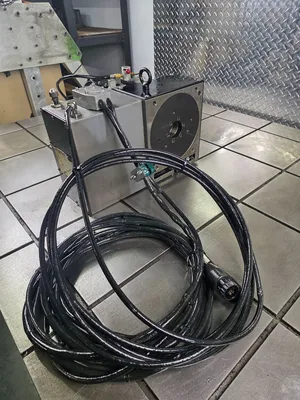

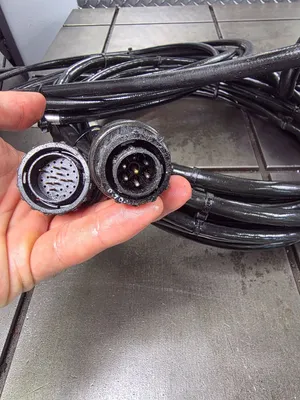

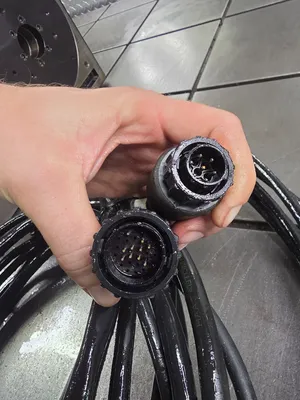

HAAS T5C CNC Tilting Indexer 2-Axis Rotary Unit USA #8205

HAAS T5C CNC Tilting Indexer 2-Axis Rotary Unit USA #8205
Reference #8205
Model # T5C (A) & ST5C (B)

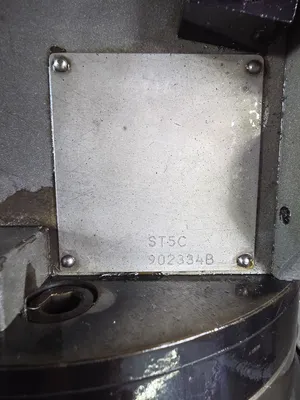

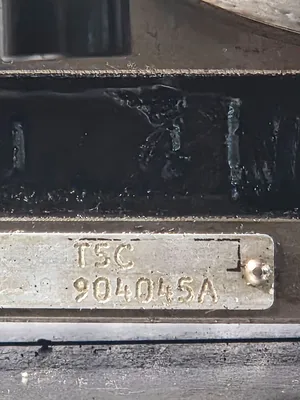

Serial # 904045A & 902334B
Max Weight on Platter- 5 lbs
Spindle - A (tilt):
Max Speed- 60 °/sec
Torque (Continuous)- 210 ft-lbf
Runout Max- 0.0005 in
Backlash- 30 arc-sec
Center Height- 6.000 in
Gear Ratio- 90:1
Timing- 2:1
Brake Torque @ 100 psi/6.9 bar 200 ft-lbf

Spindle - B (rotary):
Max Speed- 410 °/sec
Torque (Continuous)- 60 ft-lbf

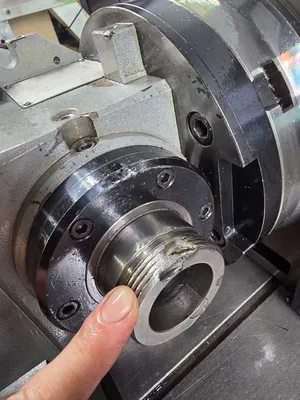

Nose Thread- 2 3/16 in - 10
Runout Max- 0.0004 in
Backlash- 40 arc-sec
Center Height- 6.000 in
Gear Ratio- 60:1
Collet Size- 5C

Indexing - A (tilt):
Max Rotation/Step- ± 120°
Resolution- 0.001°
Accuracy- ± 15 arc-sec
Repeatability- 10 arc-sec
Worm Gear Diameter- 6.3 in

Indexing - B (rotary):
Max Rotation/Step (with rotary control)- 999.999 °
Resolution- 0.001°
Accuracy- ± 30 arc-sec
Repeatability- 10 arc-sec
Worm Gear Diameter- 2.8 in

General - A (tilt):
Operating Temp (max ambient)- 100 °F

General - B (rotary):
Operating Temp (max ambient)- 100 °F

Air Requirements:
Air Pressure Max- 150 psi
Air Pressure Min- 80 psi
