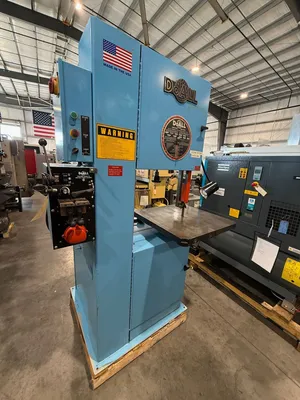

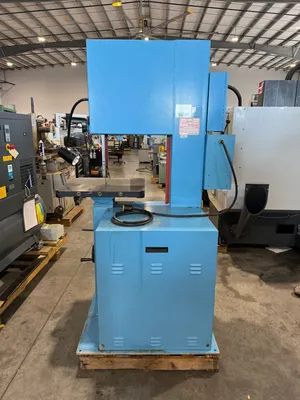

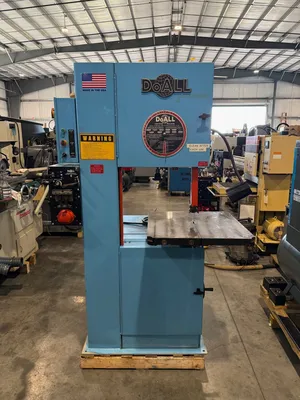

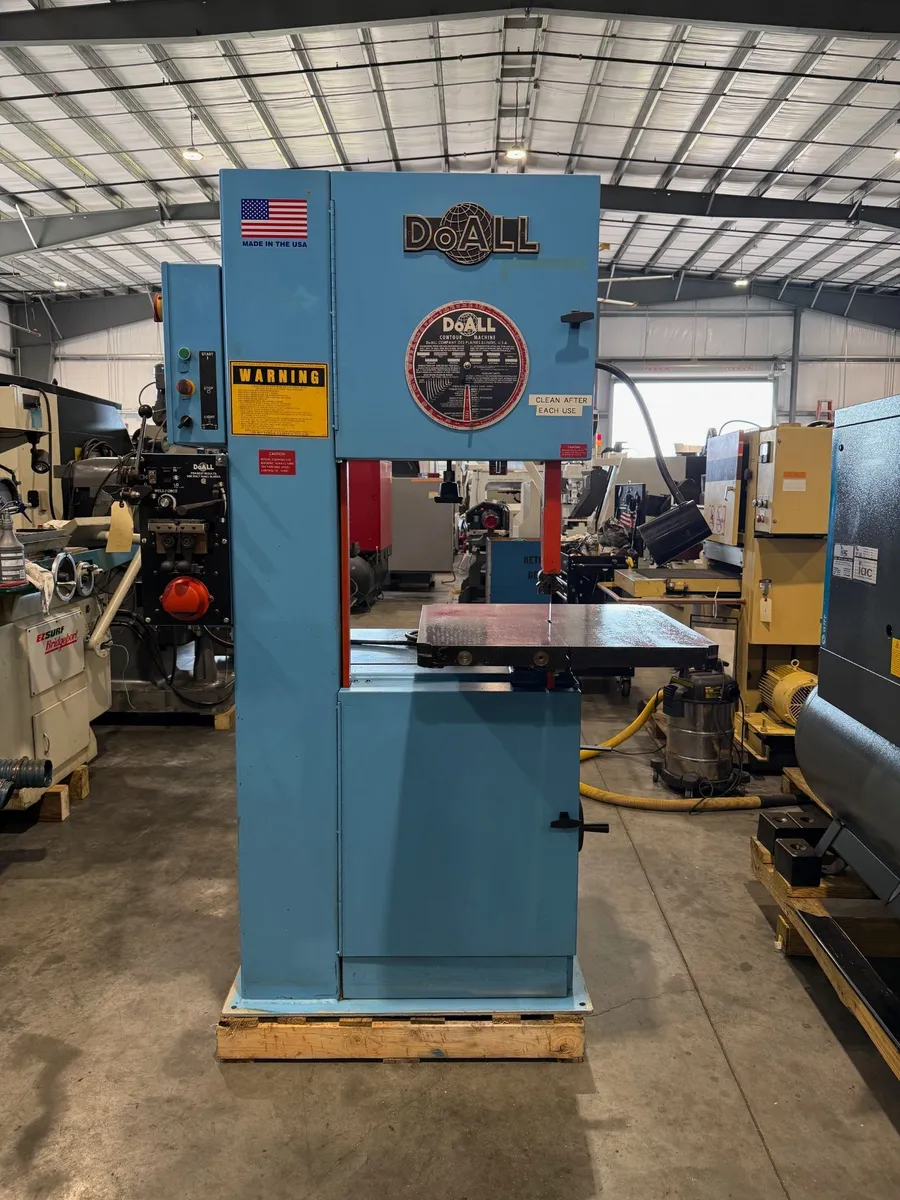

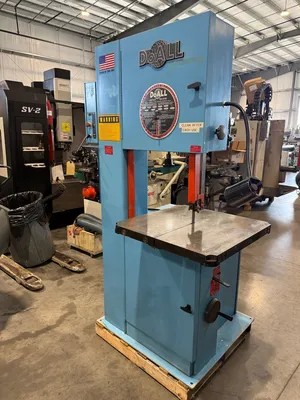

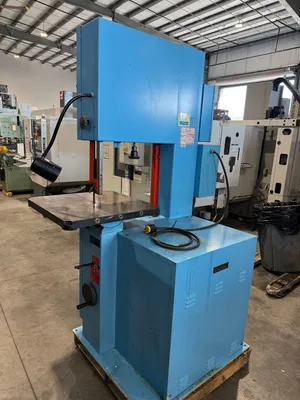

DoALL #2013 20” Vertical Band Saw & Blade welder & Grinder 1993’ #8209
DoALL #2013 20” Vertical Band Saw & Blade welder & Grinder 1993’ #8209
Reference #8209
Model # 2013-V
Serial # 500-93278
Year of Manufacture- 1993
Throat size- 20”
Maximum work height- 13”

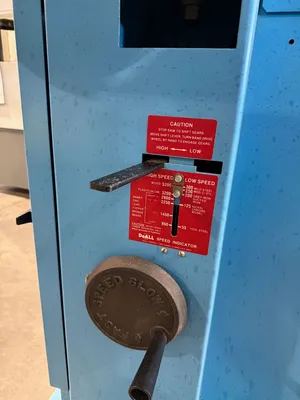

Variable band speeds, two ranges- 55 to 300 & 960 to 5,200 F.P.M
Band width, range- 1/16" to 1"

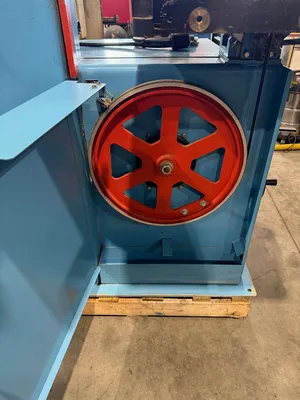

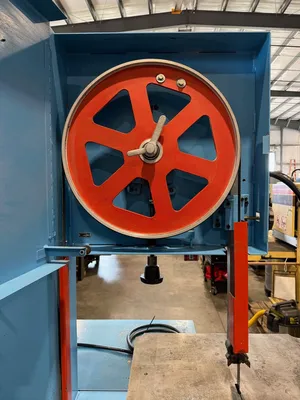

Upper bandwheel adjustment- 3”
Band length- 154"
File length- 153”

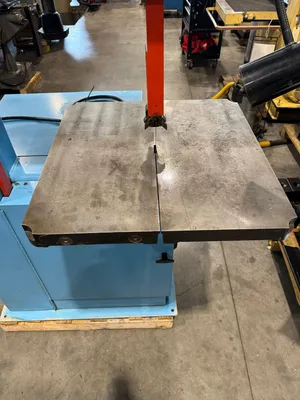

Table size- 26" x 26"
Table tilt- 45 degrees right & 10 degrees left
Machine only cut carbon , never cut metal

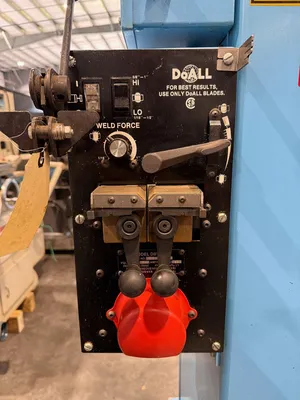

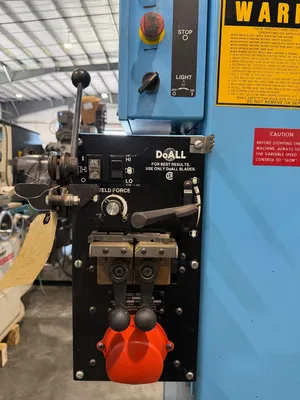

DoAll Blade Welder & Grinder and Shear
Dual range transmission
Work light

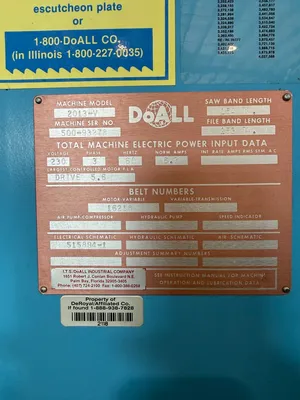

2 H.P. 3/60/230 blade drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 1,500 Lbs.
Machine dimensions- 53” L x 45” W x 80” H
Machine location- F.O.B. Sarasota, Florida
