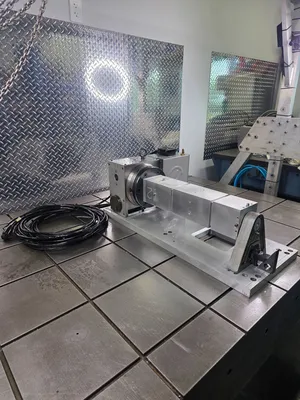

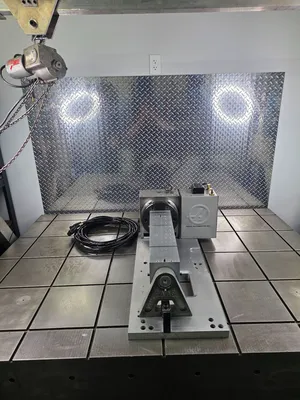

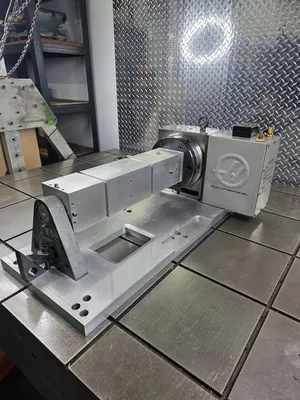

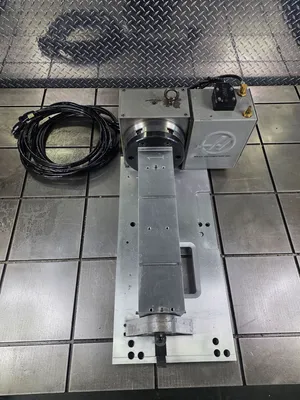

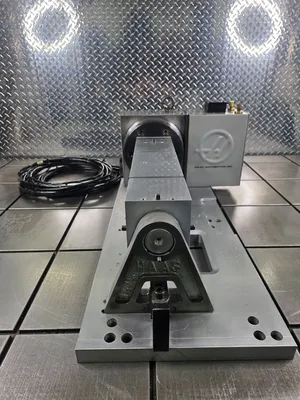

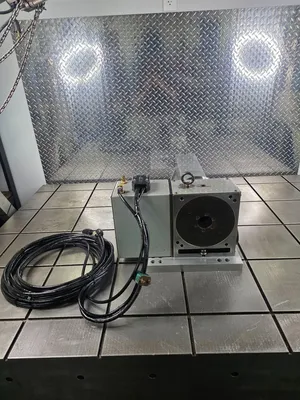

HAAS HRT-210 CNC Rotary Table 4-Axis Type 4 Station Platter & Support USA #8208
Have one to sell?
$9,450.00 USD
ConditionUsed
1 available

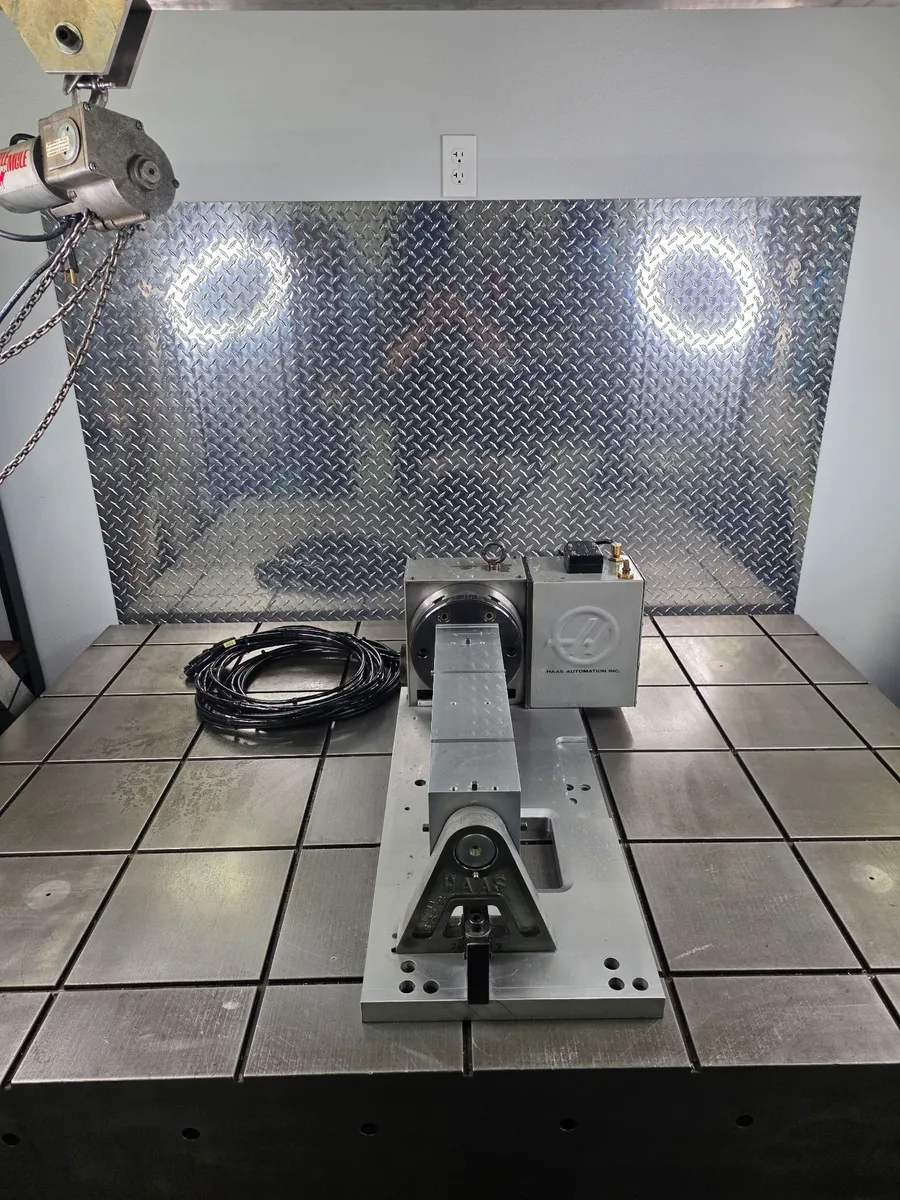

HAAS HRT-210 8.3” CNC Rotary Table 4th Axis Type 4 Station Platter & Support USA #8208
Base ST5C2H Removed from T5C2 unit
HAAS HRT-210 8.3” CNC Rotary Table 4th Axis Type 4 Station Platter & Support USA #8208
Reference #8208

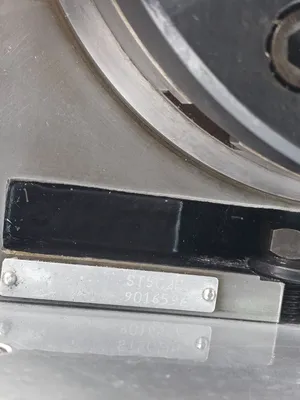

Model # ST5C2H
Serial # 901659A
Table diameter- 8.3”
Max weight on platter supported- 170 Lbs.
Max weight on platter unsupported- 85 Lbs.
Max spindle speed- 100° sec
Torque- 210 Ft-Lbf
Runout max- 0.0005"
Center height- 6.00"
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 200Fl-Lbf
Gear ratio- 90:1
Timing- 2:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter-6.3”
Max rotation / step- 999.999°
Pneumatic brake
Machine weight- 250 Lbs.
Machine dimensions- 19” x 7-1/4” x 13” H
Machine location- F.O.B. Sarasota, Florida
