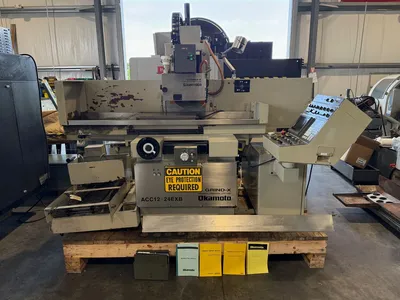

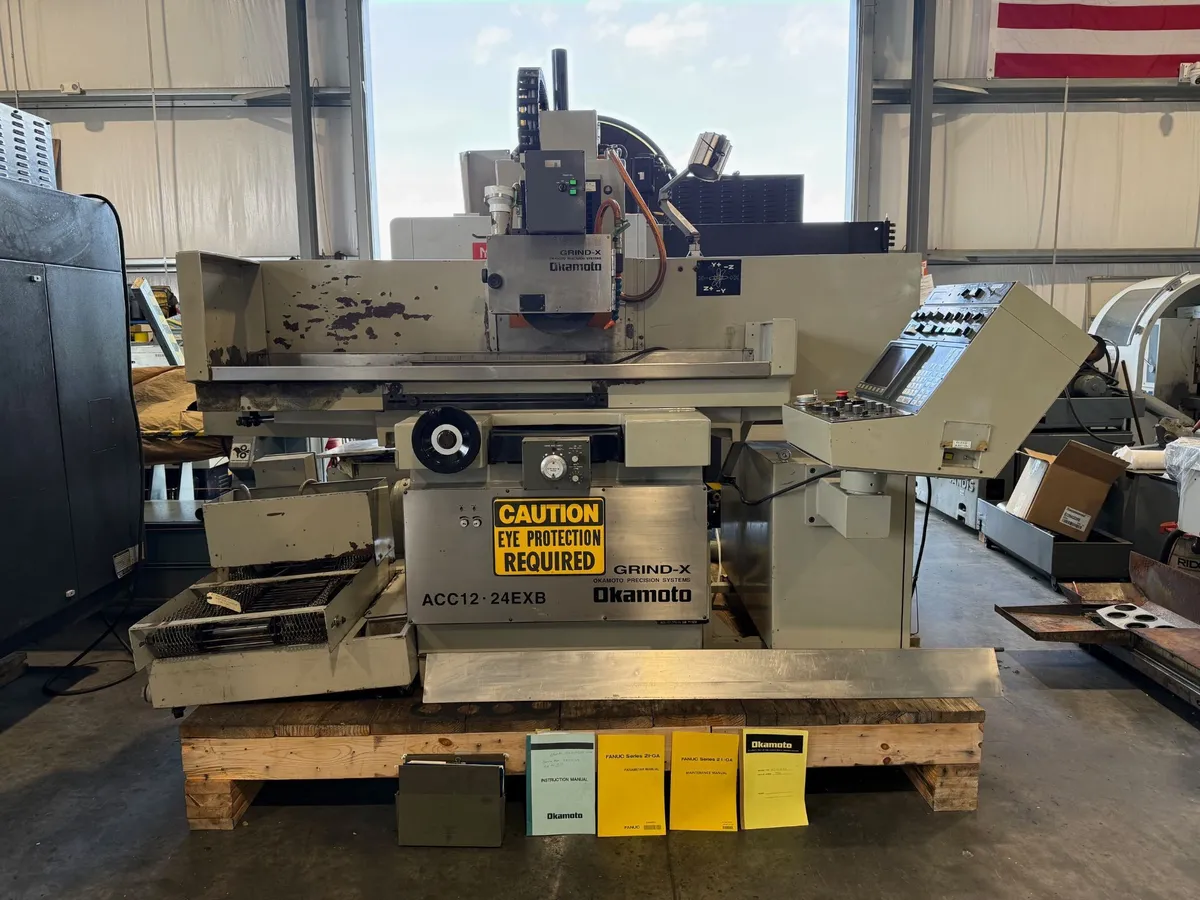

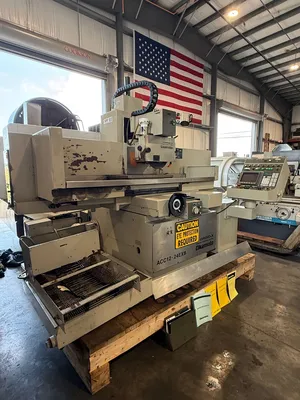

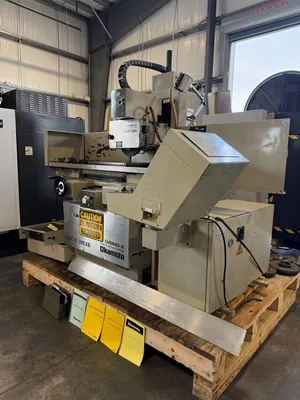

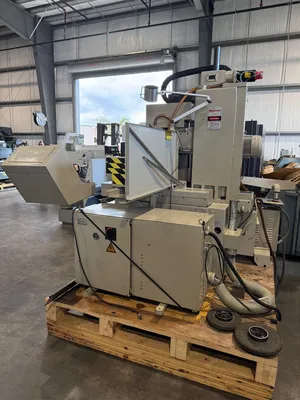

OKAMOTO ACC-12.24EXB 12” x 24” CNC Surface Grinder 2006’ #8224
Have one to sell?
$34,500.00 USD
ConditionUsed
1 available
OKAMOTO ACC-12.24EXB 12” x 24” CNC Surface Grinder 2006’ #8224
OKAMOTO ACC-12.24EXB 12” x 24” CNC Surface Grinder 2006’ #8224
Reference # 8224
Model # ACC-12.24EXB

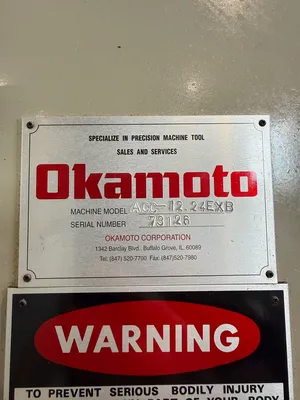

Serial # 73126
Year of manufacture- 2006’
Table working capacity- 12" x 24"
Maximum grinding width- 12"
Maximum grinding length- 24"
Maximum distance from underside of 13.6”
Maximum weight of workpiece on table- 1,540 Lbs.
Hydraulic longitudinal feed- 3 to 82 F.P.M.
Hydraulic intermittent cross feed- .02 to 0.8 I.P.M..
Automatic downfeed traverse and plunge cut- .00005" - .0015"
Graduation of crossfeed handwheel- .001"
Graduation of vertical handwheel- .001"

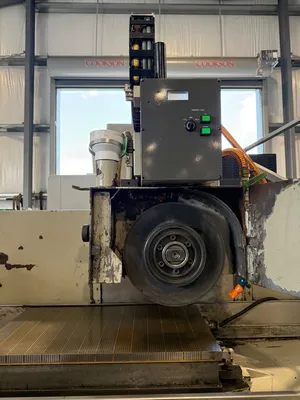

Grinding wheel size- 12" diameter x 5" bore x 1.5" width
Grinding wheel speed- 3,600 R.P.M.

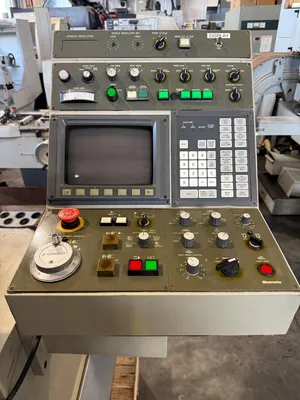

FANUC O-M CNC Control
Hydraulically actuated longitudinal and cross feeds

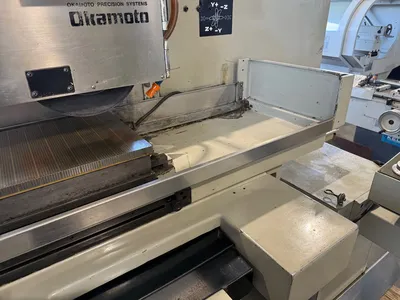

Double vee way table construction
Servo driven automatic incremental down feed of grinding wheelhead in programmable
coarse and fine increments from 0.00005" to 0.0015" in both the plunge and surface
grinding modes of operation
Automatic cycle with sparkout timer from 0 to 5 passes
Electronic handwheel for manual vertical movement with each graduation equivalent to
.00001", .0001" or .001"
Motorized power rapid traverse to grinding wheelhead

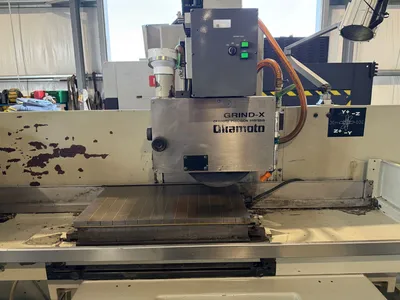

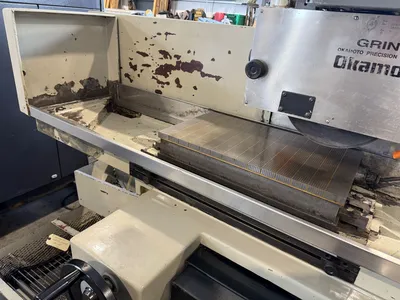

12” x 24” electromagnetic chuck with variable hold control
(5) Leveling pads

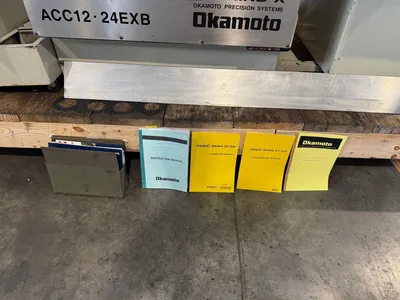

Machine manuals & Schematics
½ H.P. External coolant pump and tank
1/2 H.P. AC Servo feed motor
3 H.P. 3/60/230/460 volt hydraulic pump motor
5 H.P. 3/60/230/460 volt spindle drive motor and electrical controls
Machine is wired for 230 Volt operation
Machine weight- 5,500 Lbs.
Machine dimensions- 108" L-R x 75" F-B x 73" H
Machine location- F.O. B. Sarasota, Florida
