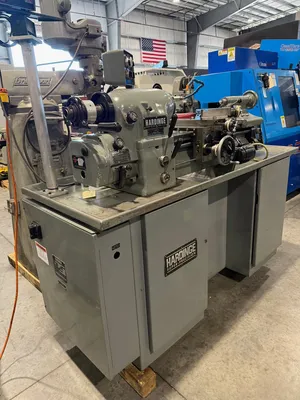

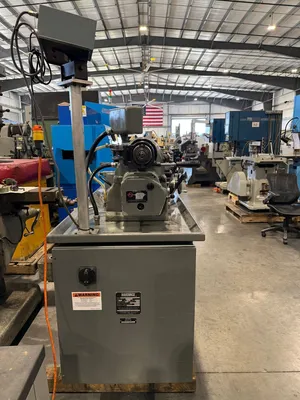

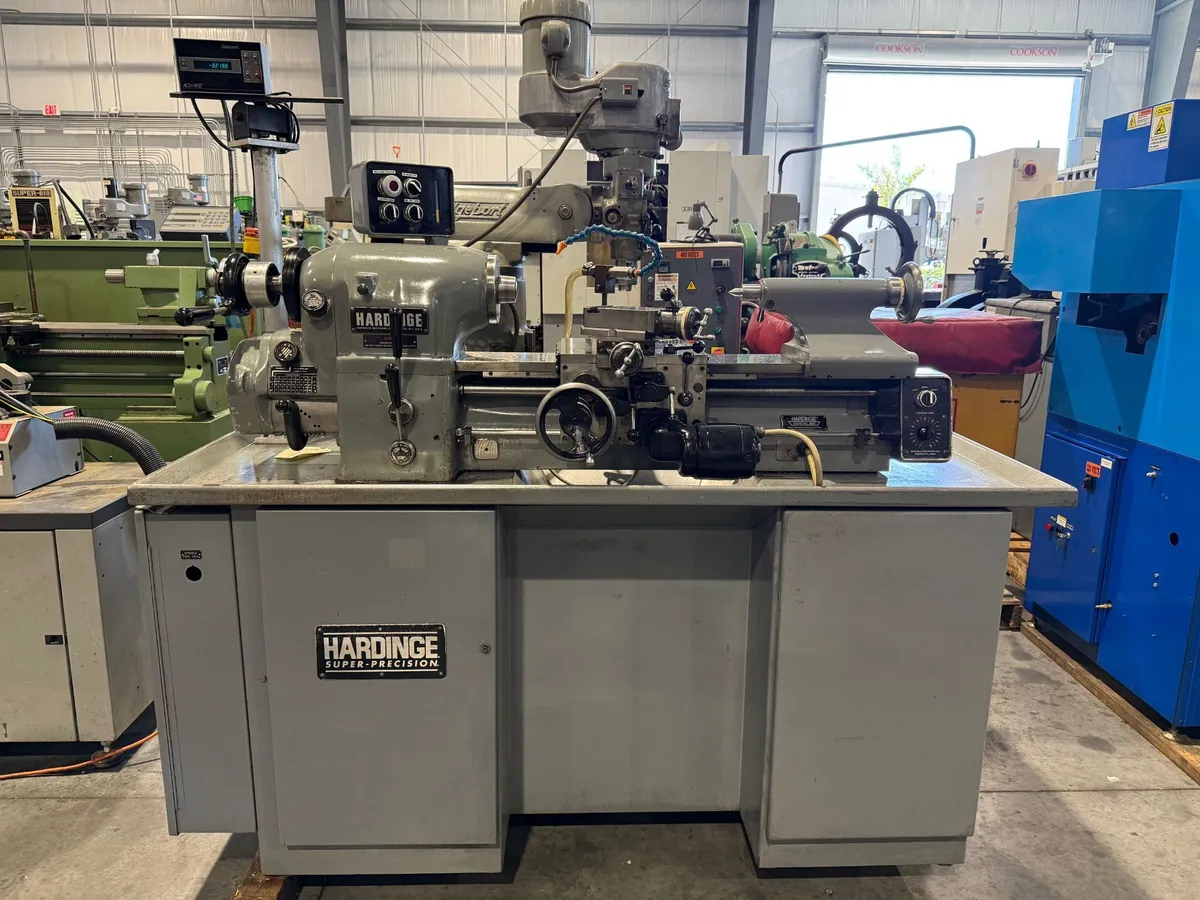

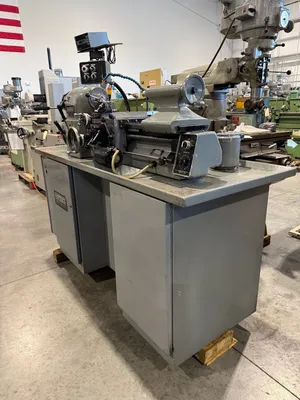

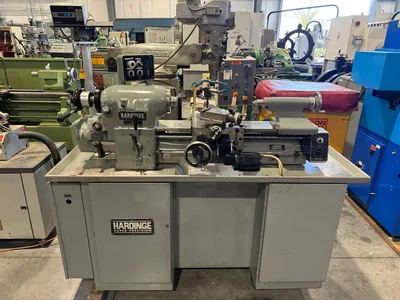

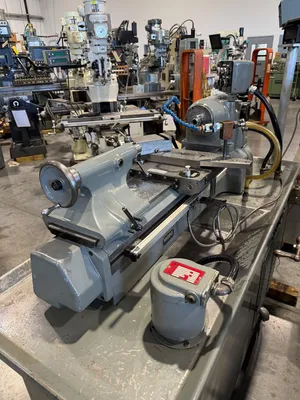

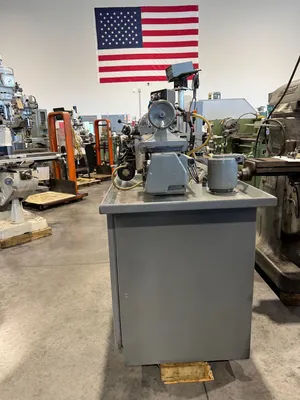

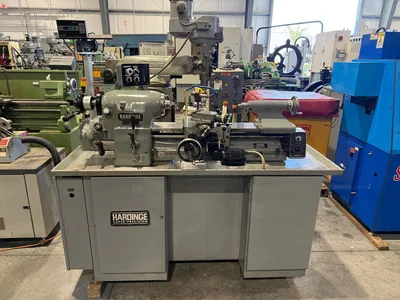

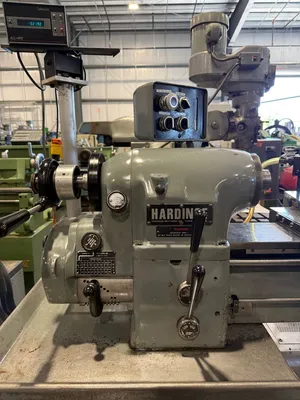

HARDINGE HLV-H Super Precision Tool Room Lathe 1997’ #8249

HARDINGE HLV-H Super Precision Tool Room Lathe 1997’ #8249
Reference #8249
Model # HLV-H

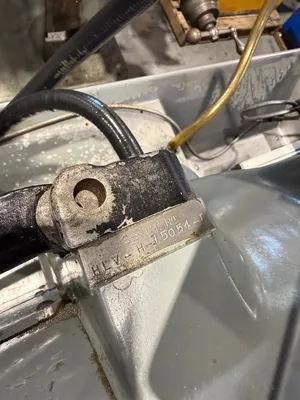

Serial # 15054-T
Year of manufacture- 1997’

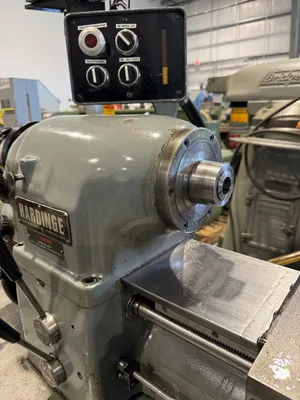

Spindle construction- HARDINGE ball bearing
Spindle nose- HARDINGE taper

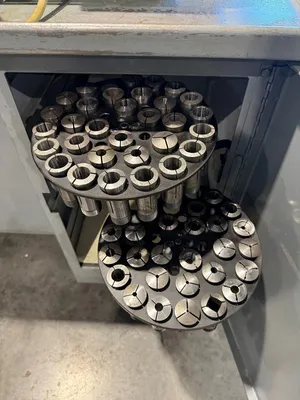

Spindle capacity with round type 5C collets- 1-1/16"
Spindle capacity with step chucks- 1-1/16" to 6"
Spindle capacity with jaw chucks- 5”
Spindle capacity with expanding collets- 3”
Variable spindle speeds- 125 - 3,000 R.P.M.
Hole through spindle- 1-1/4”
Swing over bed- 11”
Swing over carriage- 9”
Swing over cross slide- 6”
Distance between centers- 18”

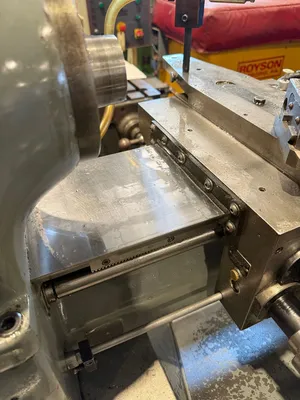

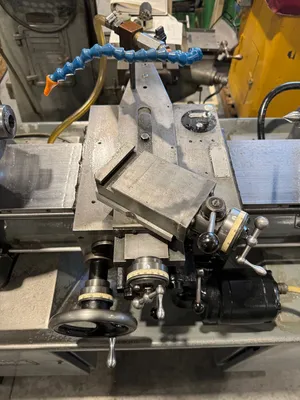

Compound slide travel- 3”

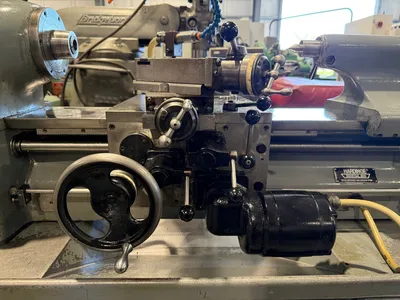

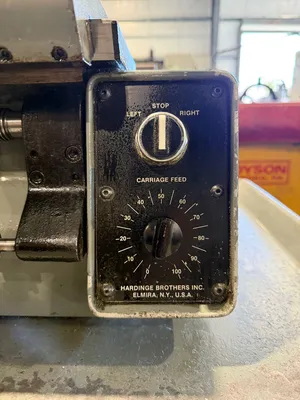

Carriage power feed range- 5/16 – 7 I.P.M.
Cross slide power feed range- 3/16 - 4 I.P.M.

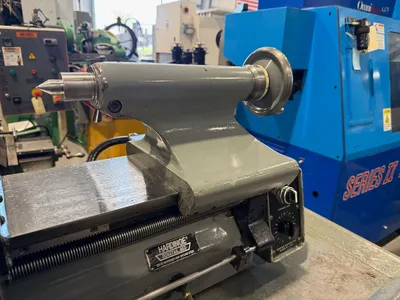

Tailstock spindle diameter- 1-3/8"
Tailstock spindle taper- #2 MT
Inch threading range in gearbox (36)- 11 - 108 T.P.I.
