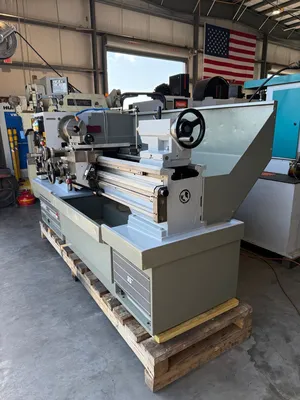

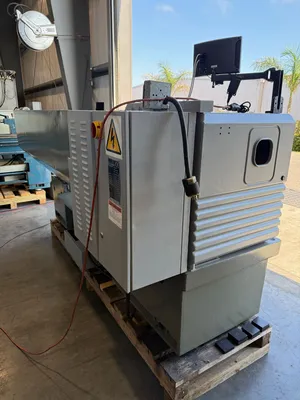

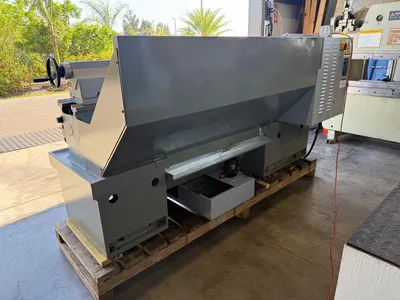

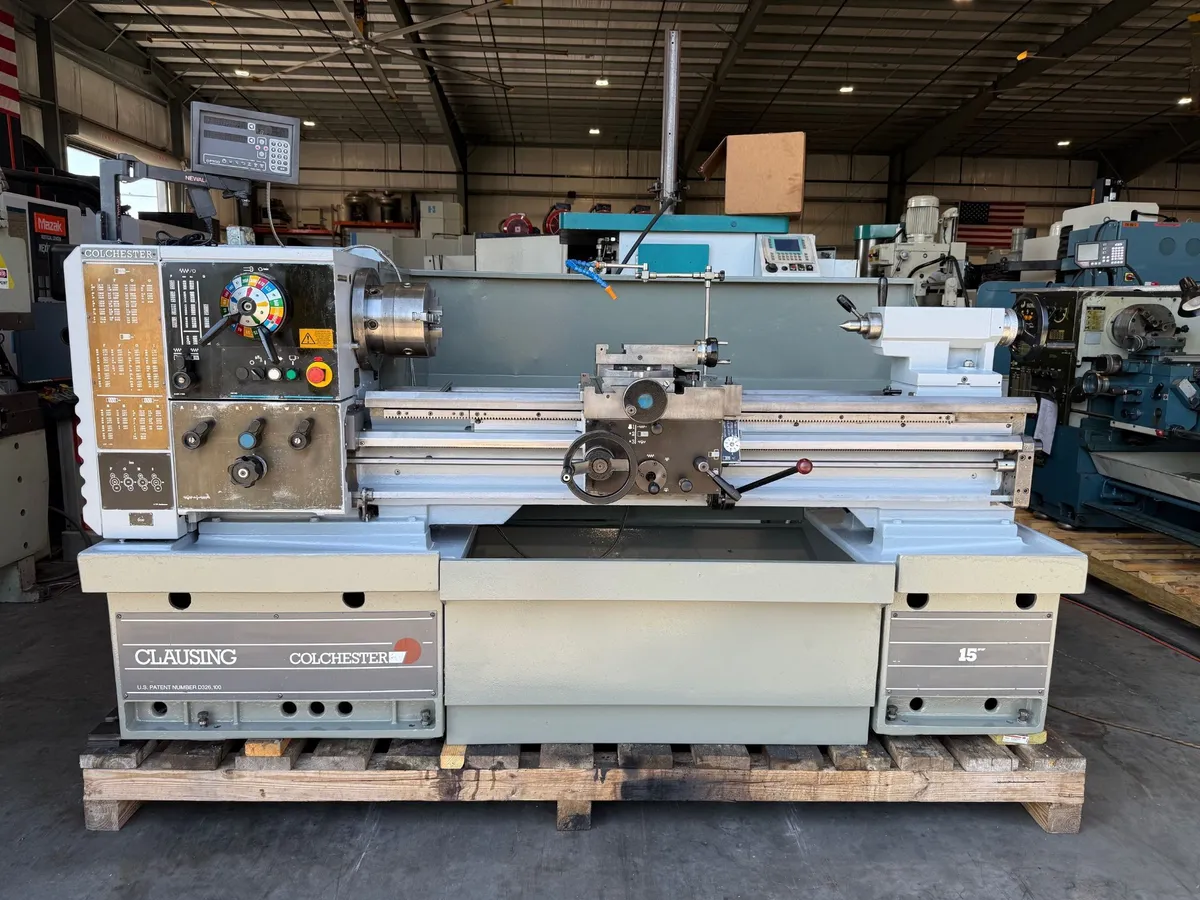

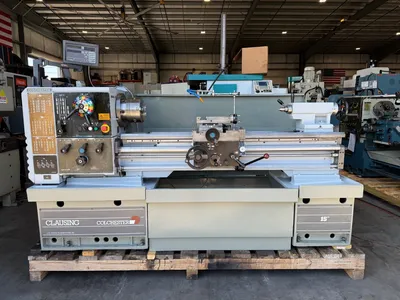

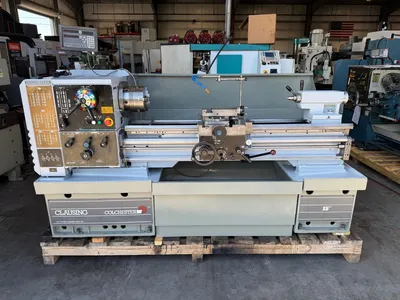

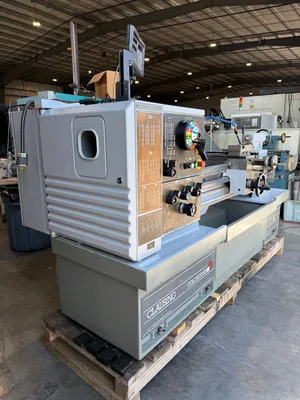

CLAUSING COLCHESTER 15”/23” x 50” cc Removable Gap Lathe 1997’ #8265

CLAUSING COLCHESTER 15”/23” x 50” cc Removable Gap Lathe 1997’ #8265
Reference # 8265
Model # 15” Colchester

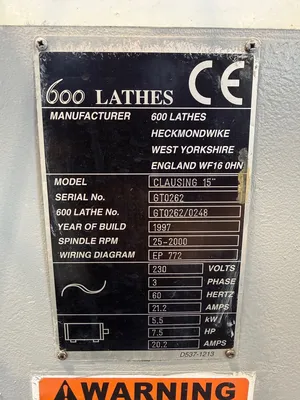

Serial # GT0262/0248
Year of Manufacture- 1997’
Swing over bed- 15-1/4”
Swing in gap- 23”
Swing over cross slide- 9-1/2”
Distance between centers- 50”
Hole through spindle- 2-3/16”
Bar capacity- 2-1/8”

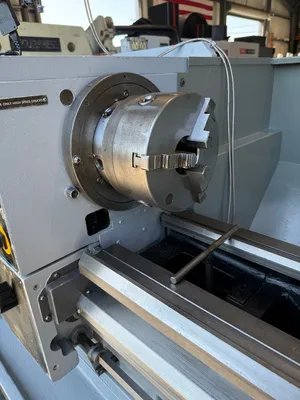

Spindle nose, Camlock, size- D-16
(16) Spindle speeds- 25 – 2,000 R.P.M.

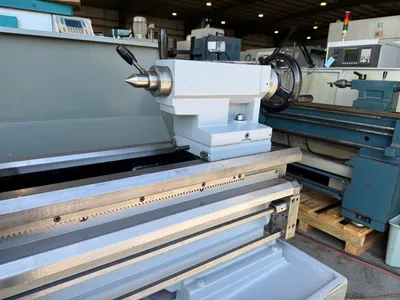

Headstock and tailstock spindle center tapers- #4 Morse
Tailstock spindle travel- 6-1/8”
Tailstock spindle diameter- 2-5/16”

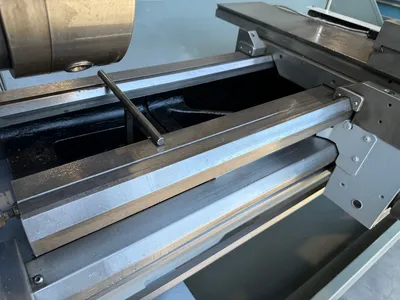

Width of bed- 11”
Longitudinal feed-.0015 - .040 I.P.M.

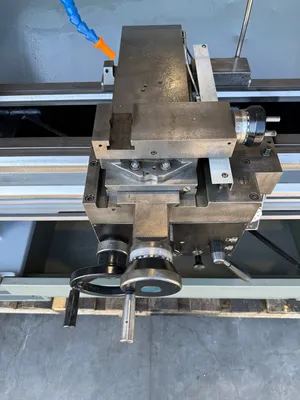

Cross feed- .00075 - .020 I.P.R.
Threads inch (45)- 2 – 56 T.P.I.
Threads metric (39) .2 – 14mm
