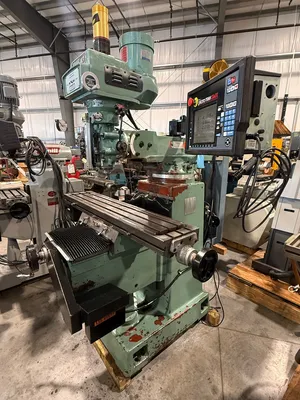

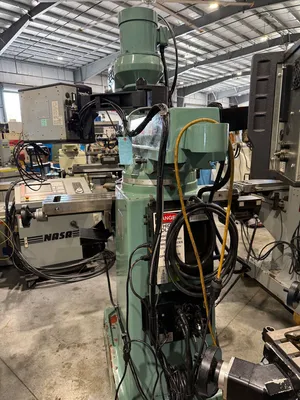

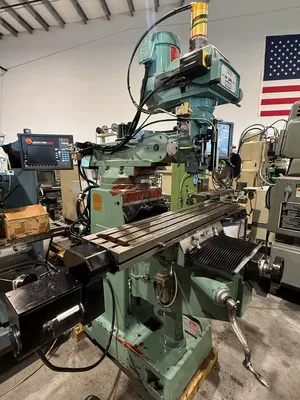

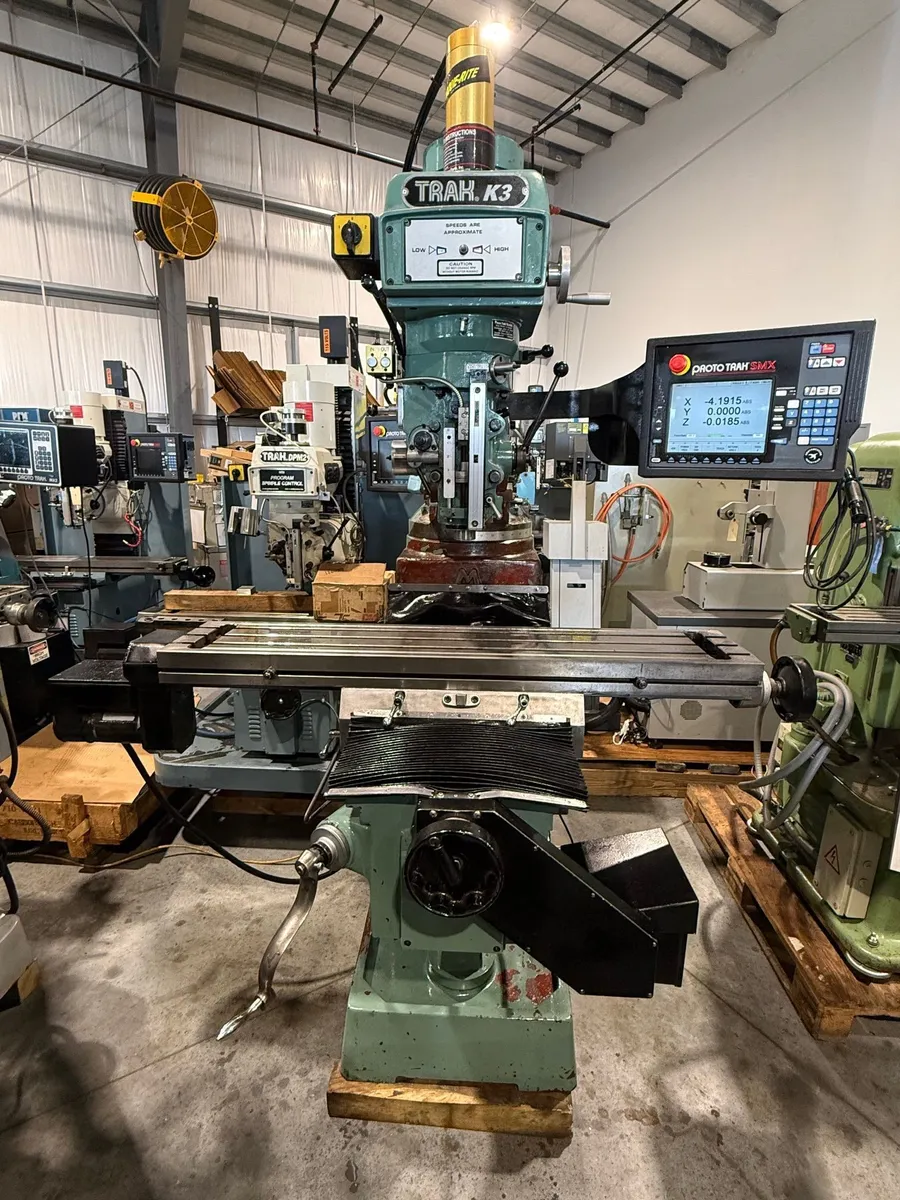

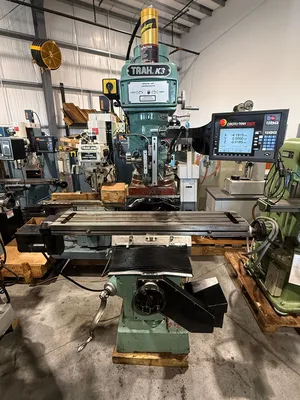

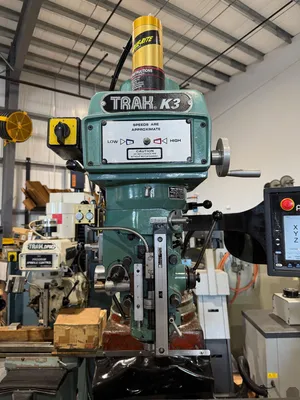

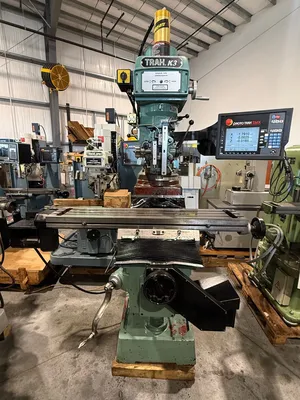

TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2012’ #8274
Have one to sell?
$16,500.00 USD
ConditionUsed
1 available
TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2012’ #8274
TRAK #K3 SX CNC Vertical Milling Machine 2 Axis PROTO TRAK 2012’ #8274
Reference #8274
Model # K3SX
Serial # 121CK64427
Year of manufacture- 2012’

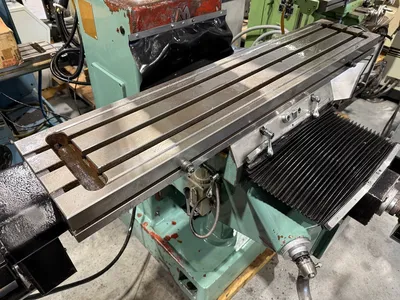

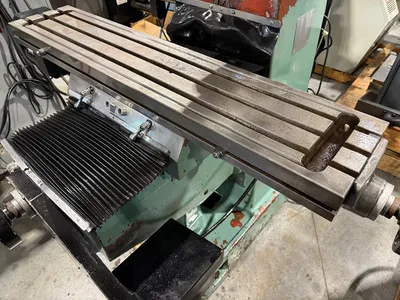

Table size- 50” x 10”
T-Slots- (3) 5/8”
Table travel X- 32”
Saddle travel Y- 16’’
Knee travel- 16”
Ram travel- 15”
Quill travel- 5”
Quill diameter- 3-3/8”
Spindle taper- R-8
Spindle speeds- 60 – 4200 R.P.M.

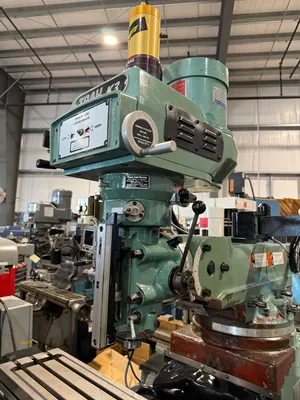

Head tilt- 45° forward, 45°back, 90° left, 90° right
Maximum table weight- 850 Lbs.
Maximum rapid feed rate- 100 I.P.M.

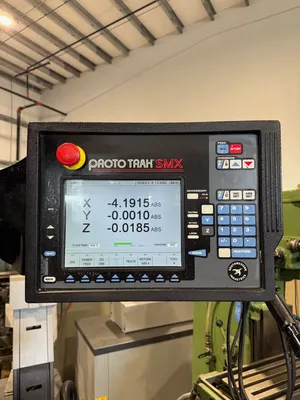

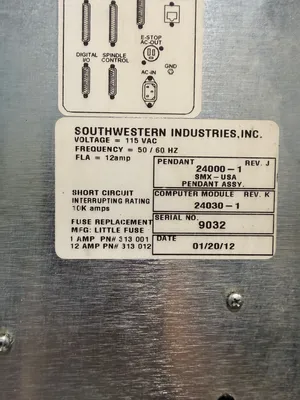

SMX CNC Control (2 axis CNC / 3 Axis readout)
Control options- Advanced features

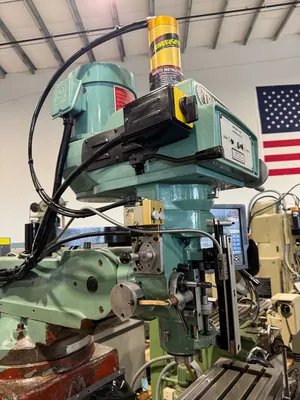

Pneumatic drawbar
Spindle motor 3 H.P.
Motor voltage 220 / 440 / 3 phase/ 60 HZ
Machine is currently wired for 220 volt
Machine weight- 2850 Lbs.
Machine dimensions- 71” L x 69” W x 86’’ H
Machine location- F.O.B. Sarasota, Florida
