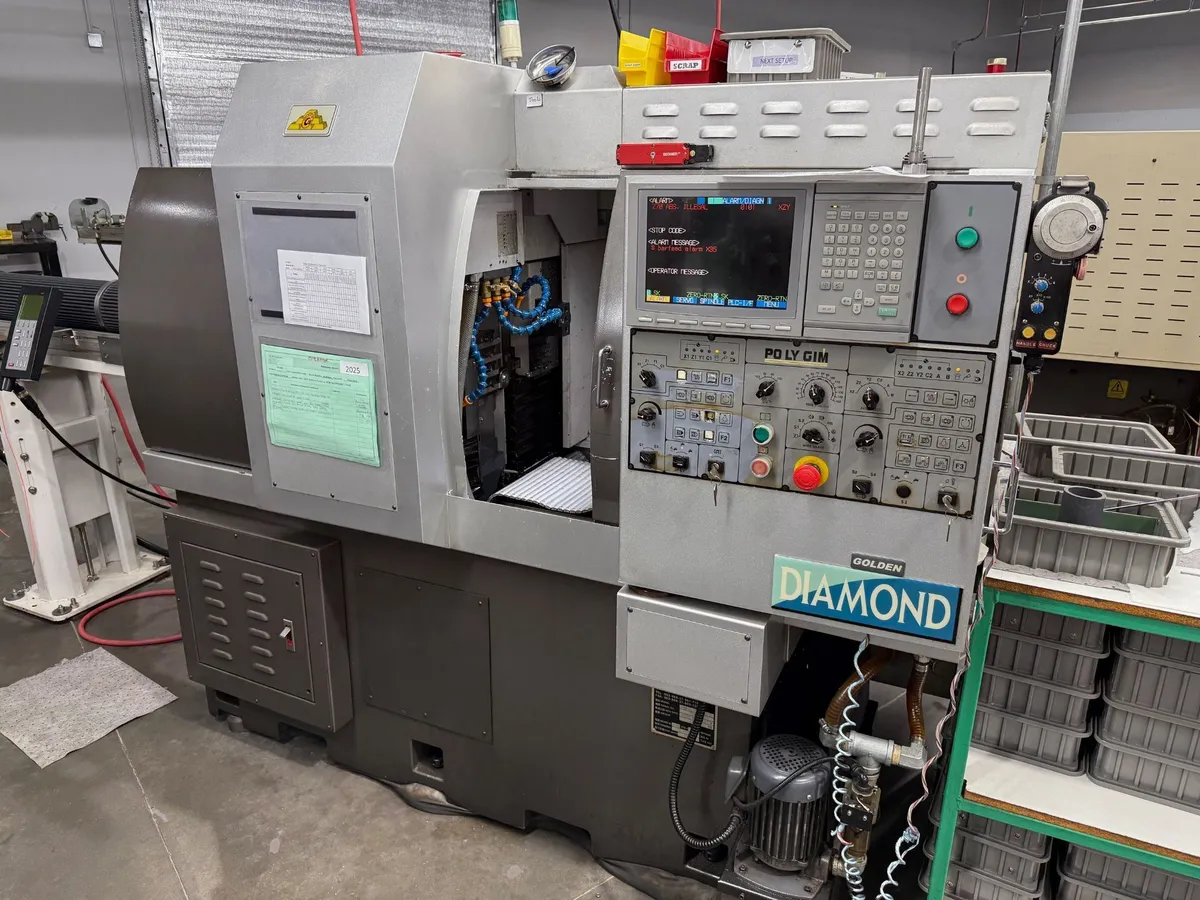

POLY GIM Golden 12S2Y Multi Axis Swiss CNC lathe 2009’ #8288
Have one to sell?
ConditionUsed
1 available
$27,500.00 USD
POLY GIM Golden 12S2Y Multi Axis Swiss CNC lathe 2009’ #8288
POLY GIM Golden 12S2Y Multi Axis Swiss CNC lathe 2009’ #8288
Reference # 8288

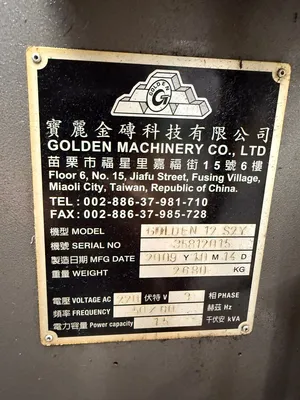

Model # Golden 12S2Y
Serial # 35812015
Year of manufacture- 10/2009’
Max machining diameter- 12.7 mm
Max machining length- 143 mm
Max drilling capacity- 7 mm
Max tapping capacity- M6
Main Spindle bore- 13mm
Main spindle speed- 200 – 10,000 R.P.M.
Sub spindle bore- 13mm
Sub spindle speed- 200 – 10,000 R.P.M.
Sub spindle drilling capacity- 7mm
Sub spindle tapping capacity- M6
A axis rapids- 30m/min
X1, Z1, Y1 rapids- 30m/min
X2,Z2, Y2 rapids- 30m/min

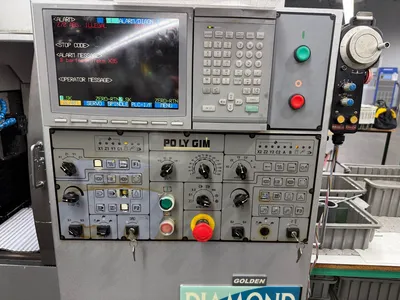

Mitsubishi CNC Control
Y1 & Y2 1.3 H.P. motor
A,X1,X2,Z1,Z2 1.3 H.P. motor
B axis 1. H.P. motor
1 H.P. Coolant motor
Lubrication pump 25 watt
3 H.P. Main spindle motor
3 H.P. Sub spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 6,500 Lbs.
Machine dimensions- 98” x 50” x 71”
Machine location- F.O.B. Sarasota, Florida
POLY GIM Golden 12S2Y Multi Axis Swiss CNC lathe 2009’ #8288
POLY GIM Golden 12S2Y Multi Axis Swiss CNC lathe 2009’ #8288
Reference # 8288
Model # Golden 12S2Y
Serial # 35812015
Year of manufacture- 10/2009’
Max machining diameter- 12.7 mm
Max machining length- 143 mm
Max drilling capacity- 7 mm
Max tapping capacity- M6
Main Spindle bore- 13mm
Main spindle speed- 200 – 10,000 R.P.M.
Sub spindle bore- 13mm
Sub spindle speed- 200 – 10,000 R.P.M.
Sub spindle drilling capacity- 7mm
Sub spindle tapping capacity- M6
A axis rapids- 30m/min
X1, Z1, Y1 rapids- 30m/min
X2,Z2, Y2 rapids- 30m/min
Mitsubishi CNC Control
Y1 & Y2 1.3 H.P. motor
A,X1,X2,Z1,Z2 1.3 H.P. motor
B axis 1. H.P. motor
1 H.P. Coolant motor
Lubrication pump 25 watt
3 H.P. Main spindle motor
3 H.P. Sub spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
Machine weight- 6,500 Lbs.
Machine dimensions- 98” x 50” x 71”
Machine location- F.O.B. Sarasota, Florida
