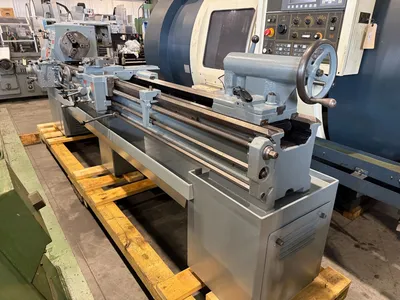

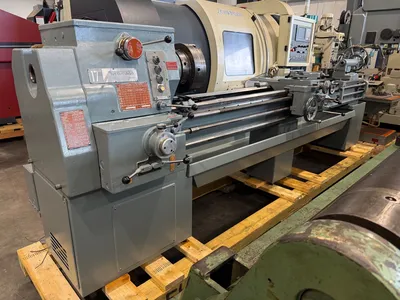

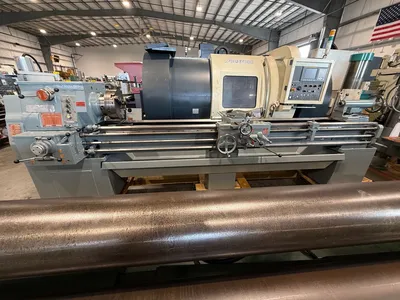

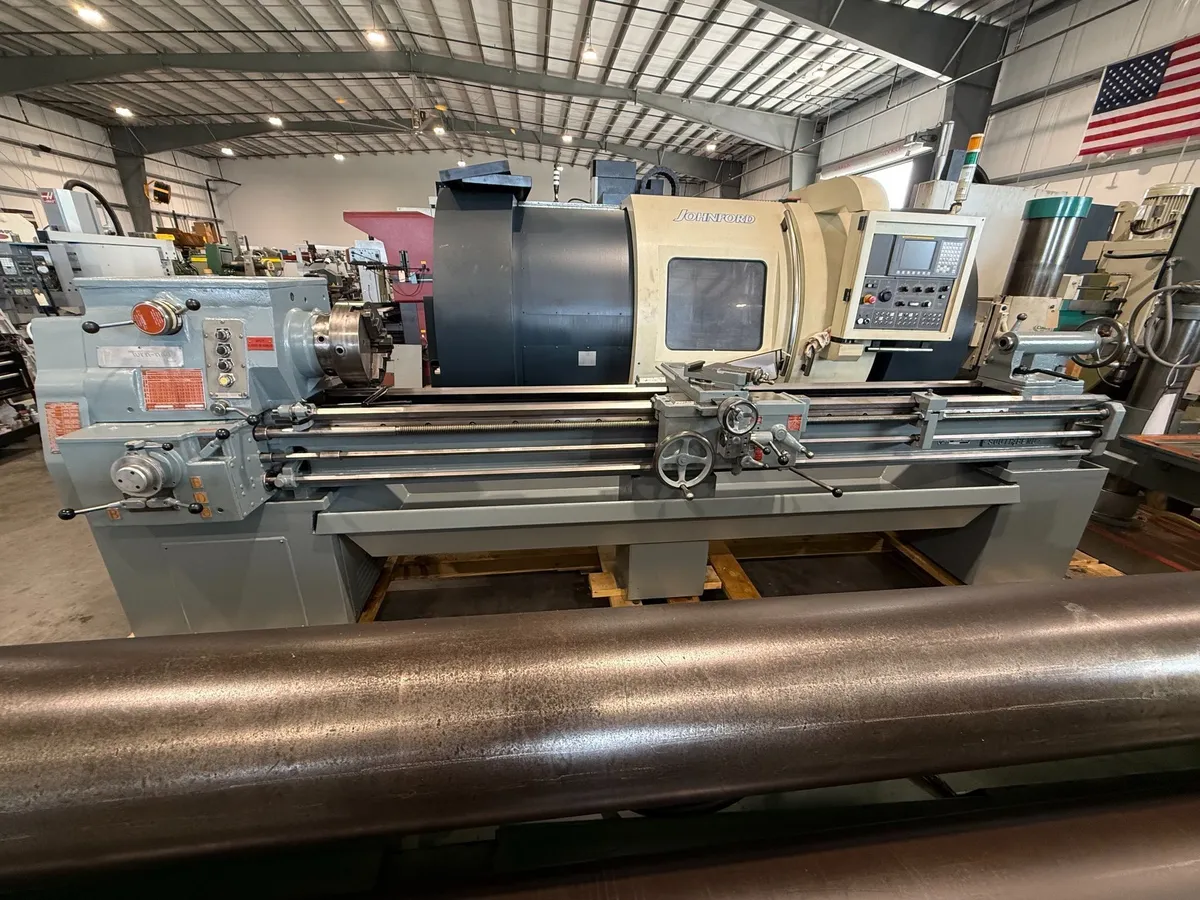

SOUTH BEND 17” x 102”cc TURN-NADO LATHE #8318
SOUTH BEND 17” x 102”cc TURN-NADO LATHE #8318
Reference # 8318
Model # 17” TURN-NADO
Serial # 71GJ2162
Swing over bed- 17-1/8”
Swing over cross slide- 10-1/2”
Distance between centers- 102”
Spindle nose taper- D1-8
Spindle bore- 2.75”
Spindle speeds- (18) 30 – 1,500 R.P.M.

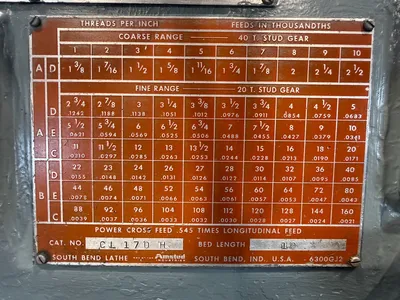

Inch threading- 1-3/8” – 160 T.P.I.
Longitudinal feeds- (60) 0.0021 - .1242 I.P.R.
Cross feeds- (60) 0.0011 – 0.0678 I.P.R.
Tailstock taper- #4 morse
Flame Hardened Bed Ways

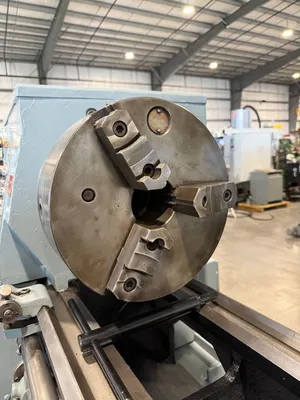

12” CUSHMAN 3 jaw chuck
Carriage stop
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 7500 Lbs.
Machine dimensions- 150” x 46” x 60” H
Machine location- F.O.B. Sarasota, Florida
