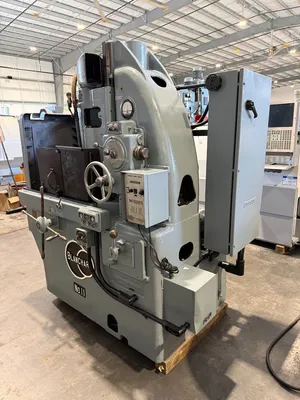

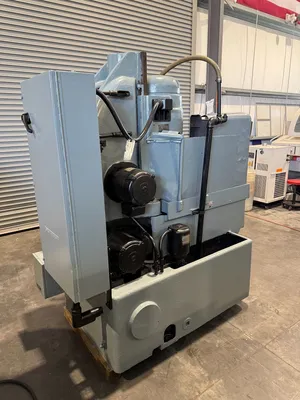

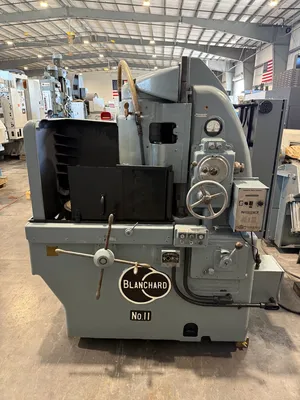

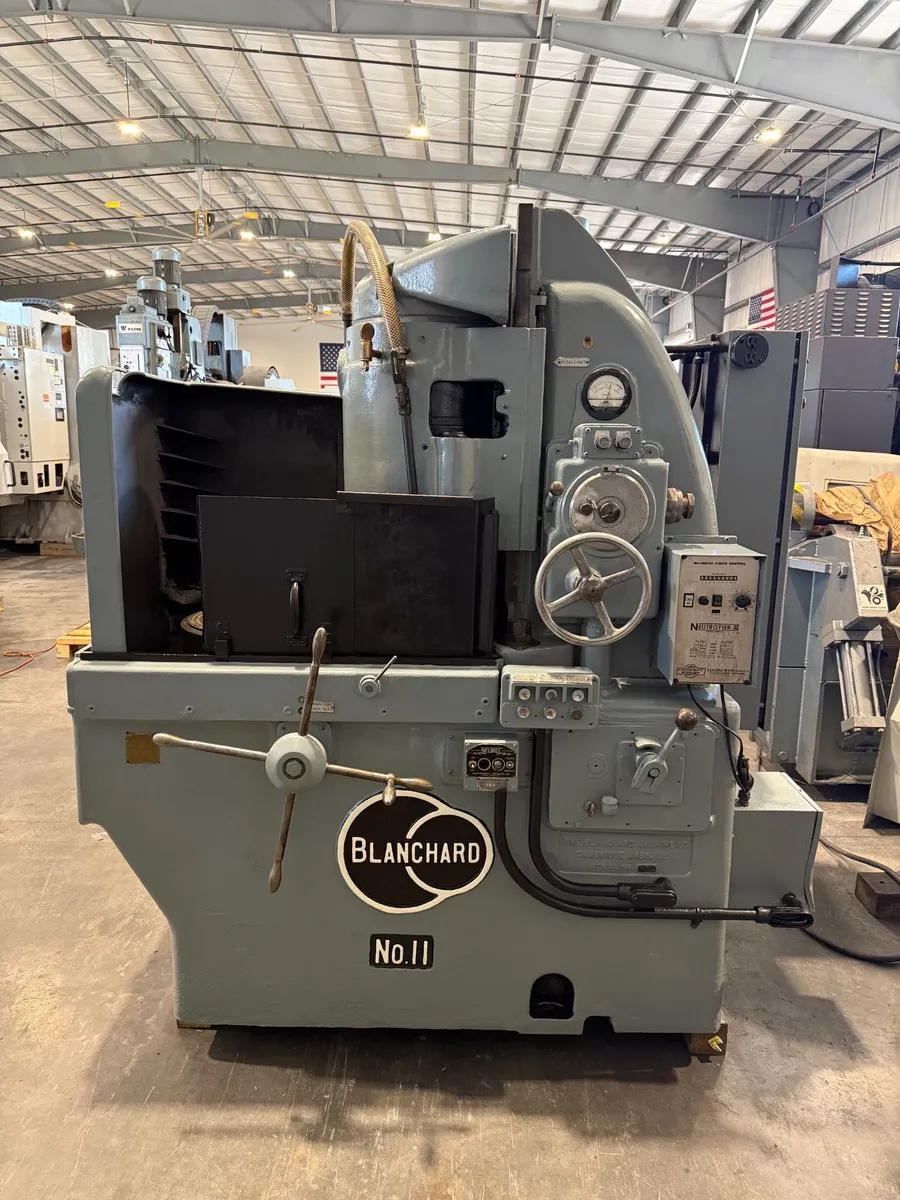

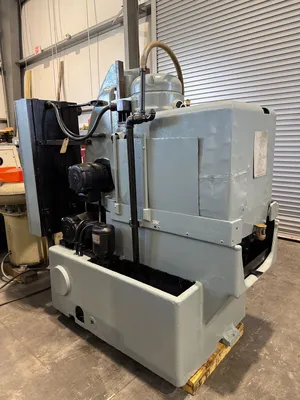

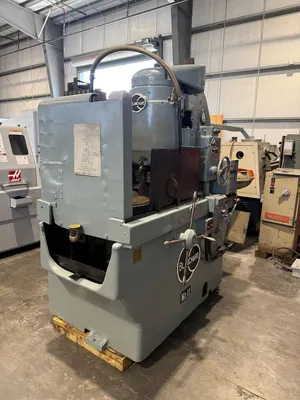

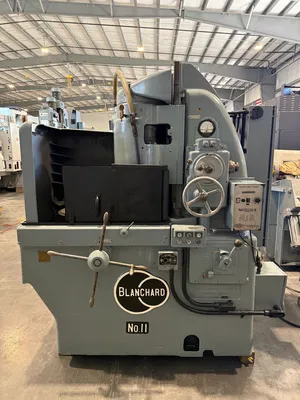

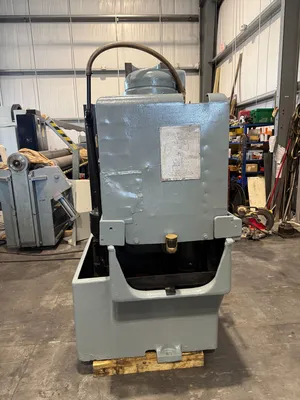

BLANCHARD # 11 Vertical Rotary Surface Grinder USA #8377
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD
BLANCHARD # 11 Vertical Rotary Surface Grinder USA #8377
BLANCHARD # 11 Vertical Rotary Surface Grinder USA #8377
Reference # 8377
Model # 11-16

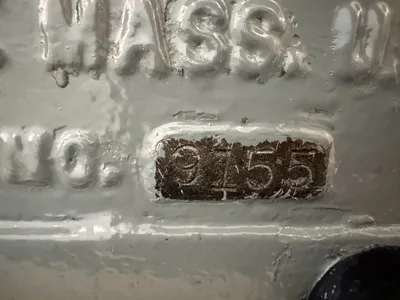

Serial # 9155
Table diameter- 16”
Maximum swing inside splash guards- 20-1/2”
Maximum work height under the grinding wheel- 7”
(4) table speeds- 15, 24, 41, 64 R.P.M.
Wheel speed-1,200 R.P.M.
Wheel diameter- 11”
Power downfeed range or grinding wheelhead- .0015 to .070 I.P.M.
Maximum table load- 500 Lbs.
Approx chuck thickness- 1/8”

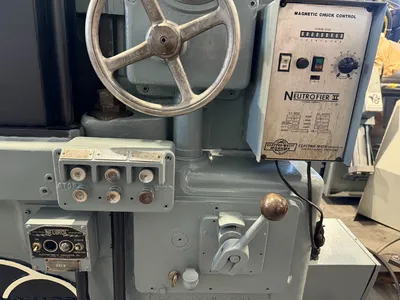

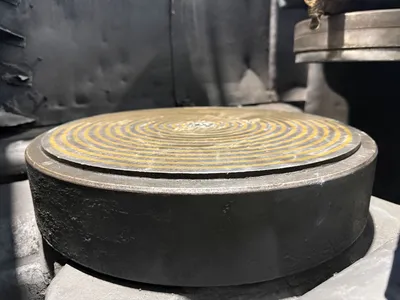

16" Diameter electromagnetic chuck with NEUTROFIER control

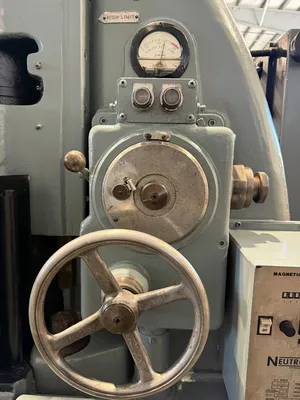

Motorized power rapid traverse to grinding wheelhead (vertical downfeed of wheelhead
by hand or power)

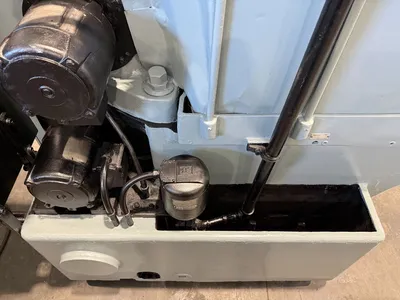

Coolant system with machine splash guards
3 H.P. 3/60/230-460 volt wheelhead rapid traverse motor
1 H.P. 3/60/230-460 volt table drive motor

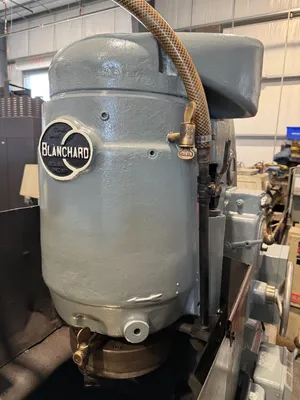

15 H.P. 3/60/230-460 volt spindle drive motor with electrical controls and load meter
Machine is wired for 460 volt operation.
Machine weight- 6500 Lbs.
Machine dimensions- 76” L x 50” W x 94’’ H
Machine location- F.O.B. Sarasota, Florida
