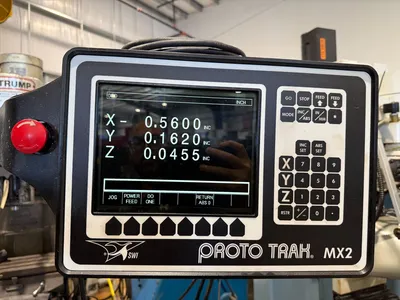

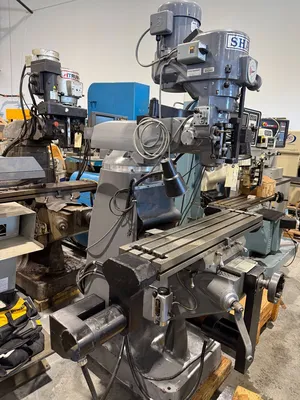

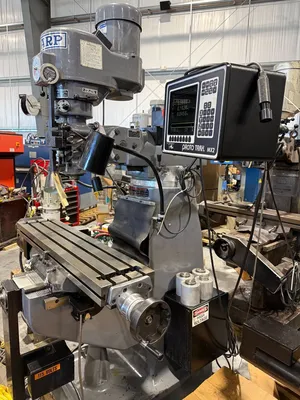

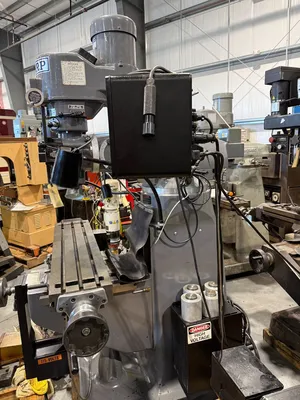

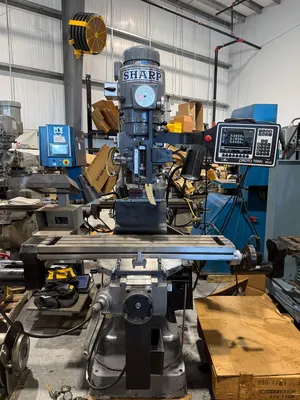

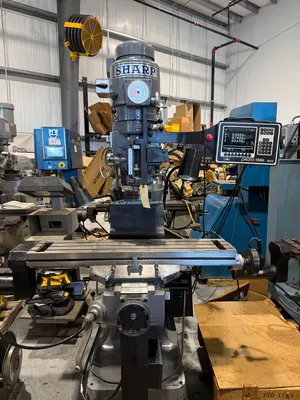

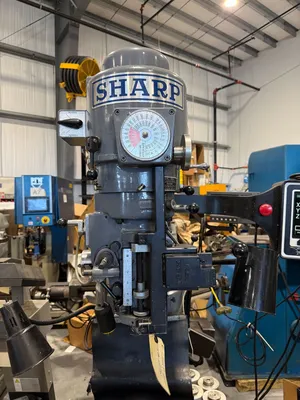

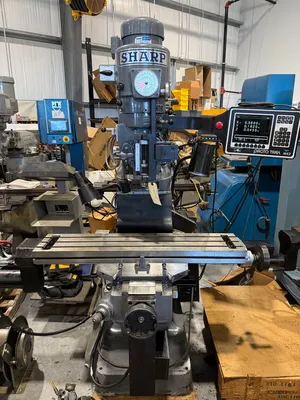

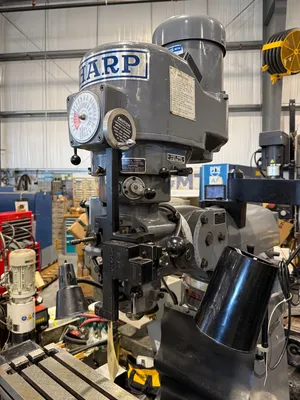

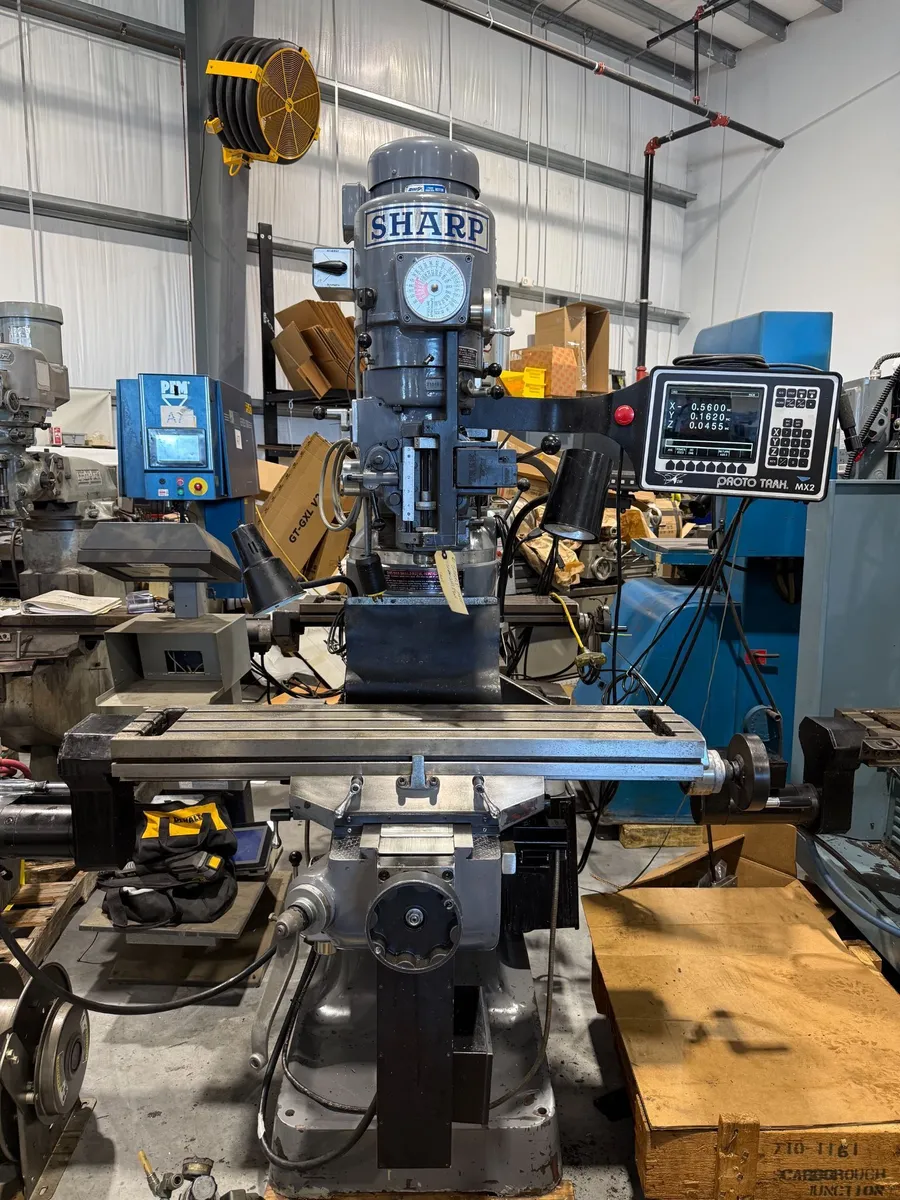

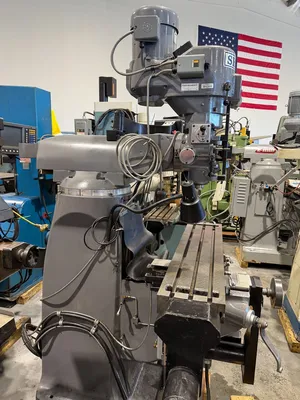

SHARP CNC Vertical Milling Machine 2 Axis TRAK PROTRAK SWI MX2 #8378

SHARP CNC Vertical Milling Machine 2 Axis TRAK PROTRAK SWI MX2 #8378
Reference # 8378
Serial # 21018925

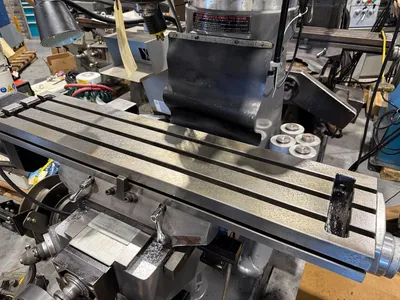

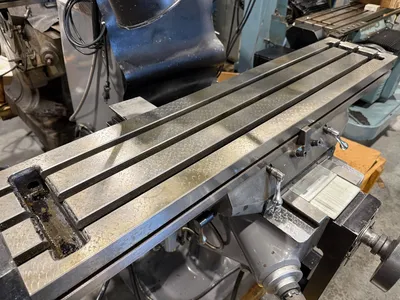

Table working surface- 9” x 42”
Number of t-slots- 3
Ranges:
Longitudinal (X)- 26”
Cross (Y)- 11.5”
Vertical, knee – 15”
Quill (Z)- 5”
Maximum/Minimum distance, spindle nose to table- 22-1/4"/ 6-1/2"
Maximum/Minimum distance, centerline of spindle to face of column - 18-3/4"/ 6-3/4"
Maximum uniform table load- 300 Lbs.
Ram travel- 12”

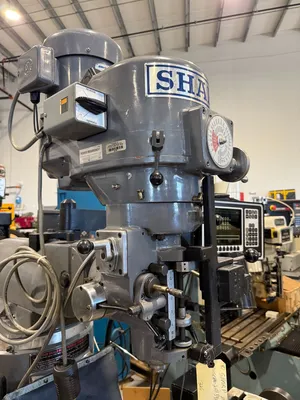

Head tilt, left and right- 90°
Head tilt, front to rear, each way- 45°
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges- 60-500 R.P.M / 500-4,200 R.P.M.
Spindle taper- R-8
