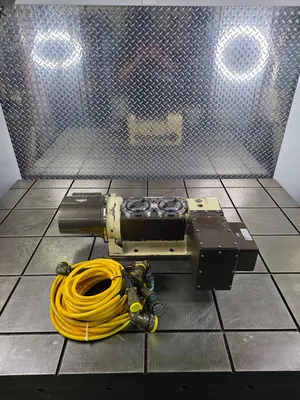

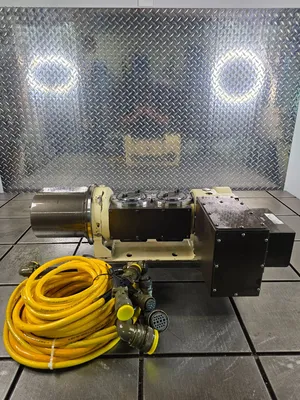

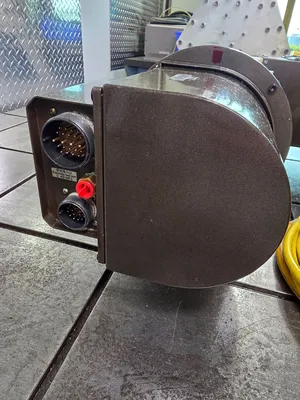

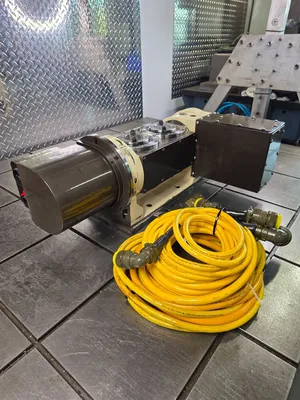

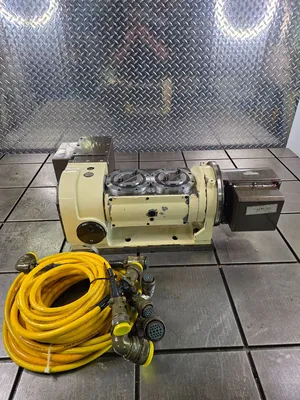

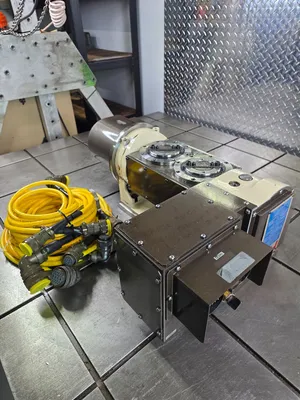

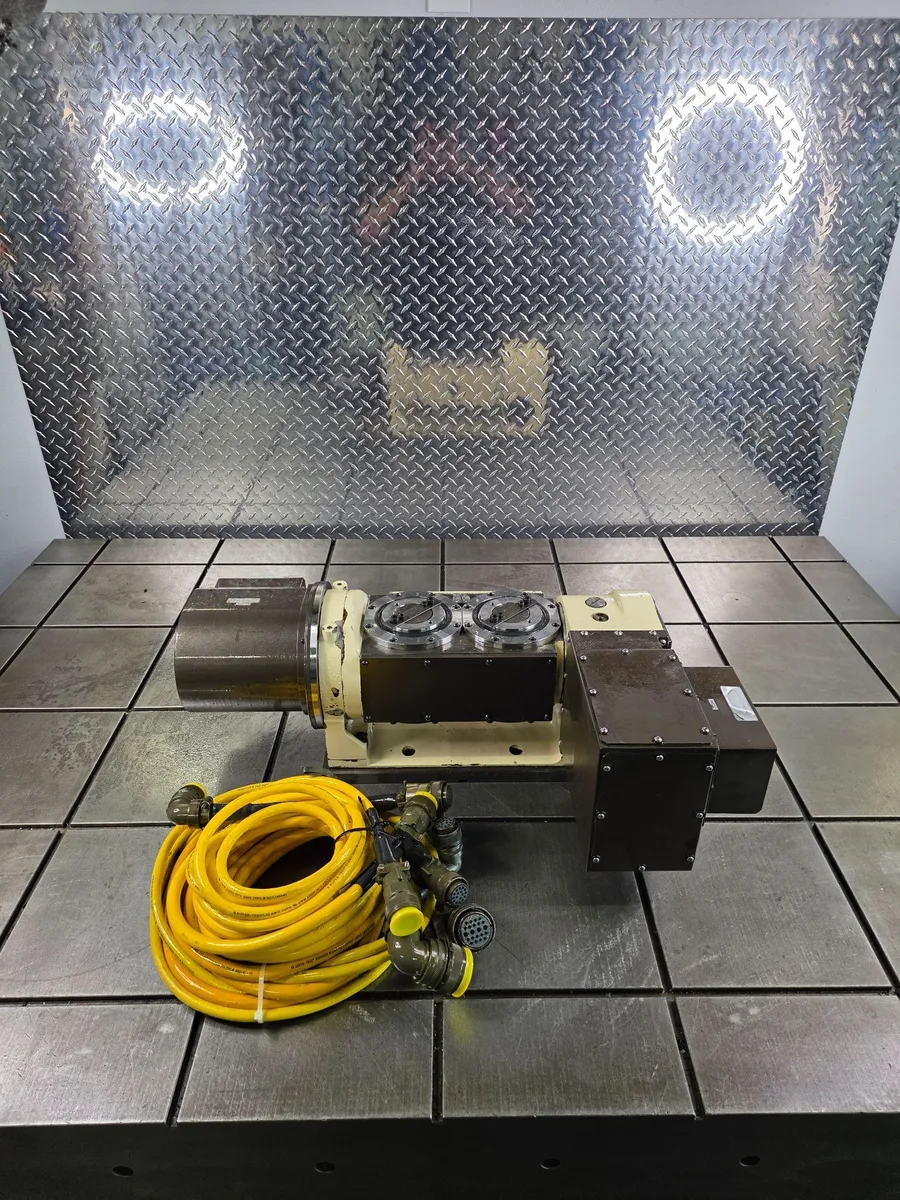

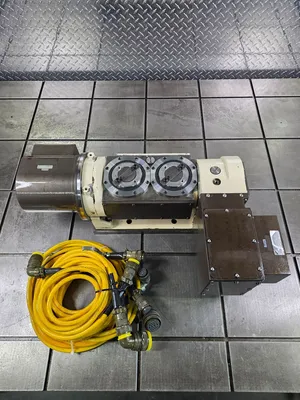

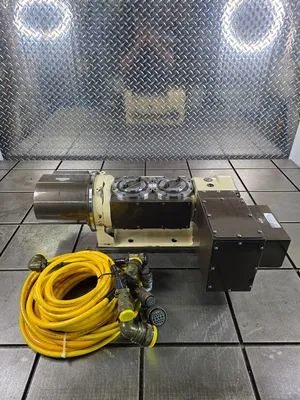

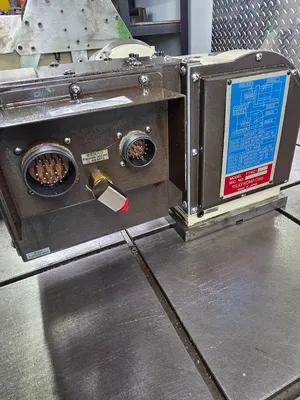

2018 TSUDAKOMA TTNC-102-2 Dual Tilting 2-Axis Trunnion Rotary CNC #8389

2018 TSUDAKOMA TTNC-102-2 Dual Tilting 2-Axis Trunnion Rotary CNC #8389

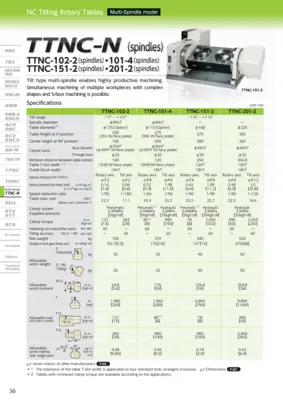

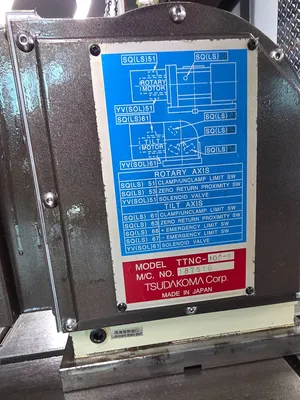

Reference #: 8389
Model # : TTNC-102-2
Serial # : 187516
Year of manufacture: 2018
Tilt range: -17° ~ +107°

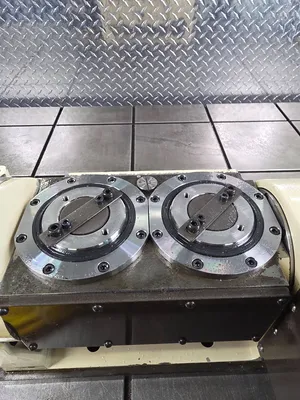

Table diameter: 5.12"
Table height at 0° position: 9.06"
Table center height at 90° position: 6.30"
Center bore diameter: 1.57”
Min dist. between centers: 4.72"
Guide block width: 5.71"
Load capacity at 0° tilt: 77 Lbs.
Load capacity, up to 90° tilt: 44 Lbs.
Speed reduction ratio: 1/90
Maximum table speed: 22.2 R.P.M.
Clamp system: Pneumatic (71 psi)
Clamp torque: 91 lb-ft
Indexing accuracy: 40 arc sec
Tilting accuracy: 100 arc sec (0°~90°)
