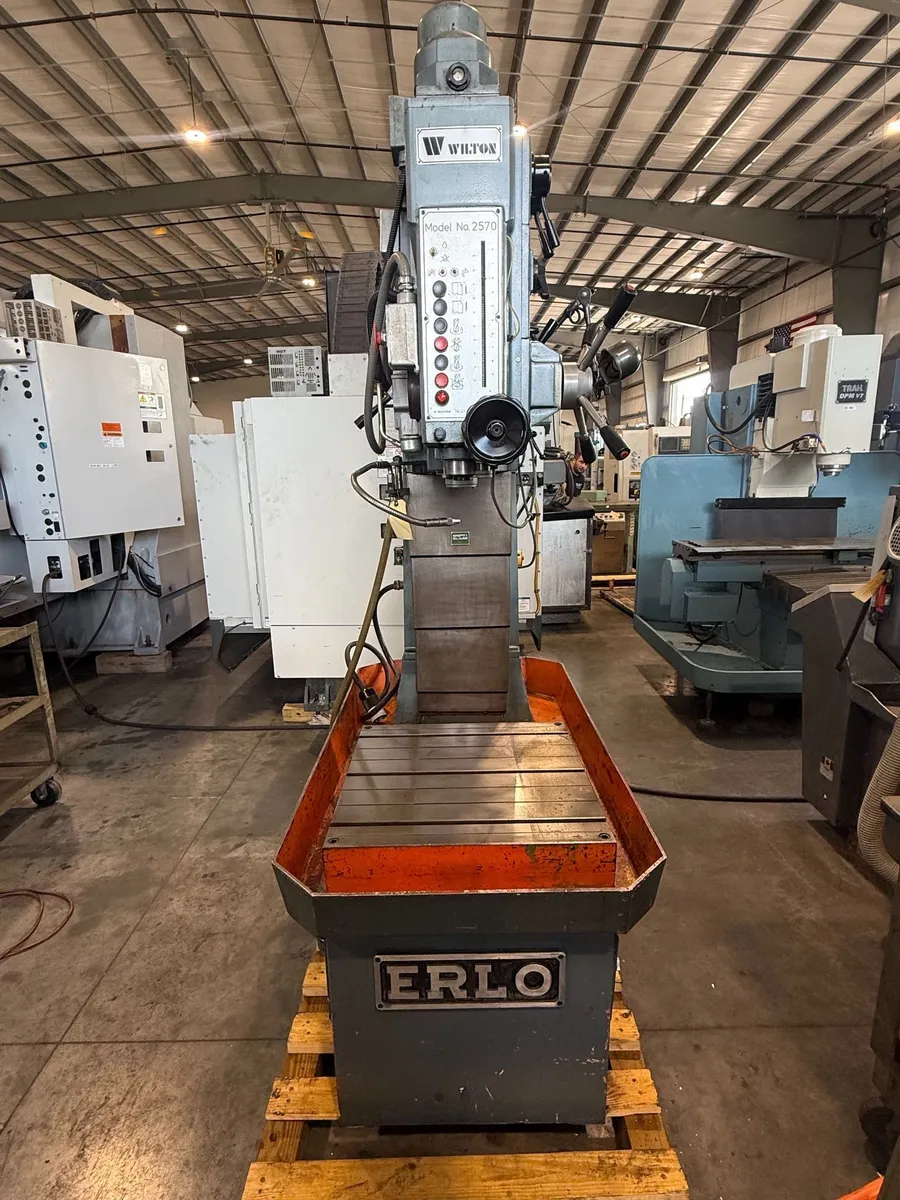

WILTON 2570 36” Box Column Drill Press Power Downfeed #8393

WILTON 2570 36” Box Column Drill Press Power Downfeed #8393
Reference #8393
Model # 2570
Serial # 16/2163
Year of manufacture- 1999’
Drilling capacity- 1-3/4” mild steel
Drilling capacity- 1-7/8” cast iron
Tapping capacity- 1-9/16” mild steel
Tapping capacity- 1-3/4” cast iron
Throat- 18”
Drills to center- 36”
Spindle taper- #4 Morse
Spindle speeds- (9) 82,120,180,240,354,528,678,1026,1524 R.P.M.
Spindle feeds- (4) .004, .008, .012, .016
Spindle quill travel- 9”
Spindle to table- 9.8” minimum / 39.3” maximum
Table dimensions- 23.6” x 23.6”
Table weight capacity- 850 Lbs.
Overall base- 30” x 54-3/4”
