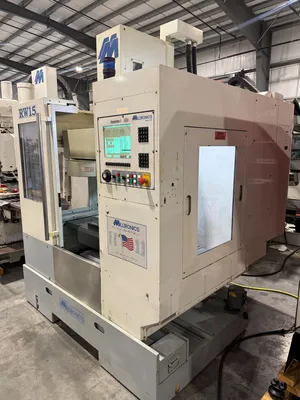

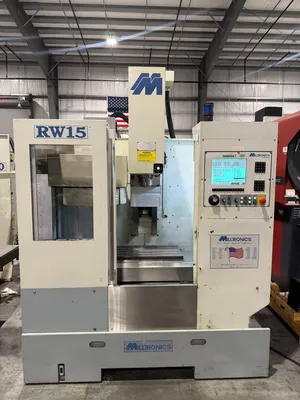

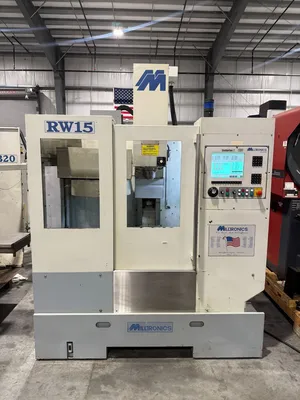

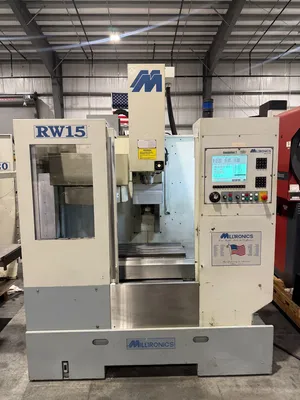

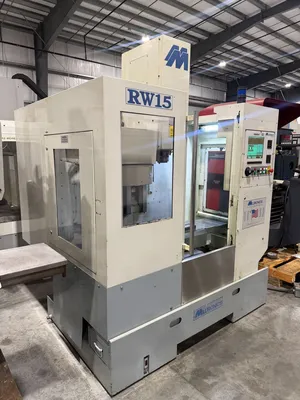

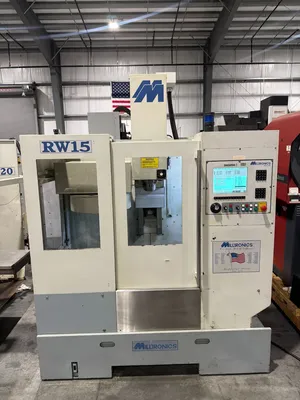

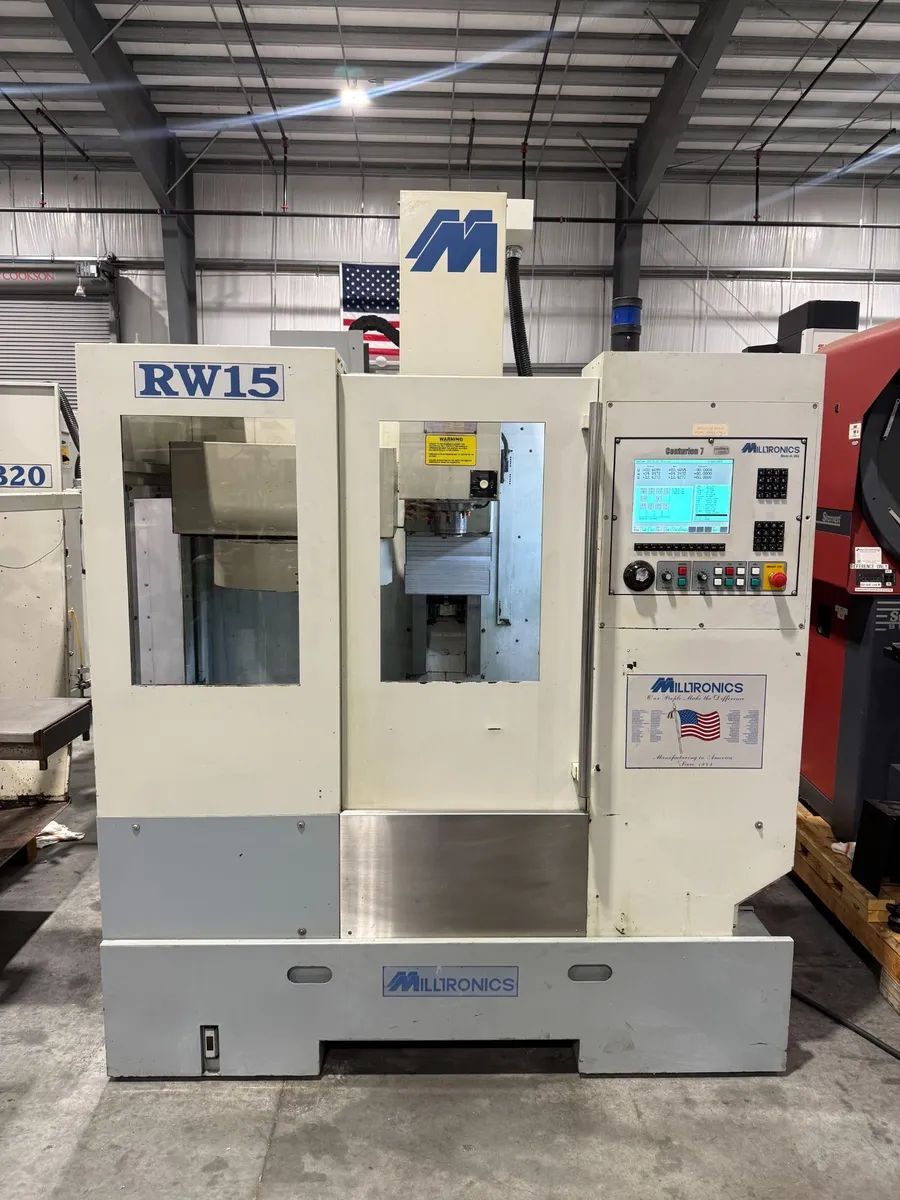

MILLTRONICS #RW15 CNC Vertical Machining Center 2006’ #8394
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD
MILLTRONICS #RW15 CNC Vertical Machining Center 2006’ #8394
MILLTRONICS #RW15 CNC Vertical Machining Center 2006’ #8394
Reference #8394
Model # RW-15
Serial # 9208
Year of manufacture- 2006’

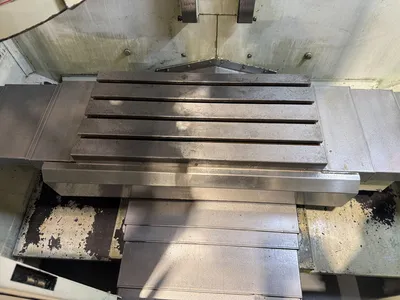

Table size- 30” x 14”
Max table weight- 750 Lbs.
Travels-
X Axis- 25”
Y Axis- 15”
Z axis- 20”
Minimum / Maximum from table to spindle nose- 4” – 24”

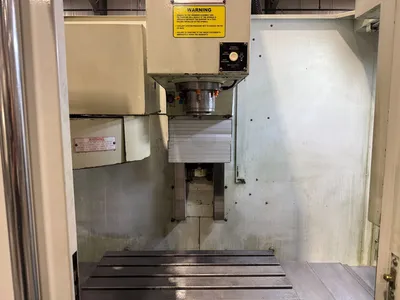

Spindle taper- CAT 40
Maximum spindle speed- 8,000 R.P.M.
Tool Changer- 16 Pocket
Max tool diameter- 4”
Maximum tool length- 11”
Maximum tool weight- 10 Lbs.
X & Y Axis Rapid traverse rate- 1000 I.P.M.
Z Axis Rapid traverse- 800 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
RW Series “Full Box Way Type Machine”

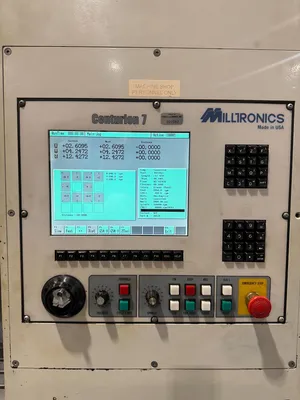

Centurion 7 CNC Control
Auto lubrication system
Rigid tapping
Chip & Coolant pan (50 gallon) & Pump ¼ H.P.

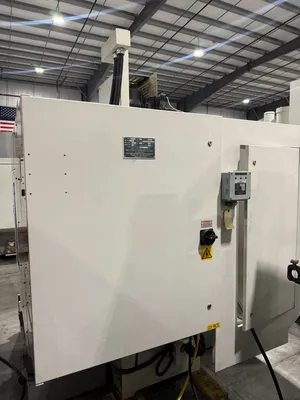

Machine is currently wired for 208-240 Volt / 3 Phase / 60 H.Z.
Machine weight- 6500 Lbs.
Machine dimensions- 90” W x 73” L x 102’’ H
Machine location- F.O.B. Sarasota, Florida
