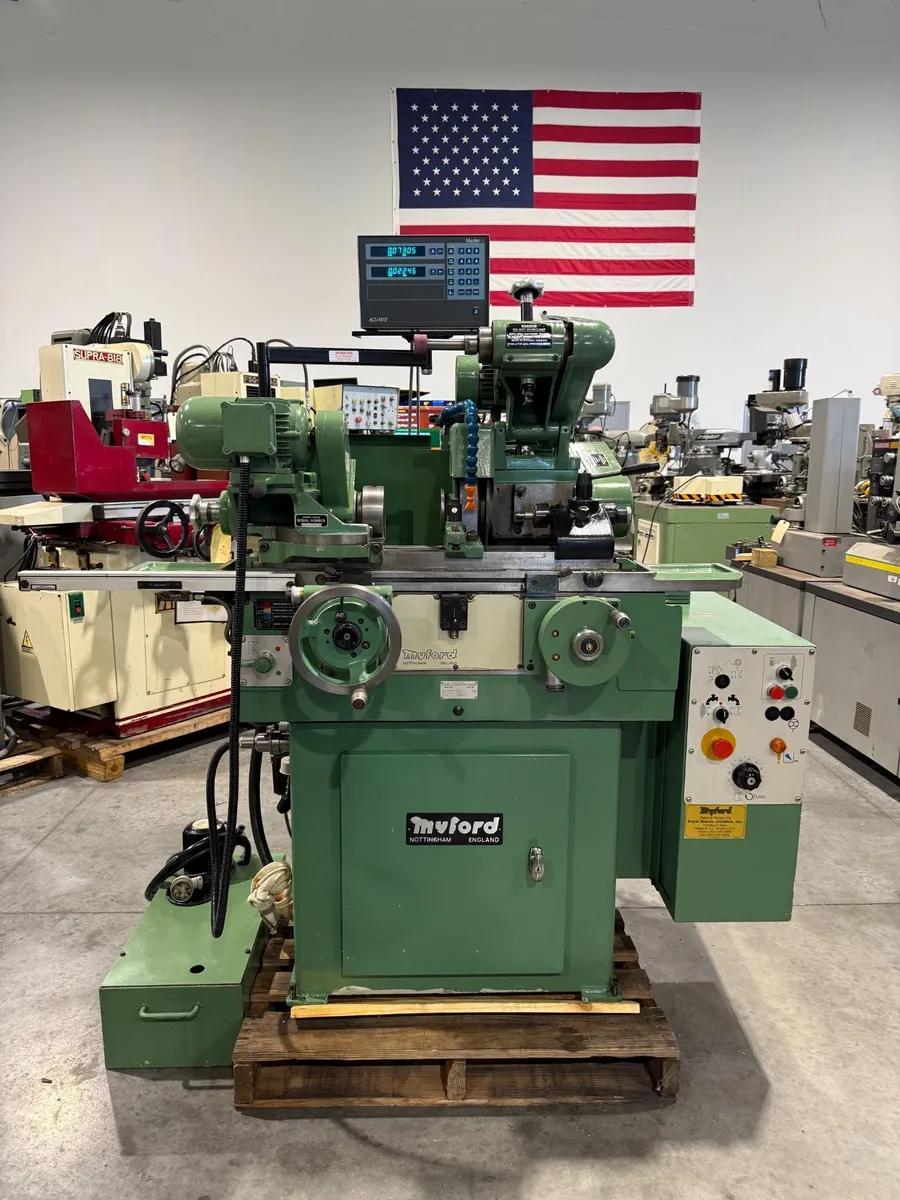

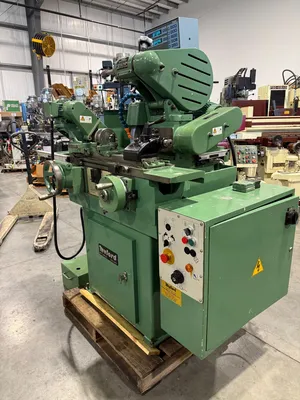

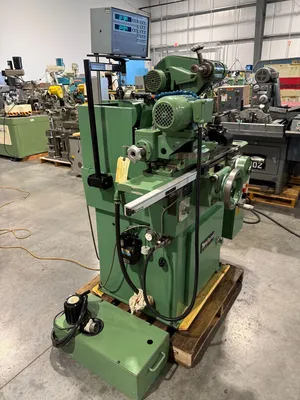

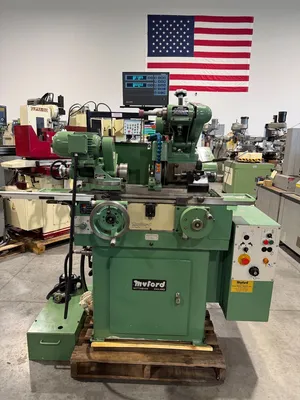

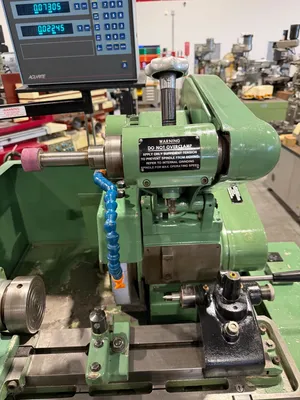

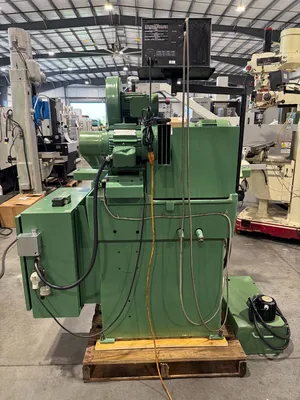

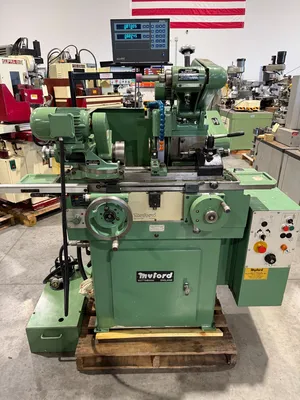

MYFORD #MG12 5” x 12”cc Cylindrical Grinder with OD attachment DRO 1997’ #8441

MYFORD #MG12 5” x 12”cc Cylindrical Grinder with OD attachment DRO 1997’ #8441
Reference #8441
Model # MG12
Serial # SM169812
Year of manufacture- 1997’
Maximum grinding diameter- 3”
Maximum swing over table- 5”
Capacity between centers- 12”
Maximum table traverse- 13-1/2”
Table travel per revolution of handwheel- Fine- .7”/ Coarse- 2.04”
Table swivels either way- 7 Degrees
Grinding wheelhead travel by feed screw- 3”

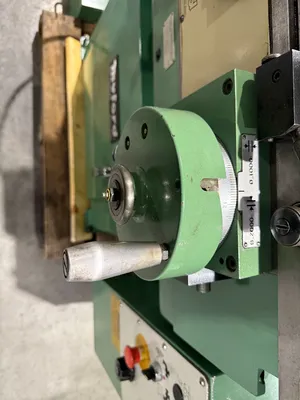

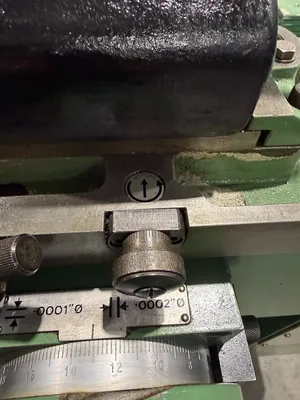

Handwheel dial for infeed reads to- .0001”
One division of the handwheel dial gives- .0002” reduction on workpiece diameter
Fine feed knob for infeed reads to- .000025”
One division of the fine feed knob gives- .00005” reduction on workpiece diameter
Grinding wheelhead speeds-2,200 & 2,500 R.P.M.
Grinding wheel size- 10” diameter x 1” wide x 5” bore

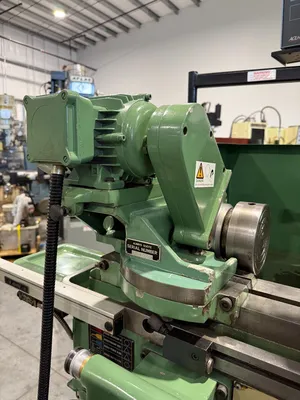

(12) Motorized workhead speeds, two ranges- 75 – 780 R.P.M.
Maximum collet capacity- ½”
