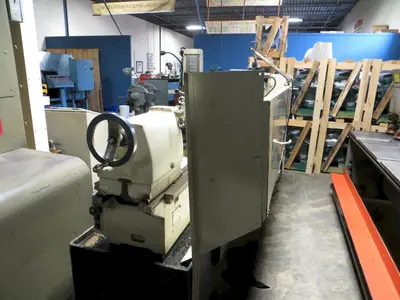

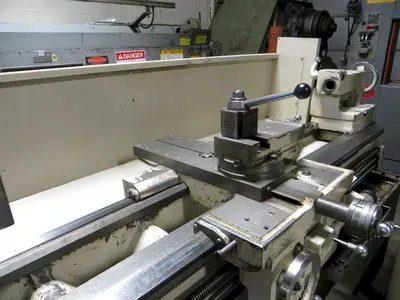

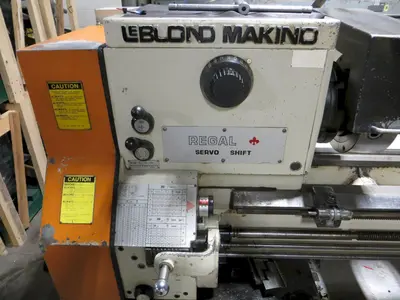

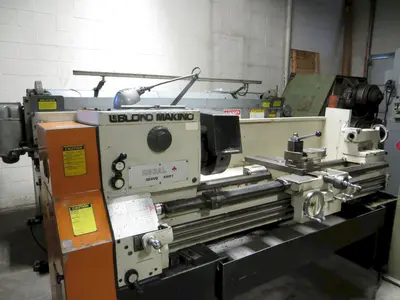

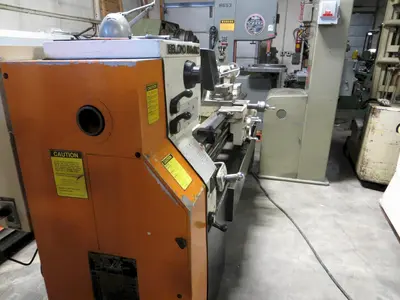

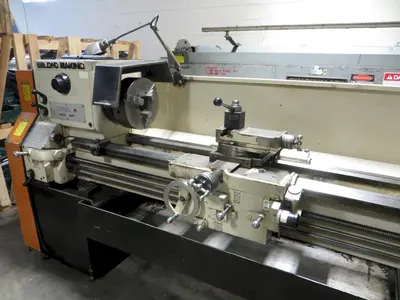

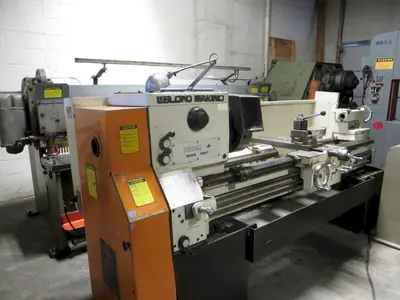

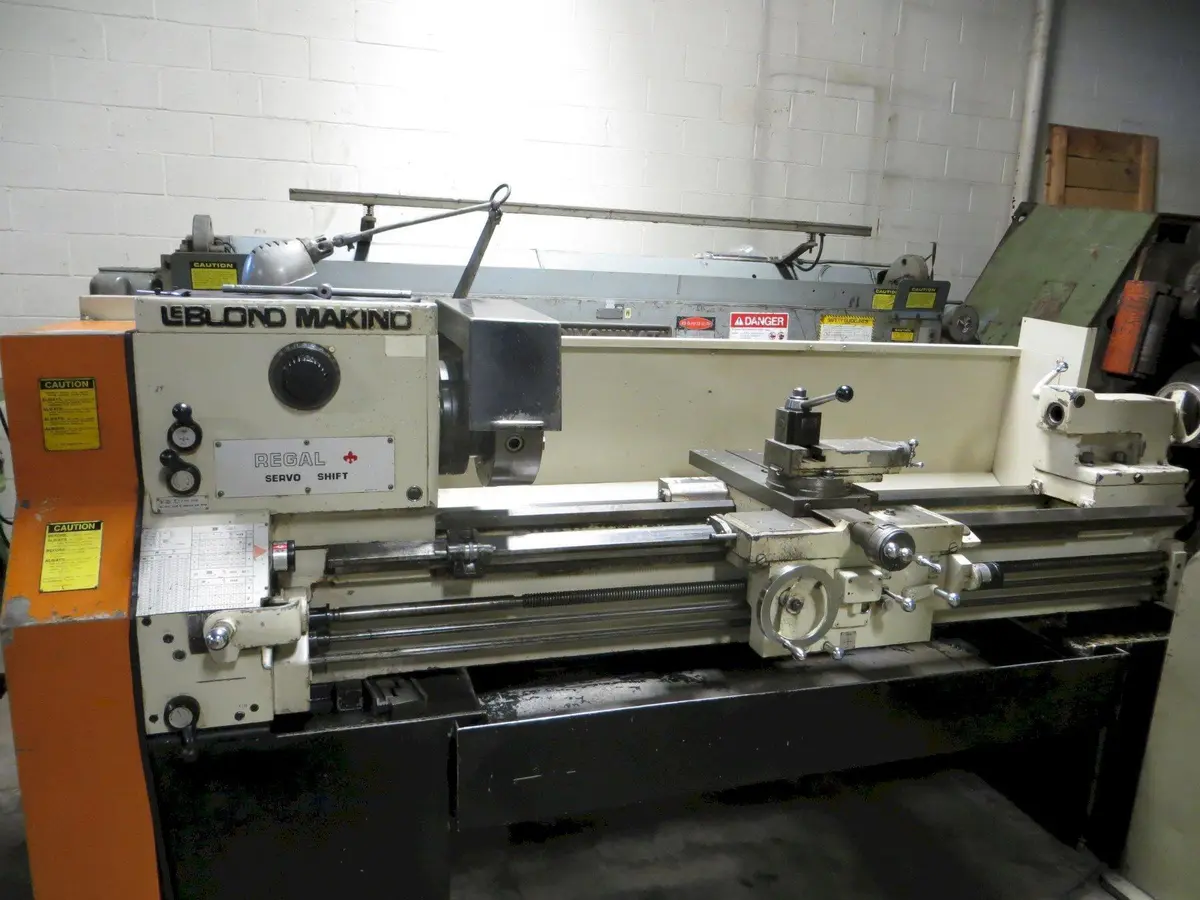

LEBLOND MAKINO Regal Servo Shift 19” x 54”cc Engine Lathe 1988’ Inch/Metric 3” Bore USA #8446
Reference #8446
Model- REGAL

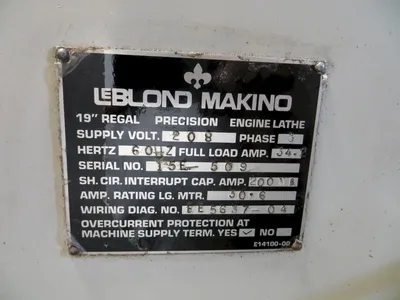

Serial # 15E-509
Year of manufacture- 1988’
Swing over bed and carriage wings- 19-1/4"
Swing over cross slide- 12-1/4"
Distance between centers- 54" cc
Cross slide travel- 9-5/8”
(12) Spindle speeds- 40 to 1,600 R.P.M
Spindle hole- 3-1/16"
Spindle nose- L-2
Headstock spindle center taper- #4 Morse
(48) Feed changes, longitudinal- .0018 -.104 T.P.I.
(48) Threads, American Standard- 2 -112 T.P.I.
Metric- .25-14 mm
Tailstock spindle center taper- #4 Morse
Tailstock spindle diameter- 2-7/16"
Hydraulic preselection of next spindle speed during cutting operation through turning of Servo-Shift dial
Hardened and ground replaceable bedways
Inch/Metric switchable quick-change gearbox
Dual reading inch and metric handwheel dial
Spindle control dials on both headstock and apron

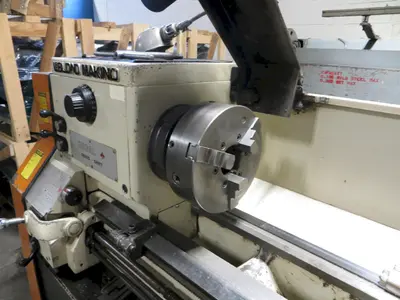

12" three-jaw chuck Adjust-Tru Style
Threading dial

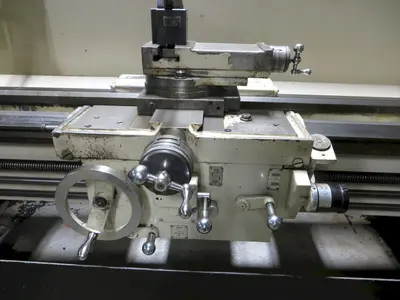

Micrometer carriage stop

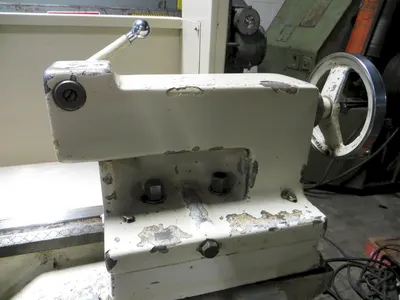

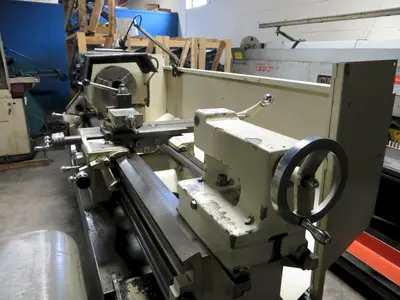

Tailstock with (1) center
Removable chip pan

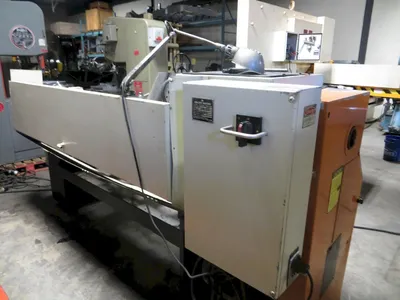

10 H.P. 3/60/230-460 volt drive motor with electrical controls
Machine is wired for 230 volt operation.
Machine dimensions- 120” L x 48” W x 70” H
Machine weight (approx.)- 4500 Lbs.
Machine Location- F.O.B. Ronkonkoma NY
This equipment has been sold. Similar equipment available now is shown below.
