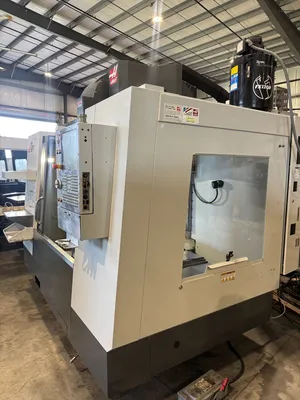

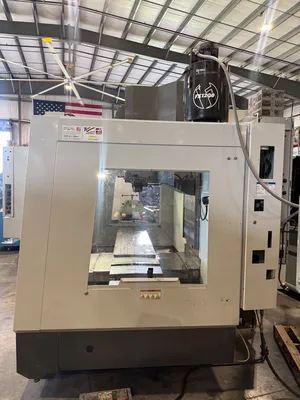

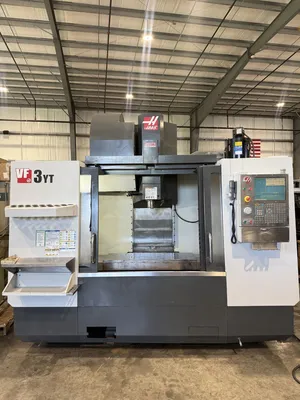

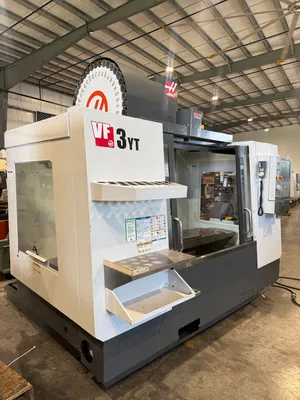

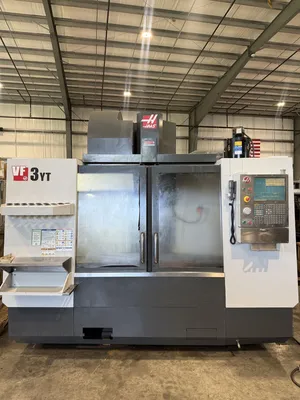

HAAS VF-3YT CNC Vertical Machining Center 2011’ 4th & 5th wired USA #8427
Have one to sell?
ConditionUsed
1 available
$42,500.00 USD
HAAS VF-3YT CNC Vertical Machining Center 2011’ 4th & 5th wired USA #8427
HAAS VF-3YT CNC Vertical Machining Center 2011’ 4th & 5th wired USA #8427
Reference # 8427
Model # VF-3YT

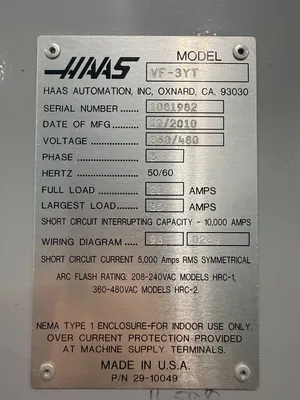

Serial # 1081982
Year of manufacture- 12/2010’

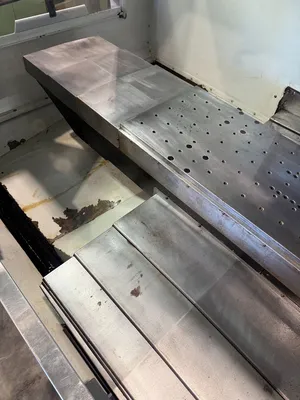

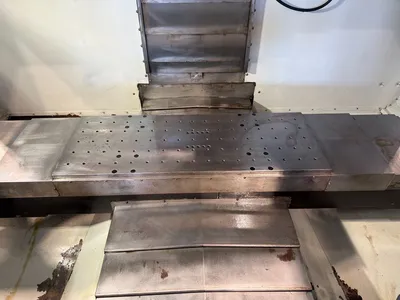

Table working surface- 24" x 54
Maximum weight on table- 4,000 Lbs.
Table travel, X-axis (longitudinal)- 40”
Table travel, Y-axis (cross)- 26”
Vertical column travel (Z-axis)- 25”
Minimum/Maximum distance, spindle nose to table- 7.9"/32.9"

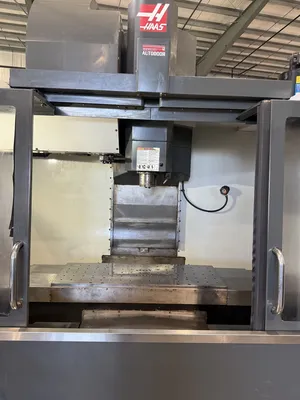

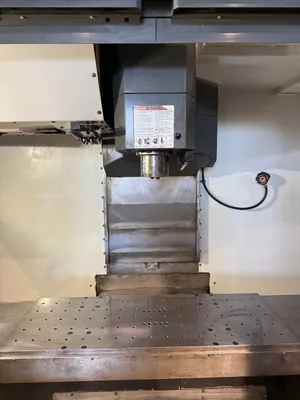

Spindle taper- CAT-40
Spindle speeds- 0 to 10,000 R.P.M.
Rapid traverse rate, all axes- 710 I.P.M.
Cutting feed rate, all axes- up to 500 I.P.M.
Maximum tool diameter- 4”
Maximum tool weight- 30 Lbs.

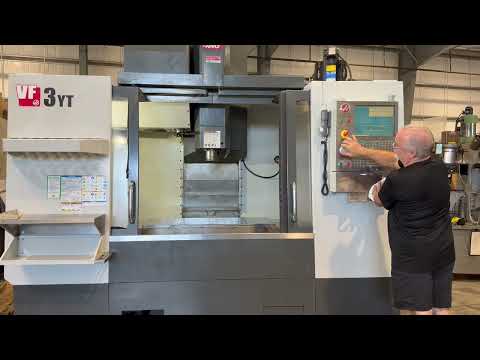

HAAS four-axis CNC control with manual pulse generator, USB drive (on pendant), RS-232 port
Control Options- Rigid tapping, Rotation & Scaling, DNC, M19 Spindle Orient, Macros, Quick code, Pre-Orient Tap, Advanced tool management, Expanded memory
Renishaw Probing & (Less Probe)
All cast iron construction
Brushless servo amplifiers and servo motors on all axes
Prewired for the 4th axis 5th Axis

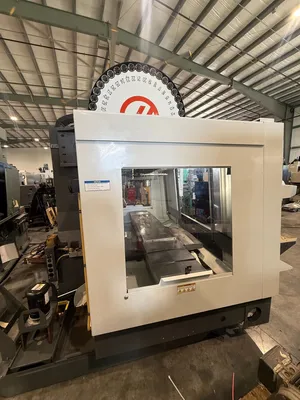

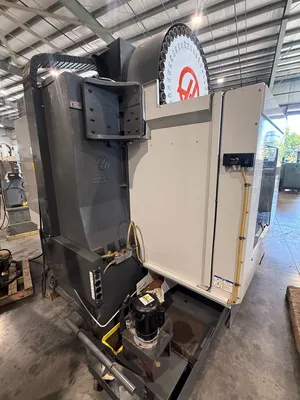

Side mount tool changer 30 tool capacity

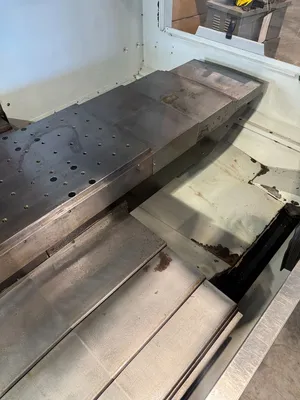

Telescopic way covers
Auto Door option
Automatic lubrication system

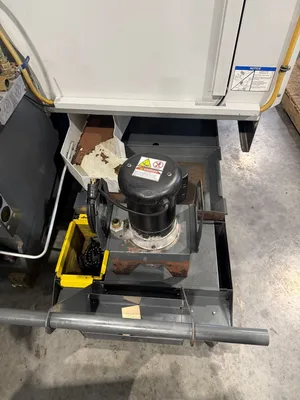

External coolant pump and tank
30 H.P. Vector spindle drive

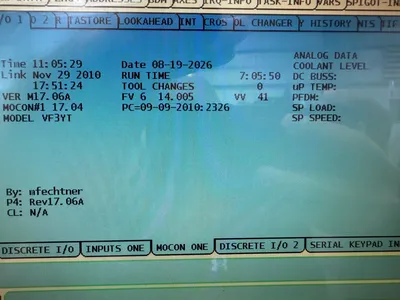

Machine hours- Battery dies and reloaded software and lost the original hour meters
Machine is wired for 360-480 volt operation / 3 phase / 60 H.Z.
Machine weight- 16,500 Lbs.
Machine dimensions- 124” L x 106” W x 109’’ H
Machine location- F.O.B. Sarasota, Florida
