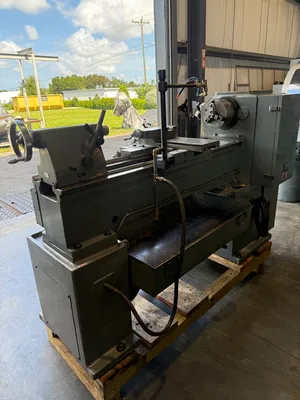

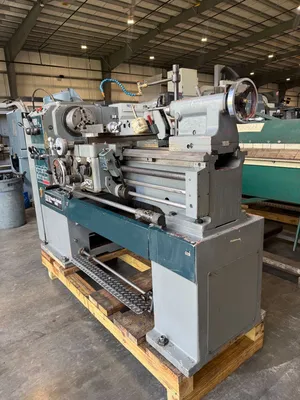

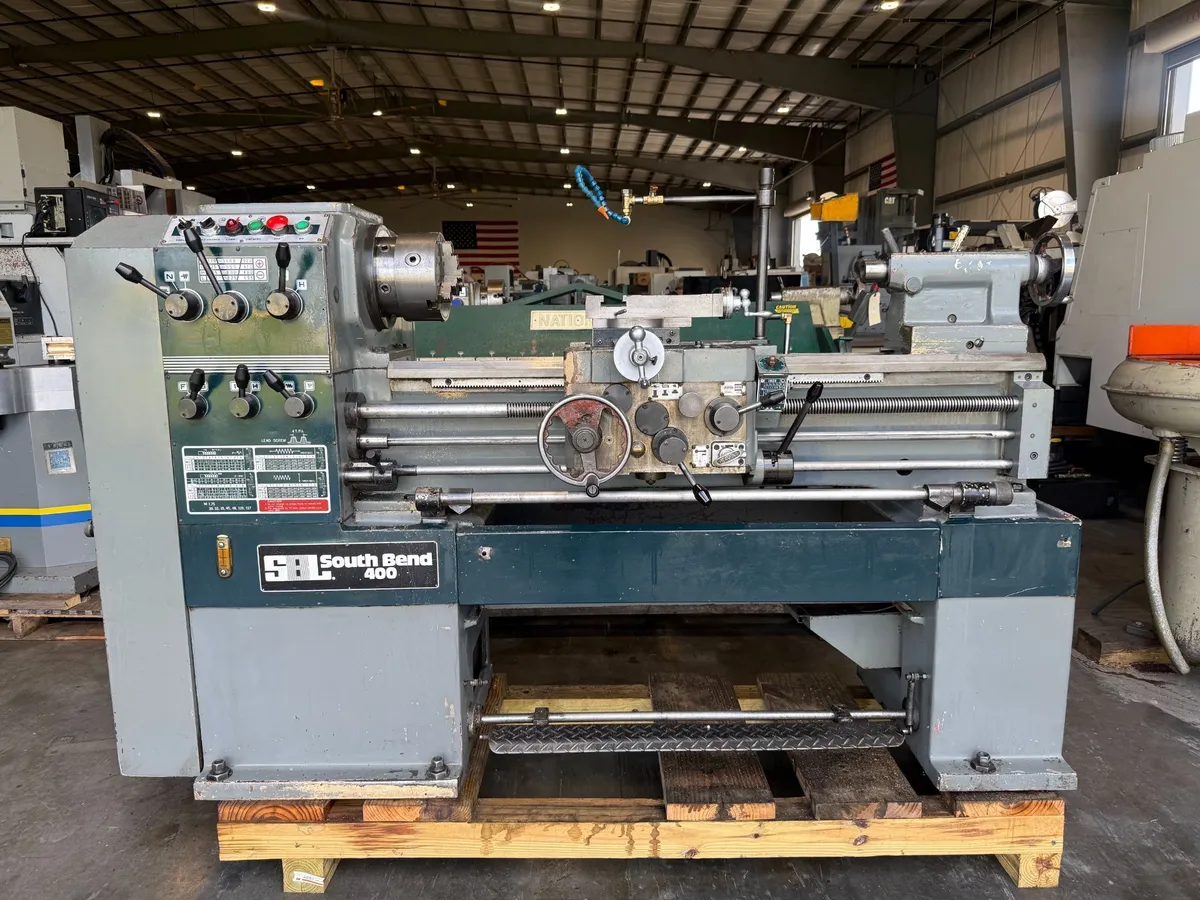

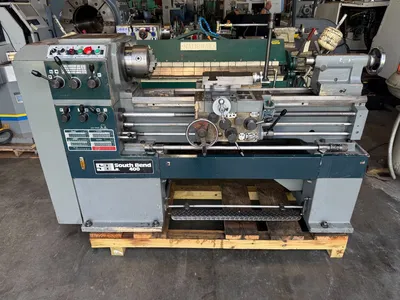

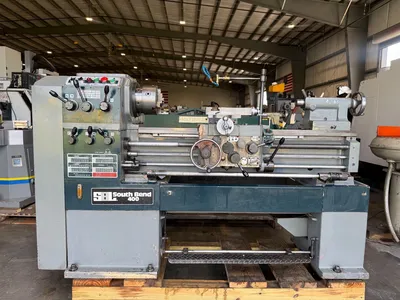

SOUTH BEND 400 16” x 40”cc Engine Lathe #8451
Have one to sell?
ConditionUsed
1 available
$7,950.00 USD
SOUTH BEND 400 16” x 40”cc Engine Lathe #8451
SOUTH BEND 400 16” x 40”cc Engine Lathe #8451
Reference # 8451
Model # SBL 400
Serial # 02C651
Swing over bedways: 16”
Swing over cross slide: 8.6
Distance between centers: 40
Spindle bore diameter: 2-1/16
Spindle nose: D1-6, camlock

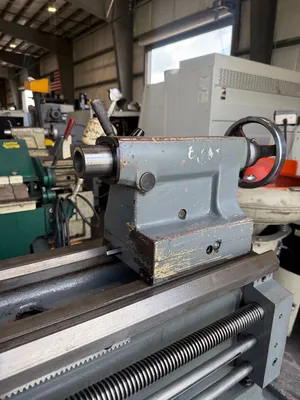

Tailstock quill taper: #4 MT
Tailstock quill travel: 5.7

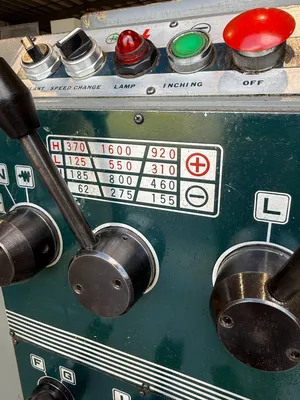

Spindle speeds: (12) 59-1400 RPM

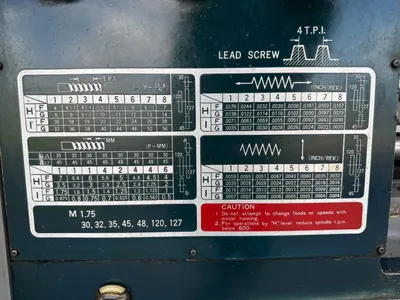

Longitudinal feeds: (32) .0035 .0157 IPR
Cross feeds: (32) .0007 .0032 IPR

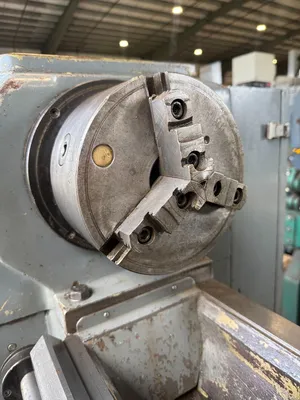

8” BISON 3 Jaw Chuck
Thread Dial
Foot Brake
Chip pan
Coolant Pump
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 3500 Lbs.
Machine dimensions- 84” x 38” x 52” H
Machine location- F.O.B. Sarasota, Florida
