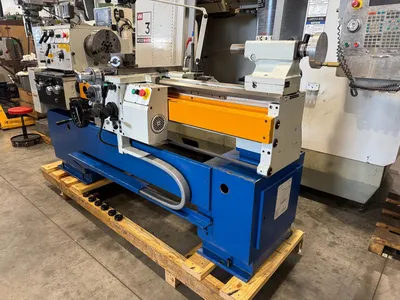

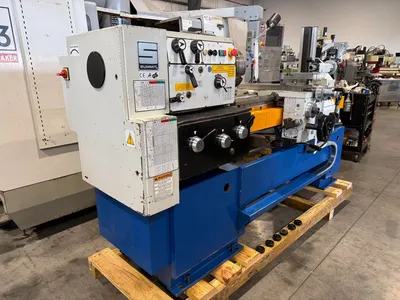

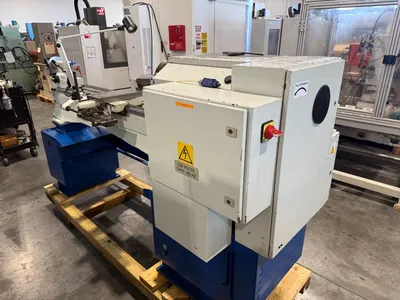

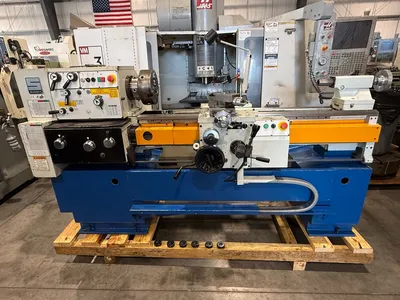

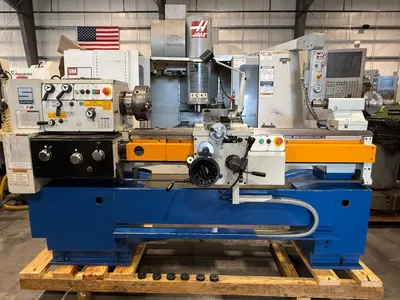

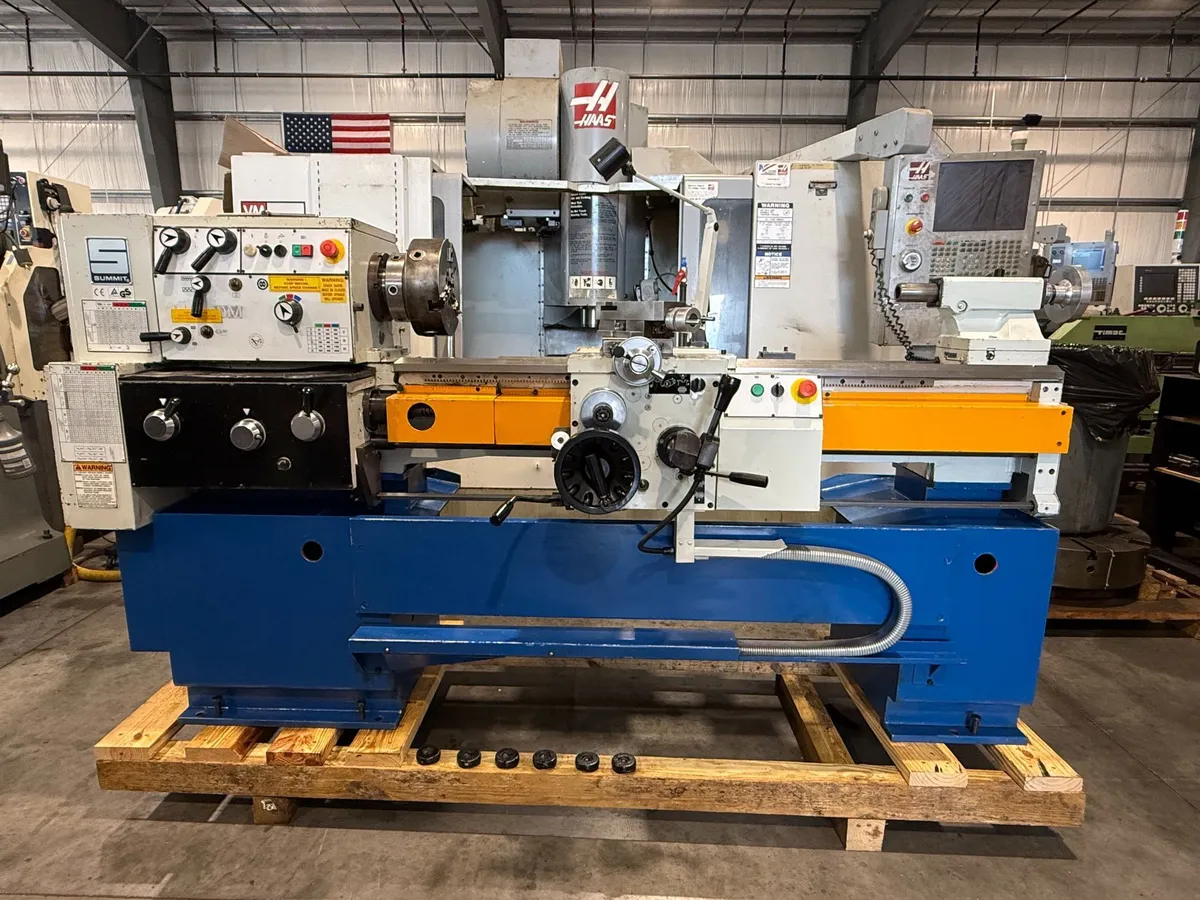

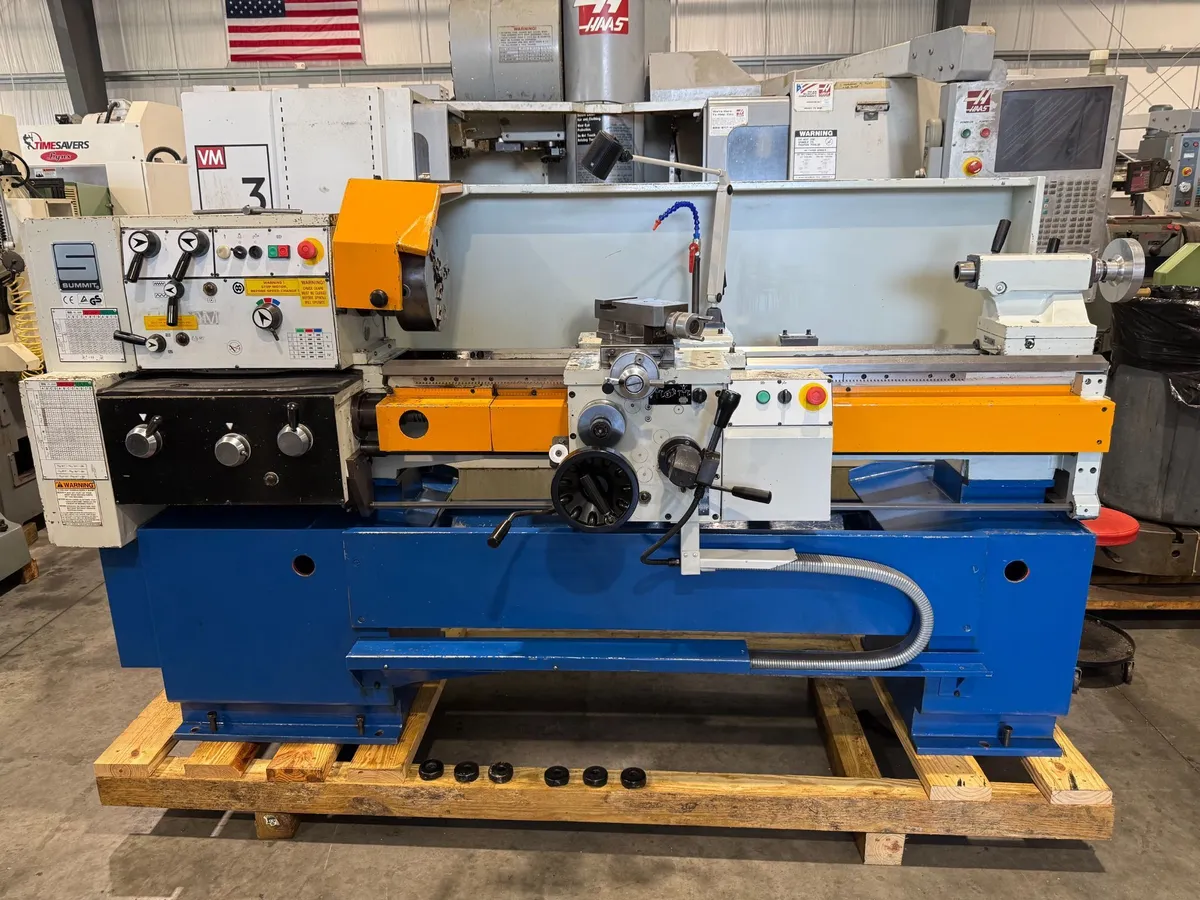

SUMMIT 14”/18” x 40”cc Removable Gap Lathe European 2007’ #8459

SUMMIT 14”/18” x 40”cc Removable Gap Lathe European 2007’ #8459
Reference # 8459

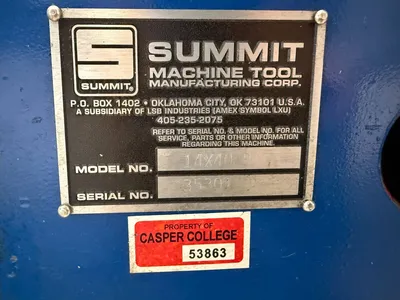

Model # 14x40
Serial # 35301
Year of manufacture- 2007’
Swing over bed- 14-1/2”
Swing over cross slide- 9”
Swing over gap- 18-3/4”

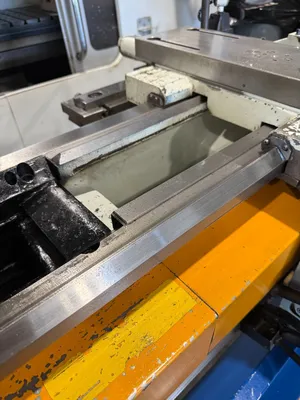

Length of gap- 8-3/4”
Distance between centers- 40”

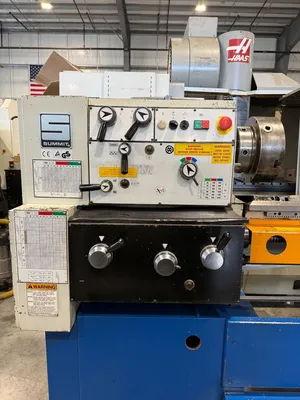

Spindle speeds- (16) 35 – 2,000 R.P.M.
Spindle hole- 2-1/4”

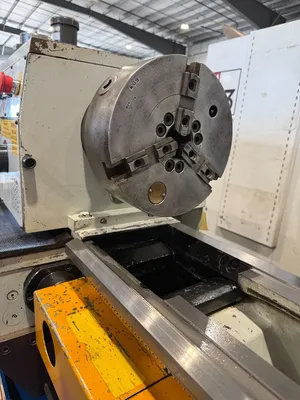

Spindle nose- D1-6 Camlock
Inch threads- (56) ½ - 60 T.P.I.
Metric threads- (56) .5 – 60 mm
Module threads- (56) .125 – 15
Diametral pitch- (56) 2 – 240

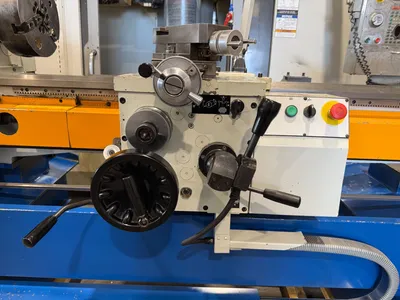

Longitudinal feeds- (56) .0012 - .1890
Cross feeds- (56) .0009 - .1418
Leadscrew diameter- 1-3/8”

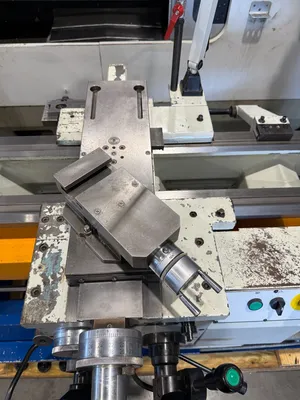

Cross slide travel- 7-3/4”
Compound rest travel- 4”

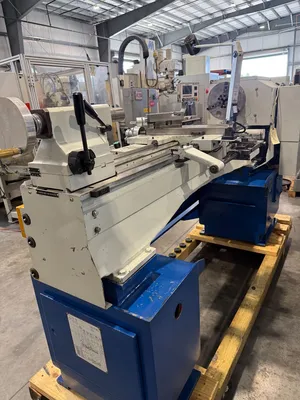

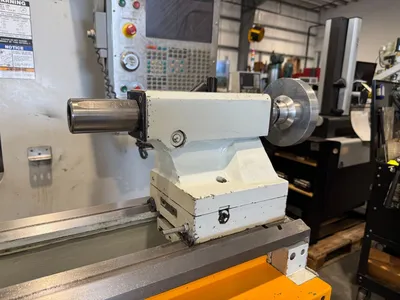

Tailstock quill travel- 4”
Tailstock quill diameter- 2”
Tailstock taper- #4 Morse
Bed width- 10-5/8”
