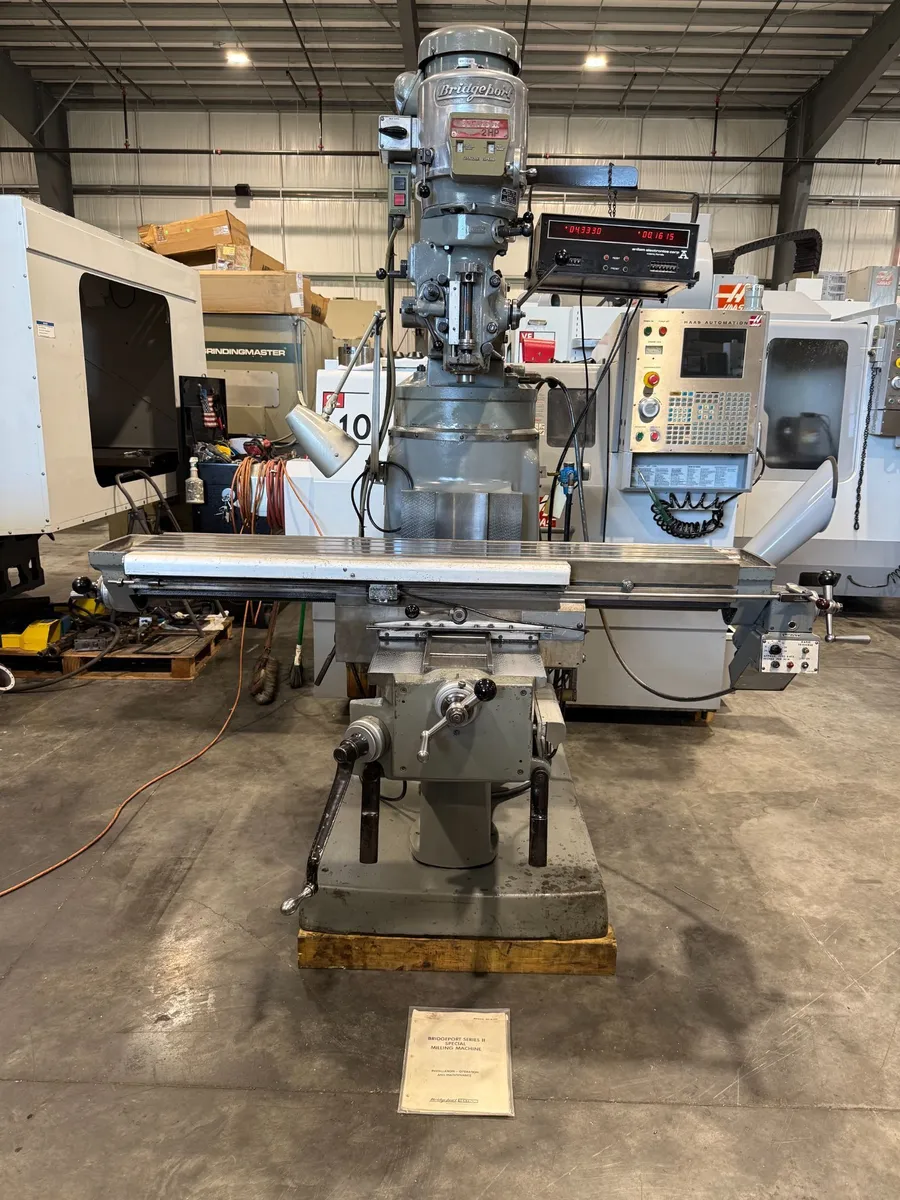

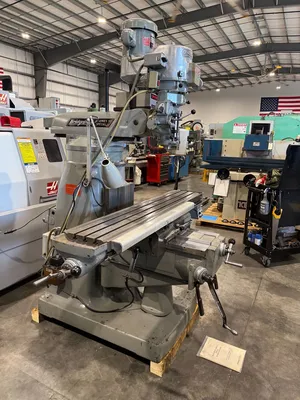

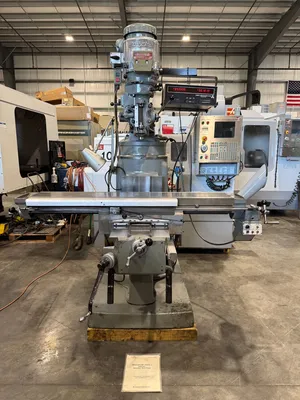

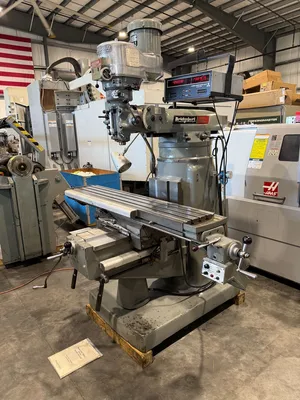

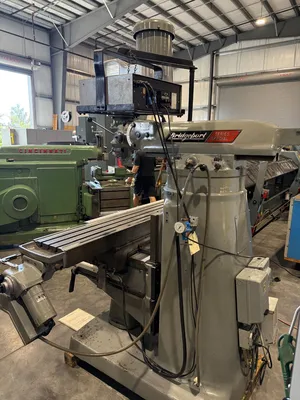

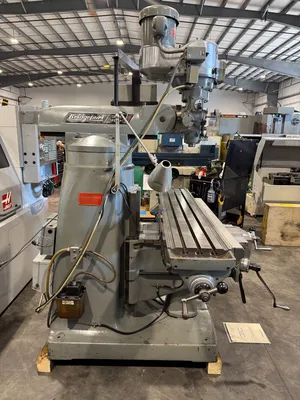

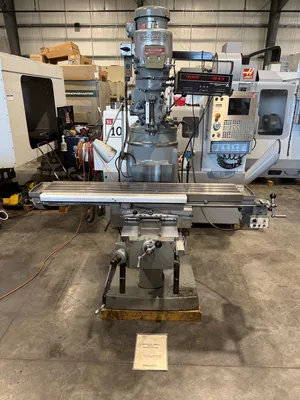

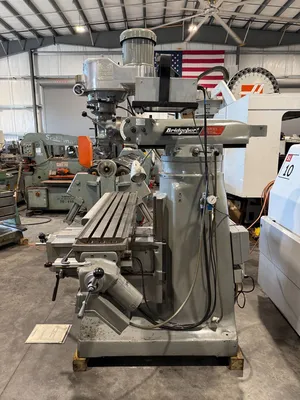

BRIDGEPORT Special Vertical Milling Machine 1980’ DRO USA #8469
Have one to sell?
ConditionUsed
1 available
$10,500.00 USD
BRIDGEPORT Special Vertical Milling Machine 1980’ DRO USA #8469
BRIDGEPORT Special Vertical Milling Machine 1980’ DRO USA #8469
Reference # 8469
Model # Special
Serial # 4245S
Year of manufacture- 1980’

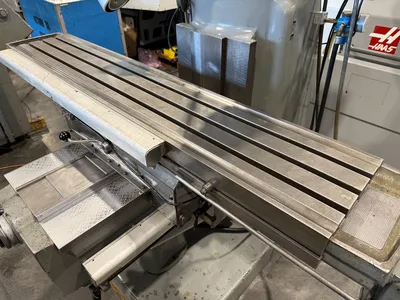

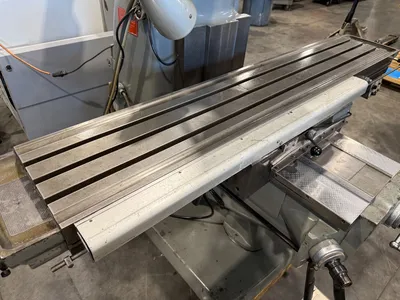

Working surface of table- 11” x 58”
Travels-
Longitudinal- 30”
Cross- 14-3/4”
Vertical (knee)- 16”
Minimum/Maximum throat distance- 10-5/8"/ 26-5/8"
Maximum table load capacity- 1,500 Lbs.

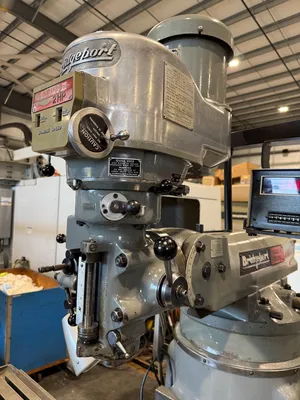

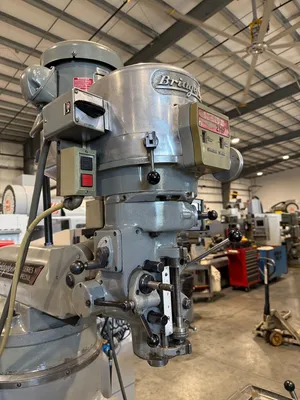

Spindle speeds, two ranges, infinitely variable- 50 to 4,200 R.P.M
Quill travel- 5”
Spindle Feed infinitely variable- 0.6 - 2.5 I.P.M.
Taper in spindle- R-8
Head tilts:
Left to right- 90°
Front to back- 30°
Ram swivel- 360°
Ram travel- 16”

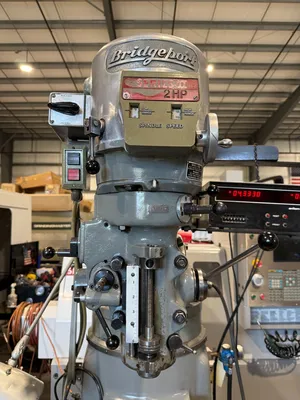

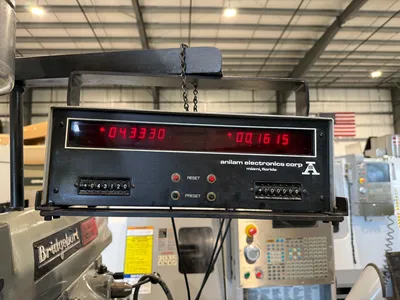

ANILAM 2 Axis DRO

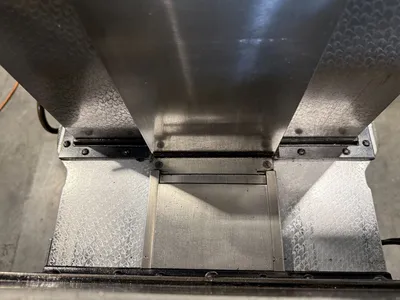

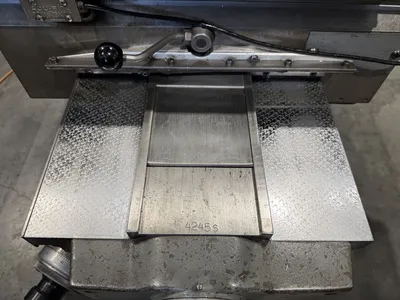

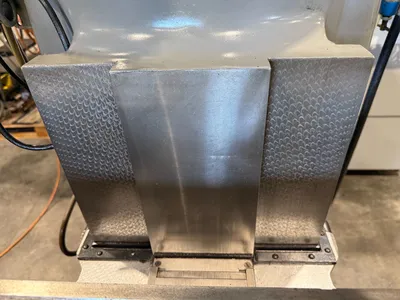

Chrome plated saddle and knee ways
BIJUR Automatic one-shot lubrication of ways and lead screws
Work light
2 H.P. 3/60/230-460 volt spindle motor and electrical controls
Machine is wired for 230 Volt / 3 Phase / 60 H.Z.
Machine weight- 5,000 Lbs.
Machine dimensions- 86” L x 84’’ W x 94’’ H
Machine location- F.O.B. Sarasota, Florida
