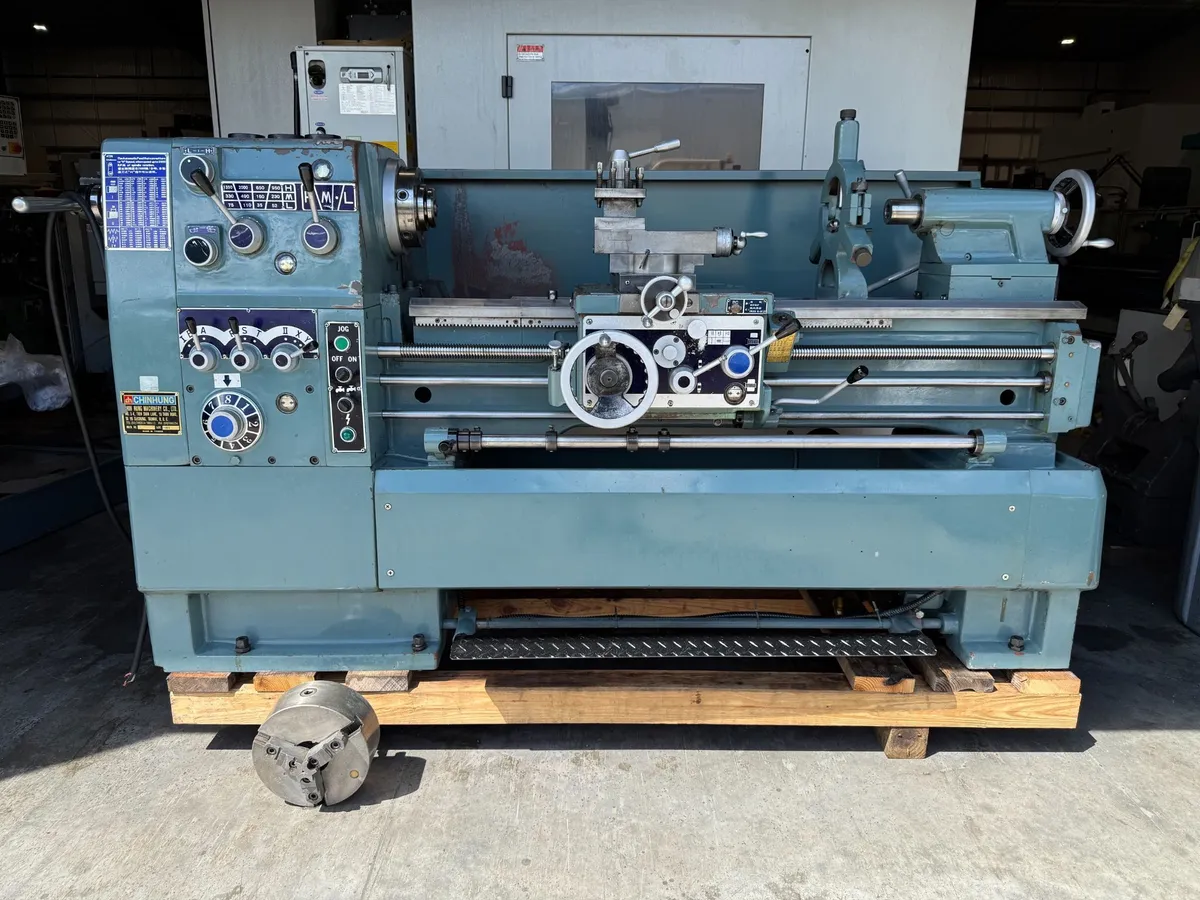

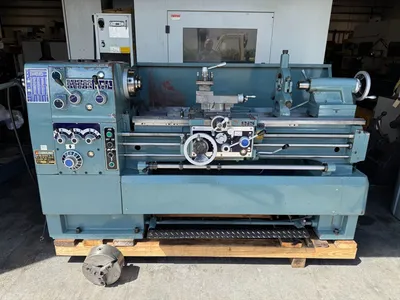

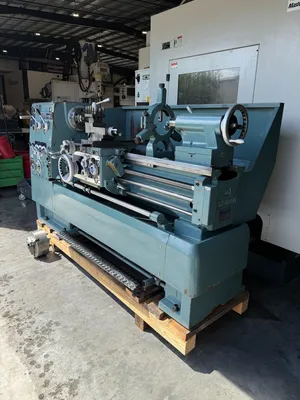

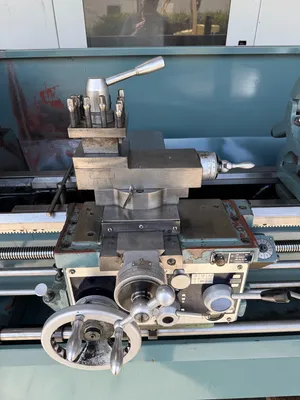

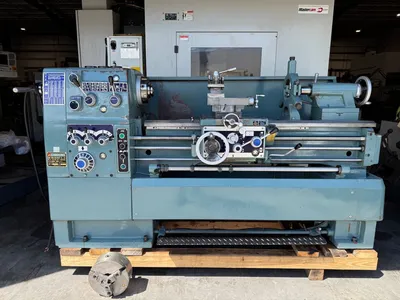

KINGSTON HJ-1630 17”/24” x 40”cc Gap Lathe 1994’ #8482

KINGSTON HJ-1630 17”/24” x 40”cc Gap Lathe 1994’ #8482
Reference #8482
Model # HJ-1630
Serial # N/A
Year of manufacture- 1994’
Swing over bed- 17”

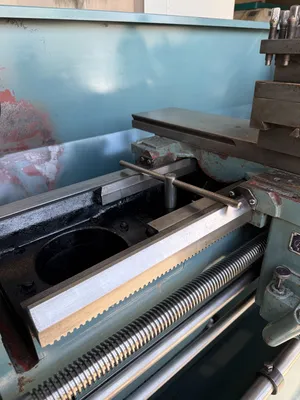

Swing in gap- 24”
Swing over cross slide- 10.6”
Distance between centers- 40”
Bedway width-11.75”
Spindle bore- 3.07”
Spindel taper- D1-6
Spindle speeds- (12) 35 – 2,000 Lbs.
Longitudinal feeds- 0.0012” – 0.039”
Cross feeds- 0.0004” – 0.0117”
Inch threads- (44) 2 – 72 T.P.I.
Metric threads- (39) 0.2 – 14mm
Copound travel- 5.7”
Cross slide travel- 10.4”
Tailstock quill travel- 6.7”
Tailstock quill taper- #4 morse
