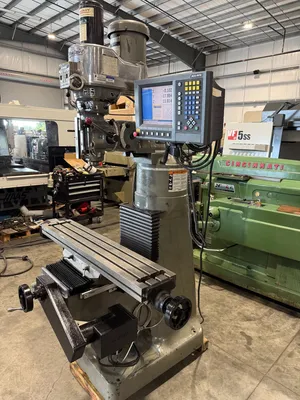

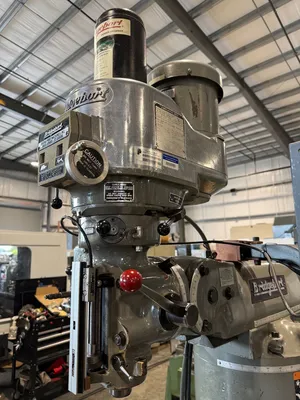

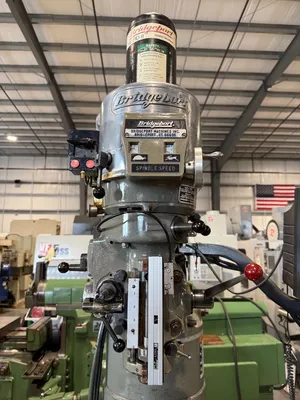

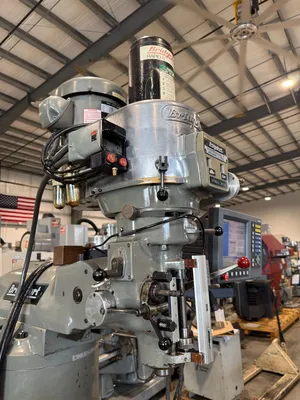

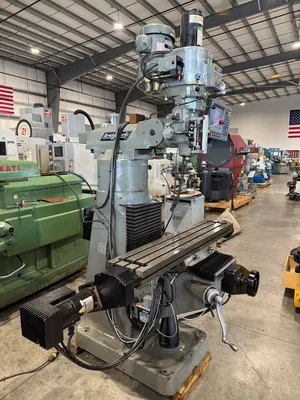

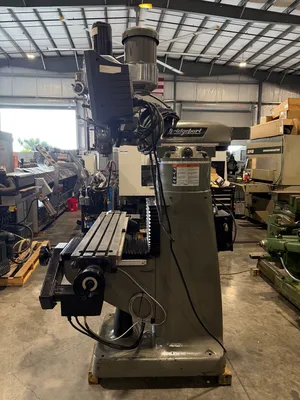

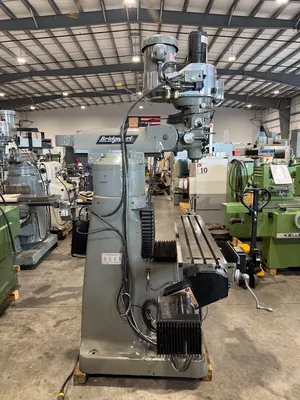

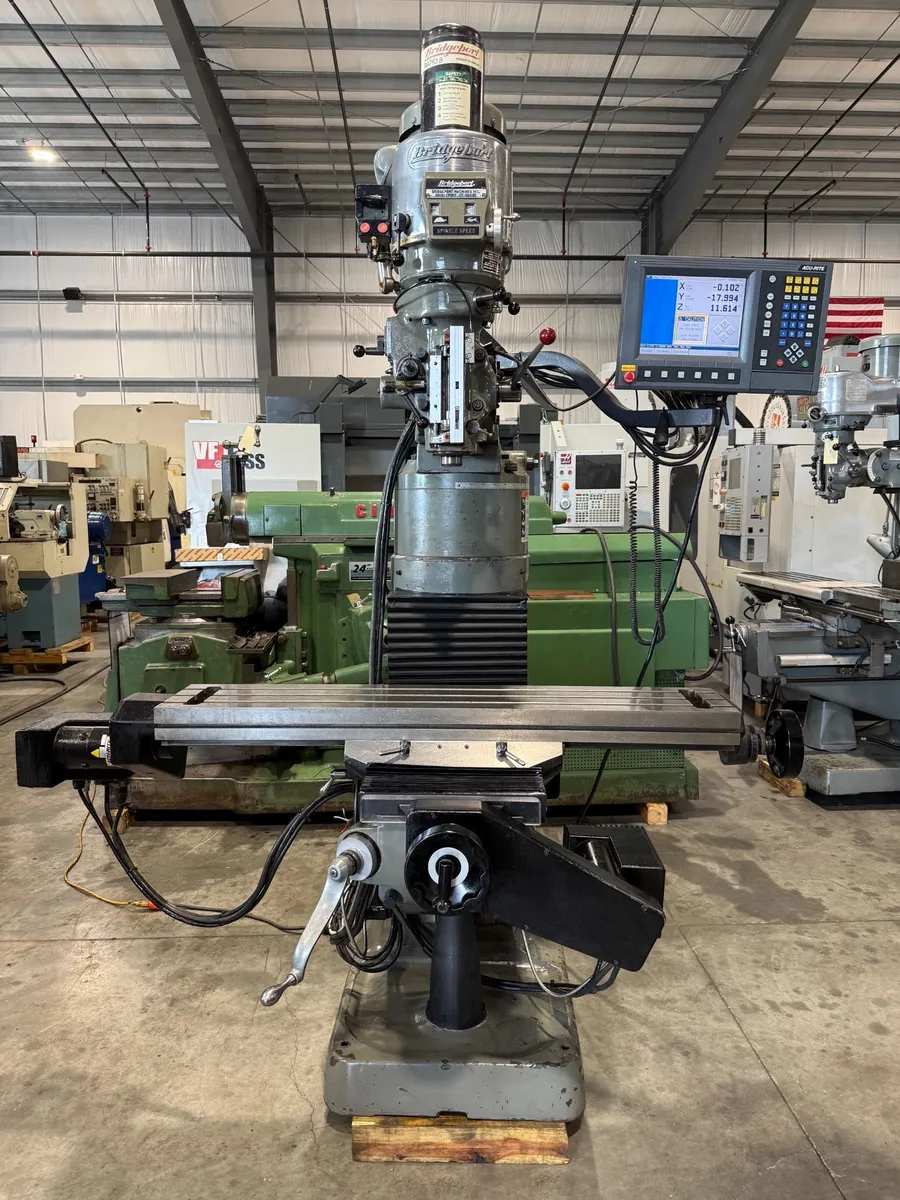

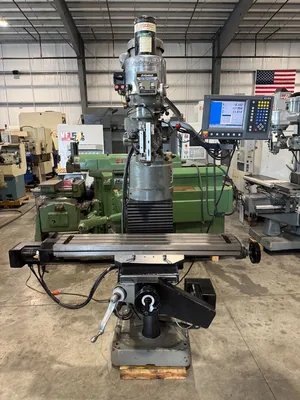

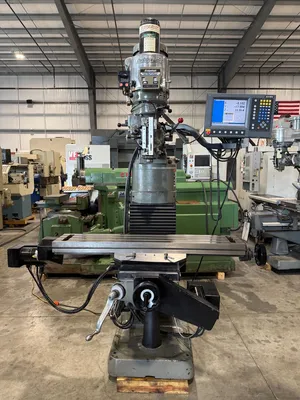

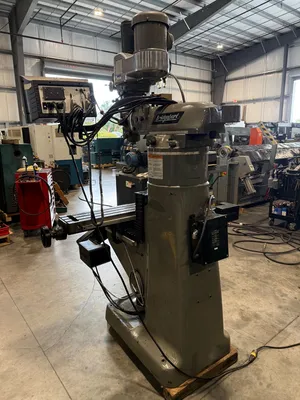

BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1987’ # 8510
Have one to sell?
ConditionUsed
1 available
$14,500.00 USD
BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1987’ # 8510
BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1987’ # 8510
Reference # 8510
Model # Series 1
Serial # 248467
Year of manufacture- 1987’

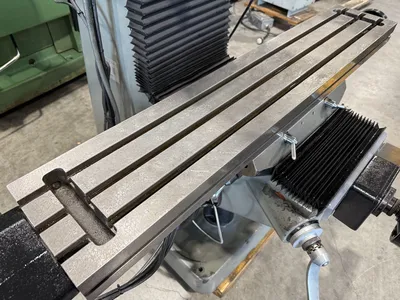

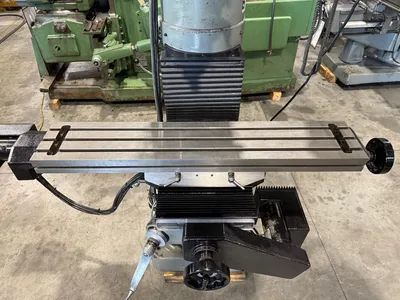

Table working surface- 9” x 48”
Number of t-slots- (3)
Longitudinal travel- 26”
Cross travel- 12”
Vertical, knee travel- 16”
Quill travel- 5”
Maximum/Minimum distance, spindle nose to table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges-60-4,200 R.P.M
Spindle taper- R-8
ACU-RITE MILLPOWER CNC CONTROL two-axis CNC/three-axis digital readout, RS-232 port
Three-axis digital readout during manual operations
Ballscrews installed in the table and saddle
Pneumatic drawbar
Factory column riser
Automatic lubrication system
2 H.P. 3/60/230 spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2000 Lbs.
Machine dimensions- 76” L x 57” W x 83’’ H
Machine location- F.O.B. Sarasota, Florida
BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1987’ # 8510
Imperial
| Dimensions | 76” L x 57” W x 83’’ H |
| Weight | 2000 Lbs. |
BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1987’ # 8510
Reference # 8510
Model # Series 1
Serial # 248467
Year of manufacture- 1987’
Table working surface- 9” x 48”
Number of t-slots- (3)
Longitudinal travel- 26”
Cross travel- 12”
Vertical, knee travel- 16”
Quill travel- 5”
Maximum/Minimum distance, spindle nose to table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges-60-4,200 R.P.M
Spindle taper- R-8
ACU-RITE MILLPOWER CNC CONTROL two-axis CNC/three-axis digital readout, RS-232 port
Three-axis digital readout during manual operations
Ballscrews installed in the table and saddle
Pneumatic drawbar
Factory column riser
Automatic lubrication system
2 H.P. 3/60/230 spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2000 Lbs.
Machine dimensions- 76” L x 57” W x 83’’ H
Machine location- F.O.B. Sarasota, Florida
