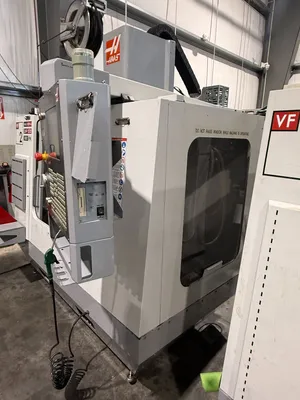

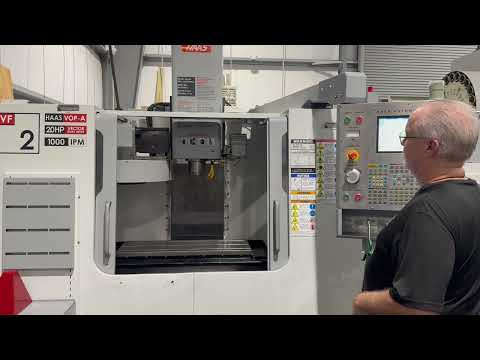

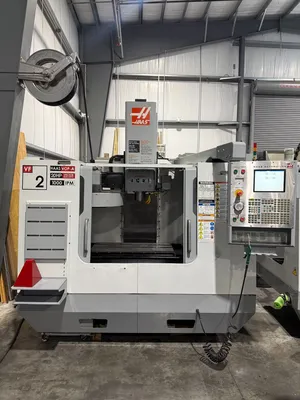

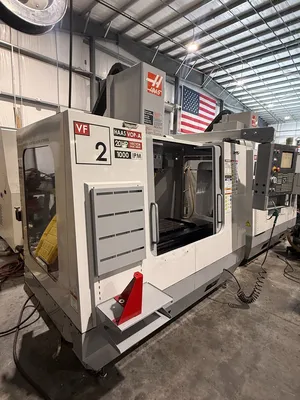

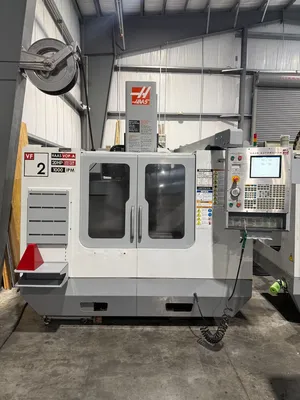

HAAS VF-2D CNC Vertical Machining Center 20 H.P. 2005’ USA #8513
Have one to sell?
ConditionUsed
1 available
$24,500.00 USD
HAAS VF-2D CNC Vertical Machining Center 20 H.P. 2005’ USA #8513
HAAS VF-2D CNC Vertical Machining Center 20 H.P. 2005’ USA #8513
Reference #8513
Model # VF-2D

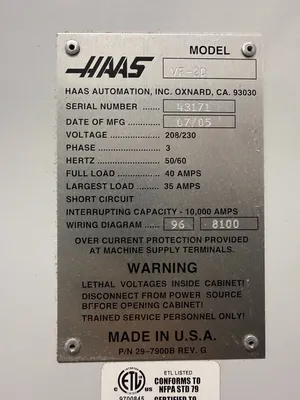

Serial # 43171
Year of manufacture- 7/ 2005’

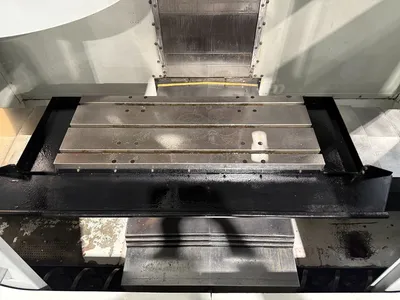

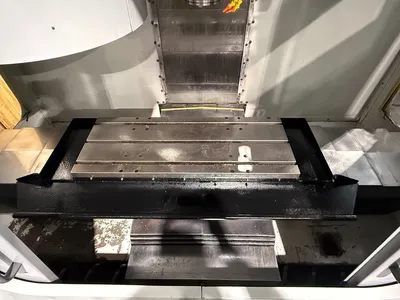

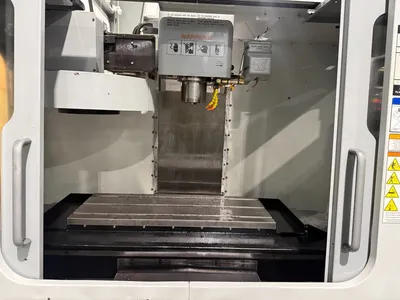

Table working surface- 14” x 36”
Table travel, X-axis (longitudinal)- 30”
Table travel, Y-axis (cross)- 16’’
Vertical column travel (Z-axis)- 20’’
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle taper- CAT-40
Spindle speeds- 0 – 7500 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
Brushless servos on all axis

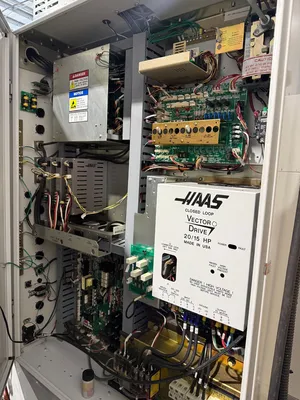

HAAS CNC Control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code,

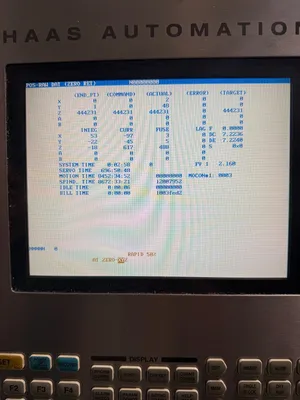

Machine hours -Servo Time 696 Motion Time 8,452 , Spindle Time 8,672
Programmable coolant nozzle

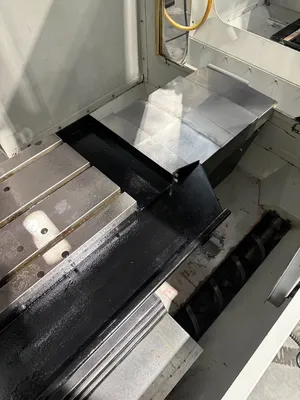

Telescopic way covers
Air gun
(6) Leveling pads
BIJUR automatic lubrication system

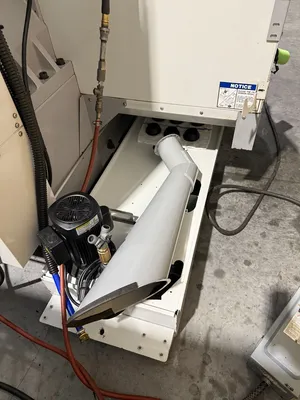

External coolant tank & Coolant pump

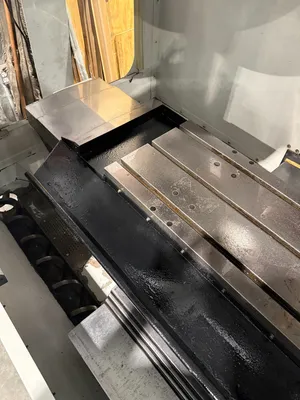

Chip auger
20 H.P. spindle drive motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 7500 Lbs.
Machine dimensions- 88" L-R x 90" F-B x 96" H
Machine location- F.O.B. Sarasota, Florida
HAAS VF-2D CNC Vertical Machining Center 20 H.P. 2005’ USA #8513
HAAS VF-2D CNC Vertical Machining Center 20 H.P. 2005’ USA #8513
Reference #8513
Model # VF-2D
Serial # 43171
Year of manufacture- 7/ 2005’
Table working surface- 14” x 36”
Table travel, X-axis (longitudinal)- 30”
Table travel, Y-axis (cross)- 16’’
Vertical column travel (Z-axis)- 20’’
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle taper- CAT-40
Spindle speeds- 0 – 7500 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
Brushless servos on all axis
HAAS CNC Control
Control options- Rigid Tapping, DNC, M19 Spindle Orient, Quick Code,
Machine hours -Servo Time 696 Motion Time 8,452 , Spindle Time 8,672
Programmable coolant nozzle
Telescopic way covers
Air gun
(6) Leveling pads
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Chip auger
20 H.P. spindle drive motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 7500 Lbs.
Machine dimensions- 88" L-R x 90" F-B x 96" H
Machine location- F.O.B. Sarasota, Florida
